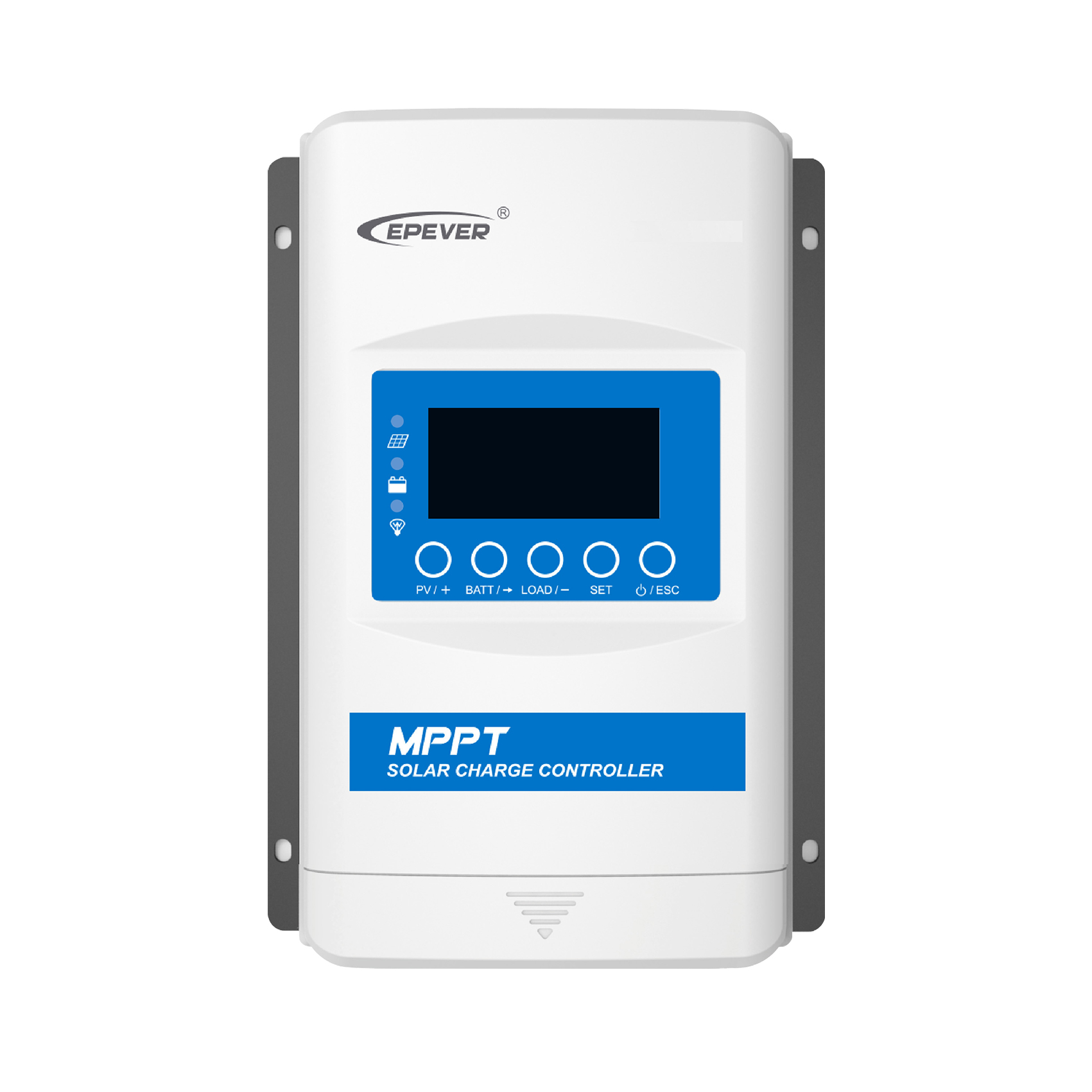

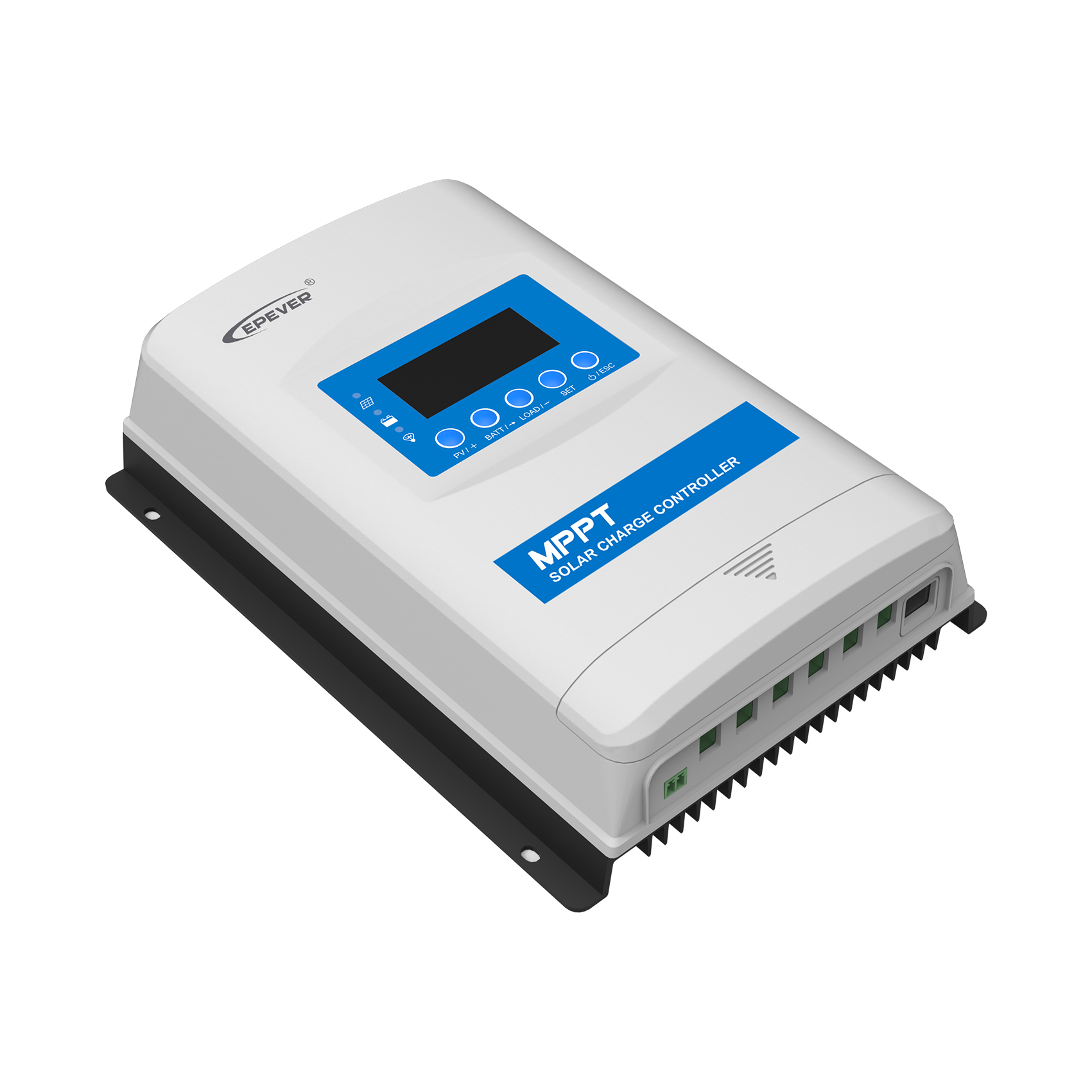

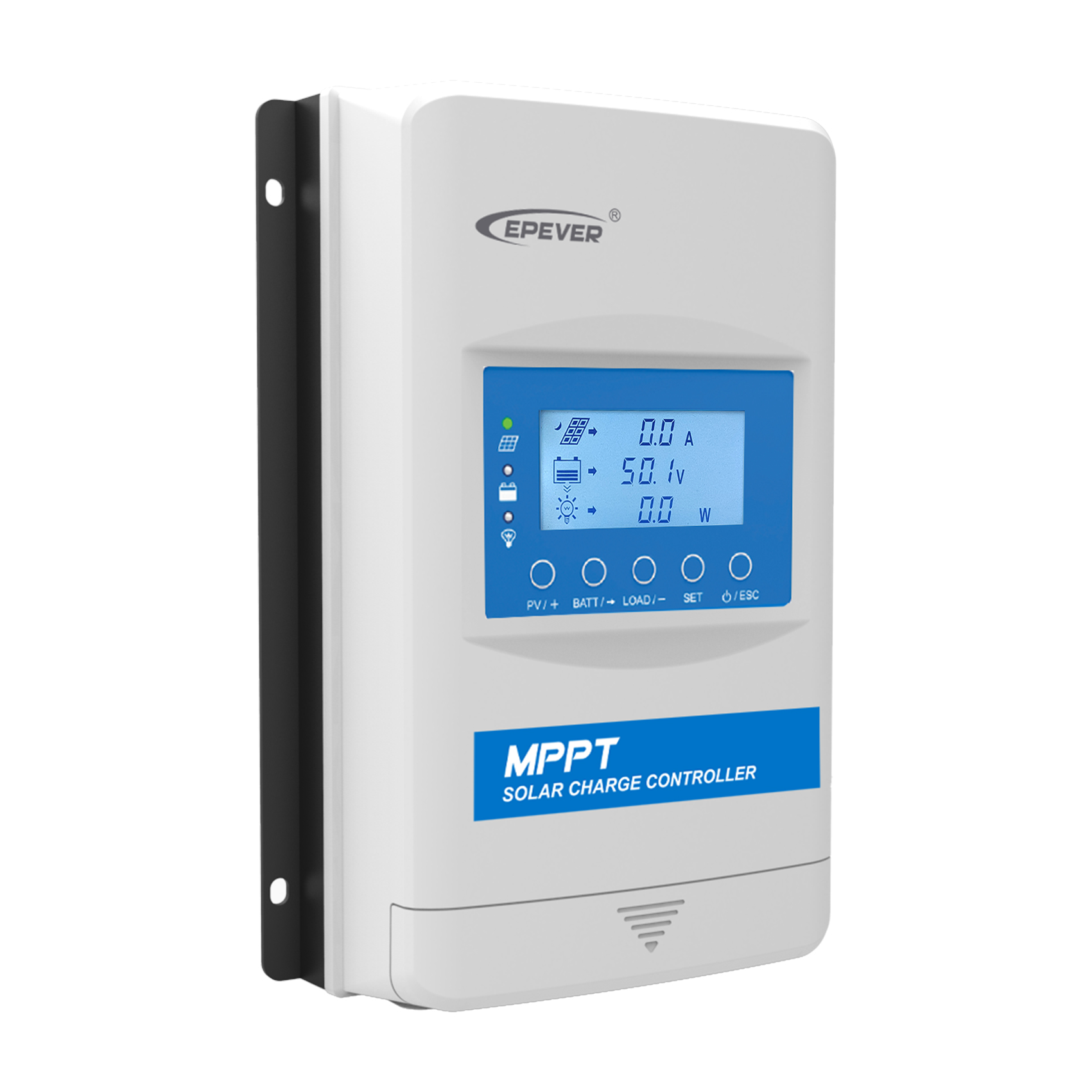

XTRA-N G3 Series (10~40A) MPPT Charge Controller
Introducing the XTRA-N G3/XTRA-N G3 BLE series controllers—a cutting-edge solar charge control solution. With a built-in Bluetooth module for easy mobile app parameter control, advanced MPPT algorithms for efficient energy tracking, and features like independent voltage regulation and comprehensive electronic protections, these controllers provide a reliable and durable solution for a variety of solar applications, from RVs to household systems. Upgrade your solar experience with the XTRA-N G3 series.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Maximum Charging Current
Max PV Input Power
Max PV Open Circuit Voltage
Built-In Bluetooth
System Nominal Voltage
Maximum Discharge Current
Select every option to reveal the matching model.
Specifications
Model: XTRA4415N G3 BLE
Electrical Parameters
- Battery Rated Voltage
- 12/24/48VDC Auto
- Rated Charging Current
- 40A
- Rated Discharging Current
- 40A
- Controller Work Voltage Range
- 8~62V
- PV Maximum Open-circuit Voltage
- 150V (at minimum operating environment temperature), 138V (at 25°C environment temperature)
- MPPT Voltage Range
- (Battery voltage+2V)~108V
- Rated Charging Power
- 520W/12V, 1040W/24V, 1560W/36V, 2080W/48V
- Maximum Conversion Efficiency
- 98.50%
- Maximum Load Efficiency
- 97.20%
- Static Losses(Enable the com.port)
- ≤14mA(12V), ≤9mA(24V) , ≤8mA(36V) +<7mA(48V)
- Static Losses(Disable the com.port)
- ≤8mA(12V), ≤5mA(24V), ≤5mA(36V), ≤5mA(48V)
- Discharge-circuit Voltage Drop
- ≤0.23V
- Temperature Compensation
- -3mV/°C/2V (Default)
- Grounding Type
- Common negative
- RS485 Port
- 5VDC/200mA(RJ45)
- LCD Backlight Time
- Default: 60s, Range: 0-9995(0S: the backlight is ON all the time)
Mechanical Parameters
- Dimension (LxWxH)
- 255x189x83.2mm
- Mounting Size
- 200x180mm
- Mounting Hole Size
- Φ5mm
- Terminal
- 6AWG(16mm²)
- Recommended Wire Size
- 6AWG(16mm²)
- Net Weight
- 2.60kg
- Work Temperature Range
- -25°C~45°C
- Storage Temperature Range
- -20°C~70°C
- Relative Humidity
- ≤95％, N.C.
- Enclosure
- IP33 (3-protection against solid objects: protected against solid objects over 2.5mm. 3-protected against sprays to 60° from the vertical.
- Pollution Degree
- PD2
Highlights
- High quality and low failure rate components of ST or IR to ensure the service life
- Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
- Advanced MPPT control algorithm to minimize the lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power point
- Wider MPP(maximum power point) running voltage to optimize PV utilization
- Support multi battery types including lithium batteries
- Equipped with a stable self-activation function for the lithium battery
- Set the battery voltage parameters on the LCD
- Battery temperature compensation
- Limit the charging power & charging current to no higher than the rated value
- Real-time energy statistics function
- Charging power reduction automatically for over-temperature
- Built-in Bluetooth to adjust settings through EPEVER APP
- RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
- Setting parameters via the PC software, APP, or remote meter
- Constant voltage output function
- Comprehensive electronic protections
- Multiple load work modes
- Dustproof and waterproof design with IP33 enclosure
- Low self-consumption, lower than 10mA
- Operation at full load without charging power reduced in the working temperature range
