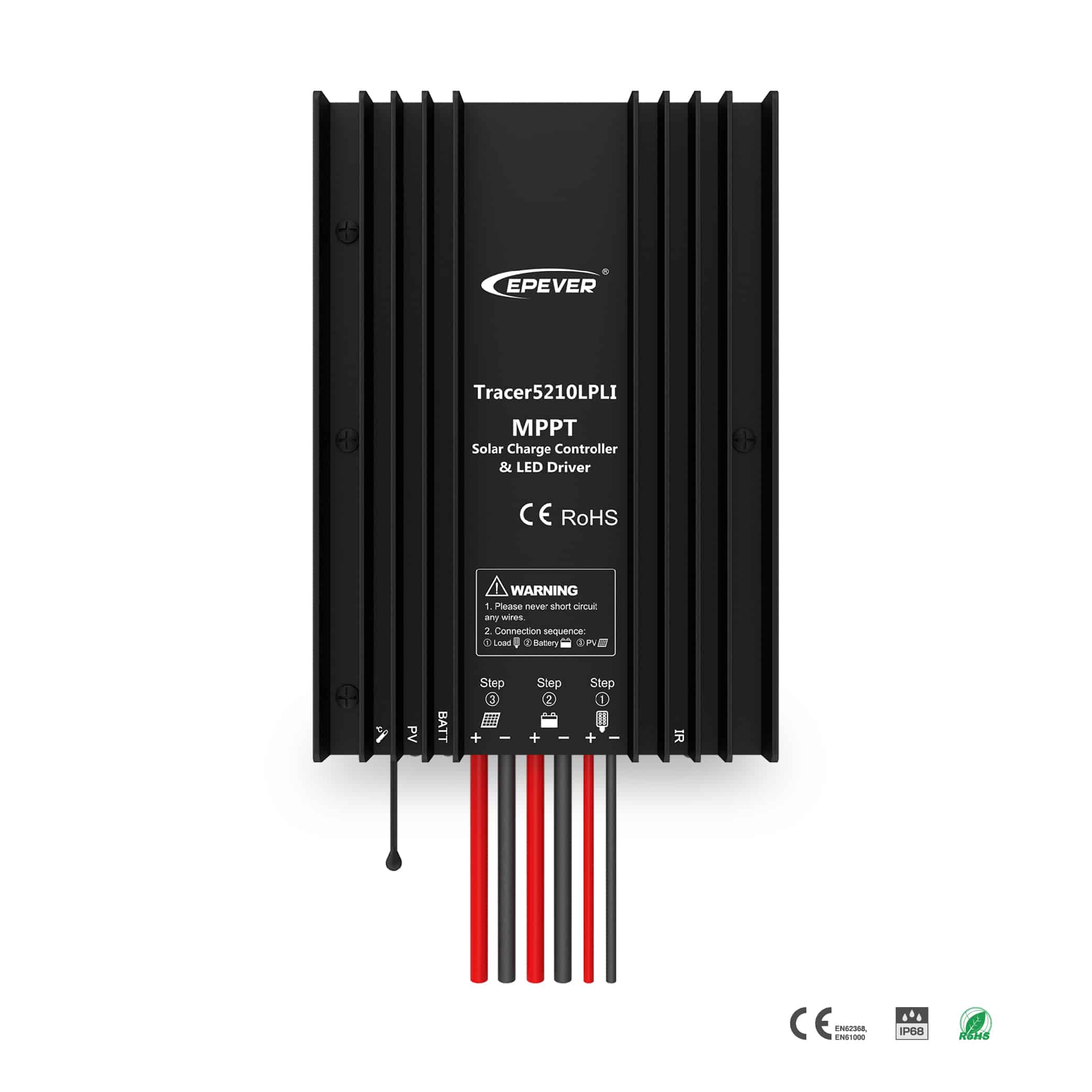

Tracer LPLI Series(10~20A) MPPT Solar Controller & LED Driver
Tracer-LPLI series MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit. It has multiple load control modes which are ideal for various solar LED Lighting applications, especially when a dimming function is needed. This series adopts the advanced MPPT (Maximum Power Point Tracking) charging methods which will result up to 30% charging efficiency increase compared with the PWM charge controllers.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Max PV Input Power
Max PV Open Circuit Voltage
Maximum Output Power
Maximum PV Charging Current
System Nominal Voltage
Select every option to reveal the matching model.
Specifications
Model: Tracer1305LPLI
Specifications
- Nominal system voltage
- 12VDC
- Battery input voltage range
- 8.5～16VDC
- Rated charge current
- 10A/12V
- Rated charge power
- 130W/12V
- Max. PV open circuit voltage
- 50V (Min. Temp.) 45V(25℃)
- MPP voltage range
- ( Battery voltage+2V)～36V
- Max. output Current
- 3.3A
- Max. output power
- 100W
- Output voltage range
- ( Max. battery voltage+2V)～46V
- Load open circuit voltage
- 46V
- Load over voltage protection
- 50V
- Maximum output efficiency
- 96%
- Output current control accuracy
- ≤2%
- Battery type
- Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery:LiFePO4/Li-NiCoMn/User
- Lead-acid
- Equalize Charging Voltage
- Boost charging voltage
- Sealed:14.4V; Gel:14.2V; Flooded:14.6V; User:9-17V(24Vsystem×2)
- Float charging voltage
- Sealed/Gel/Flooded:13.8V; User:9-17V(24Vsystem×2)
- Lithium
- Boost Charging Voltage
- Low voltage reconnect voltage
- LiFePO4(4s):12.8V; Li-NiCoMn(3s):10.5V; User:9-17V(24Vsystem×2)
- Low voltage disconnect voltage
- LiFePO4(4s):11.1V; Li-NiCoMn(3s):9.3V; User:9-17V(24Vsystem×2)
- Self-consumption
- ≤15mA/12V; ≤22mA/24V
- Communication
- IR communication
- Work temperature range
- -40℃～+60℃
- Enclosure
- IP68(1.5m,72h)
- Dimension (L x W x H)
- 124×89×30mm
- Mounting hole size
- Φ3.5mm
- Mounting size (L x W)
- 88×76mm
- Power cable
- PV/BAT:14AWG(2.5mm2) LOAD:18AWG(1.0mm2)
- Net weight
- 0.52kg
Highlights
- Infrared wireless communication design
- MPPT charging mode
- Support lead-acid and lithium-ion batteries
- Lithium battery self-activating function
- Advanced intelligent power derating function
- Multiple load control modes
- Automatic load test feature during installation
- Extensive electronic protection
- IP68 protection class (1.5 meters, 72h)
