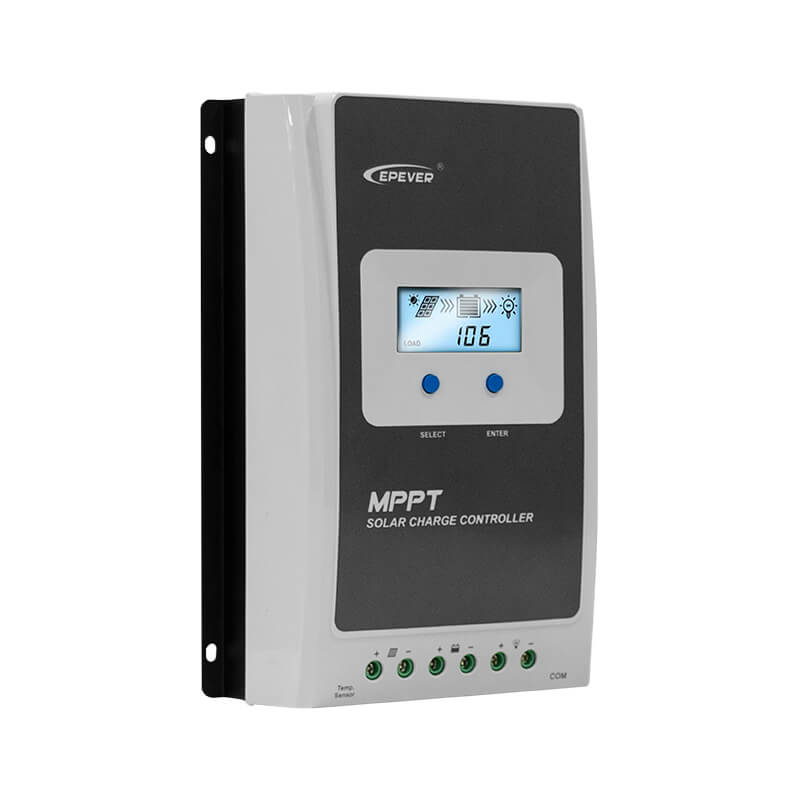

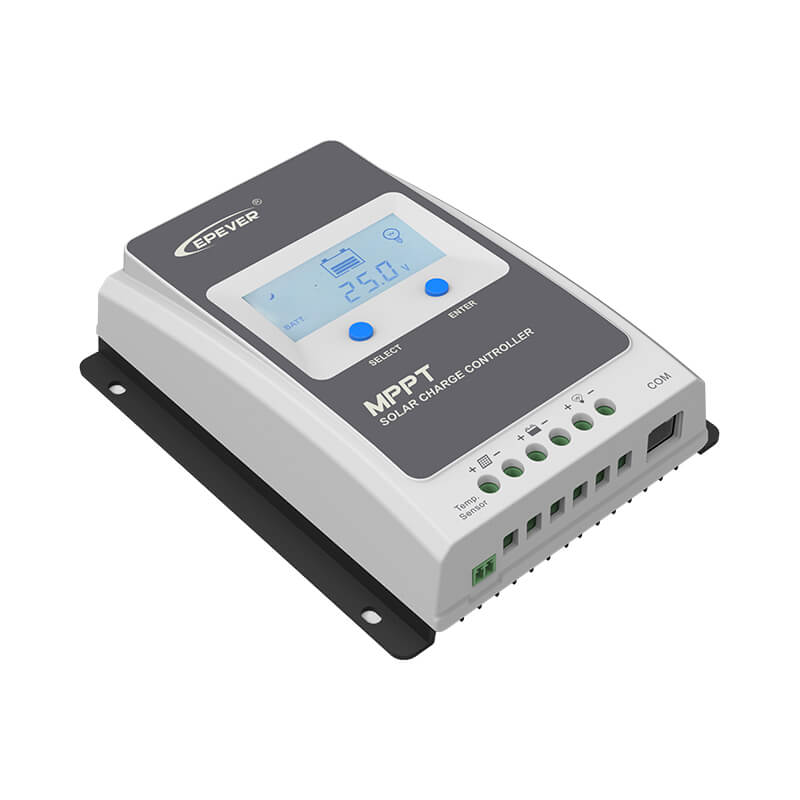

Tracer AN G3 Series (10~40A) MPPT Charge Controller

The Tracer-AN G3 MPPT Solar Controller is the next step in solar management technology, providing substantial improvements over previous models. As a cutting-edge solar power controller, it ensures maximum energy harvest through its MPPT technology, adapting to various solar conditions with precision. The controller supports a wide range of battery types and offers enhanced safety features, including overcharge protection and automatic system voltage recognition, which enhances its versatility in different solar power setups. New to the G3 series are its expanded communication features, allowing for seamless integration with monitoring devices and software, ensuring you have comprehensive control and visibility over your solar energy system. With its robust construction and user-friendly interface, the Tracer-AN G3 empowers both novice users and experienced professionals to optimize their solar installations efficiently. Whether you're aiming to increase the sustainability of your home or optimize a large-scale solar operation, the Tracer-AN G3 brings high efficiency and smart technology directly to your fingertips.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant
Tracer_AN_G3 MPPT Charge_Controller (1)

Configure your model

Max PV Input Power
Max PV Open Circuit Voltage
Maximum PV Charging Current
System Nominal Voltage
Maximum Discharge Current

Select every option to reveal the matching model.

Specifications

Model: Tracer1206AN G3
Environmental Parameters
Storage Temperature Range
-20℃~+70℃
Relative Humidity
< 95% (N.C.)
Dimension (L x W x H)
172x139x44mm
Mounting Size (L x W)
124x130mm
Mounting Hole Size
Φ5mm
Terminal
12AWG (4mm²)
Work Temperature Range
-25℃~+45℃(100% loads working)
Enclosure
IP30
Net Weight
0.57kg
Recommended Wire Size
12AWG (4mm²)
Electrical Parameters
PV Max. Open-circuit Voltage
60V (At minimum operating environment temperature); 46V (At 25℃)
Grounding Type
Common negative
RS485 Port
5VDC/200mA(RJ45)
LCD Backlight Time
Default:60S, Range:0~999S (0 seconds: the backlight is ON all the time)
Battery Rated Voltage
12/24VDC Auto-recognition
Rated Charging Current
10A
Rated Discharge Current
10A
Controller Work Voltage Range
8~31V
MPPT Voltage Range
(Battery voltage +2V)~36V
Rated Charging Power
130W/12V, 260W/24V
Static Losses
≤8mA(12V), ≤5mA(24V)
Discharge-circuit Voltage Drop
≤0.23V
Temperature Compensation
-3mV/℃/2V (Default)

Highlights

  • Constant voltage output function
  • Maximum DC/DC conversion efficiency of 98%
  • Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
  • Supports multi battery types including lithium batteries
  • Battery temperature compensation; Stable self-activation function
  • LCD screen for battery parameter setting
  • Comprehensive electronic protection
  • Self-consumption lower than 10mA
  • Multiple load work modes
  • Parameter setting via the PC software, APP, or remote meter
  • RS485 communication interface with optional 4G or Wi-Fi modules
