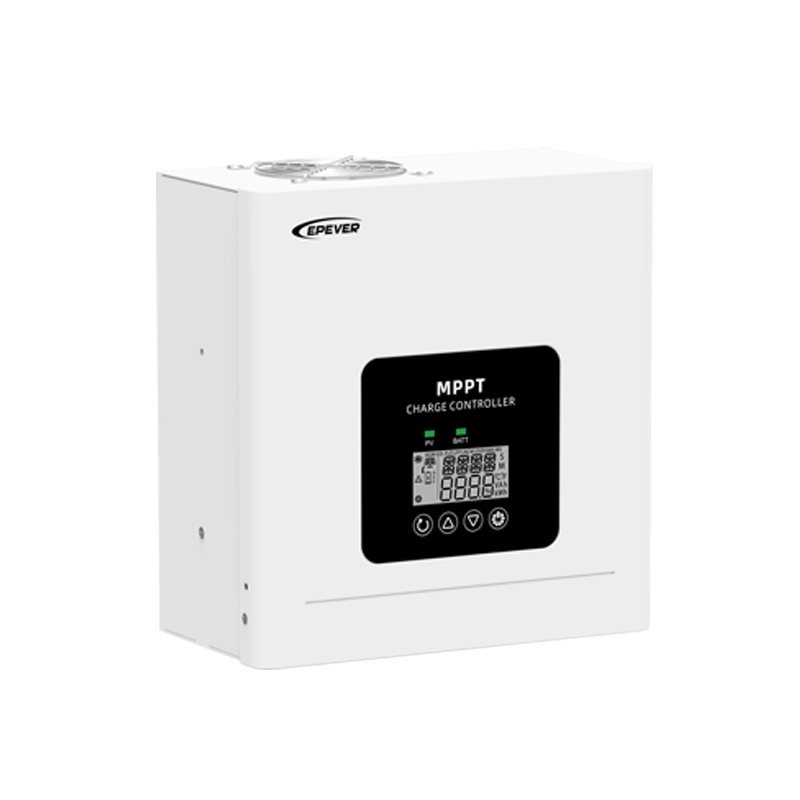

TEP Series (60~100A) MPPT Charge Controller
The TEP Series is a parallel MPPT controller designed for high-current solar charging up to 100A. It supports up to six units working together for flexible system expansion. With advanced MPPT tracking, high conversion efficiency, and strong compatibility with lithium and lead-acid batteries, it ensures stable performance across various applications. RS485 and CAN communication enable remote monitoring through WiFi, Bluetooth, or 4G modules, making the TEP Series ideal for off-grid, RV, and industrial energy systems.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Max PV Open Circuit Voltage
Rated Charging Current
Number Of Mppts
DC Load Output
Rated Charging Power
System Nominal Voltage
Select every option to reveal the matching model.
Specifications
Model: TEP10425
PV Input(DC)
- Max. Open-circuit Voltage
- 250V(@ lowest temperature), 225V(@ 25℃)
- MPPT Voltage Range
- (Battery voltage plus 2V, and > 20V) to 180V (@ 25 ℃)
Battery
- Battery Type
- AGM(Default) / GEL / FLD/ User
- Lithium Battery Type
- LFP / NCM / User
- Rated Voltage
- 12/24/48VDC or Auto
- Rated Charging Current
- 100A
- Rated Charging Power
- 1300W/ 2600W/ 5200W
- Temperature Compensate Coefficient
- -3mV/℃/2V(Default)
Controller
- Output Voltage Range
- 8V～62V
- Static Loss (Enabled Communication)
- 98mA/12V, 60mA/24V, 46mA/48V
- Static Loss (Disabled Communication)
- 48mA/12V, 25mA/24V, 14mA/48V
- Grounding
- Common negative grounding
- Communication Method
- 5VDC/200mA(RJ45)
Efficiency
- Tracking Efficiency
- ≥99.5%
- Max. Conversion Efficiency
- 98.4%
Environmental Parameters
- Operating Temperature
- -25℃～+60℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 5%～95%(N.C.)
- Altitude
- ＜5000m (＞2, 000m Derating)
- Ingress Protection
- IP20
Mechanical Parameters
- Dimensions (L x W x H)(mm)
- 231 x 298 x 119
- Mounting Dimensions (L x W)(mm)
- Φ8
- Weight (Kg)
- 5.3
- Recommended Cable Size
- 2AWG/35mm²
Others
- Certifications
- EN/IEC61000-6-2; EN/IEC61000-6-4; EN/IEC62109-1; IEC62321
Highlights
- Compatible with 12V/24V/48V systems; Charging current: 60A-100A

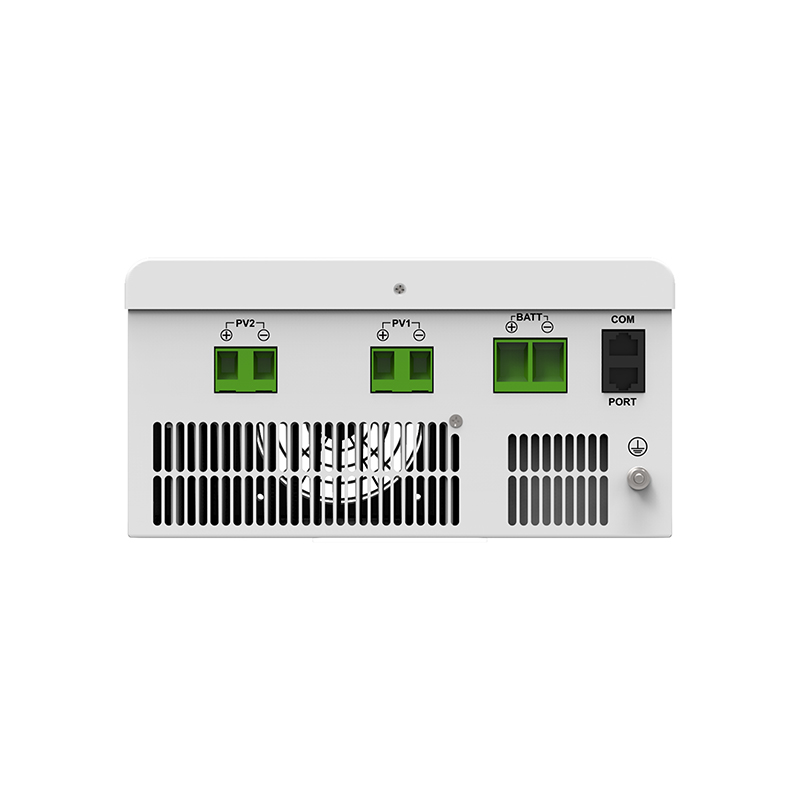

- Supports two PV inputs : Max. MPPT tracking efficiency: 99.5%; Max. Conversion efficiency: 98.5%
- Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
- No battery mode: Enables direct load supply with sufficient PV energy
- Built-in CAN parallel communication port; Max. 6-unit parallel operation (with/without battery)
- Built-in independent BMS communication port; Reliable battery charge/discharge management
- Isolated RS485: Optional Bluetooth, WiFi, TCP or 4G modules
- Real-time data recording, event logging, and power statistics function
- Compartment design for superior dust resistance
- Compact and lightweight for versatile installation
