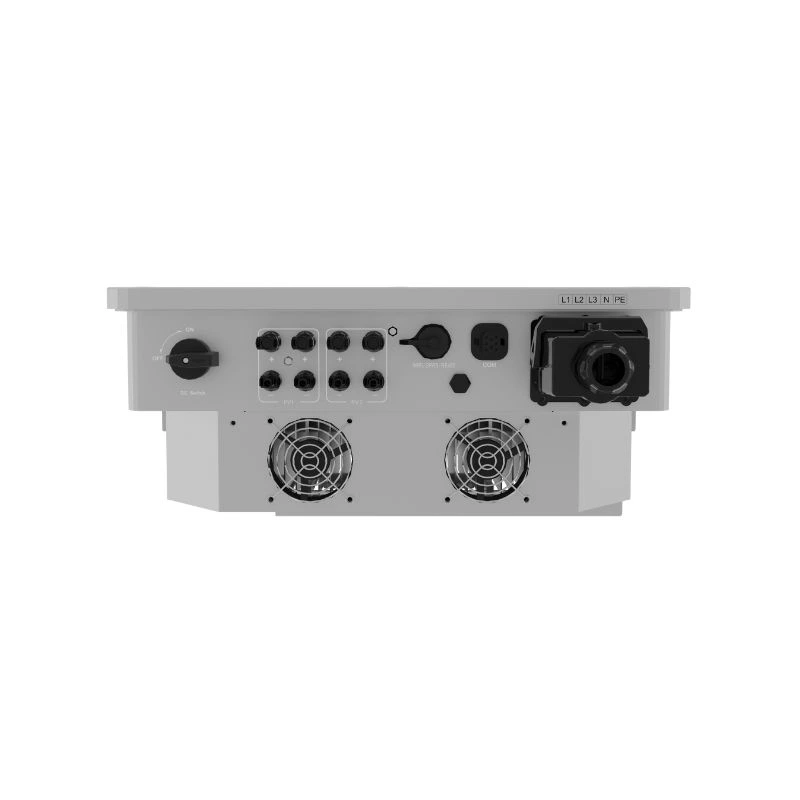

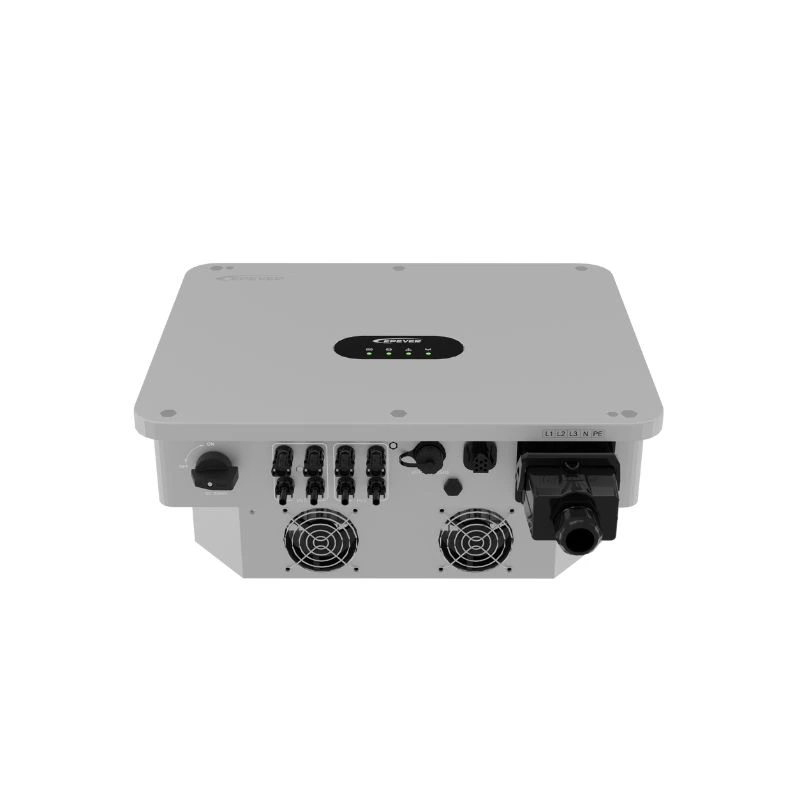

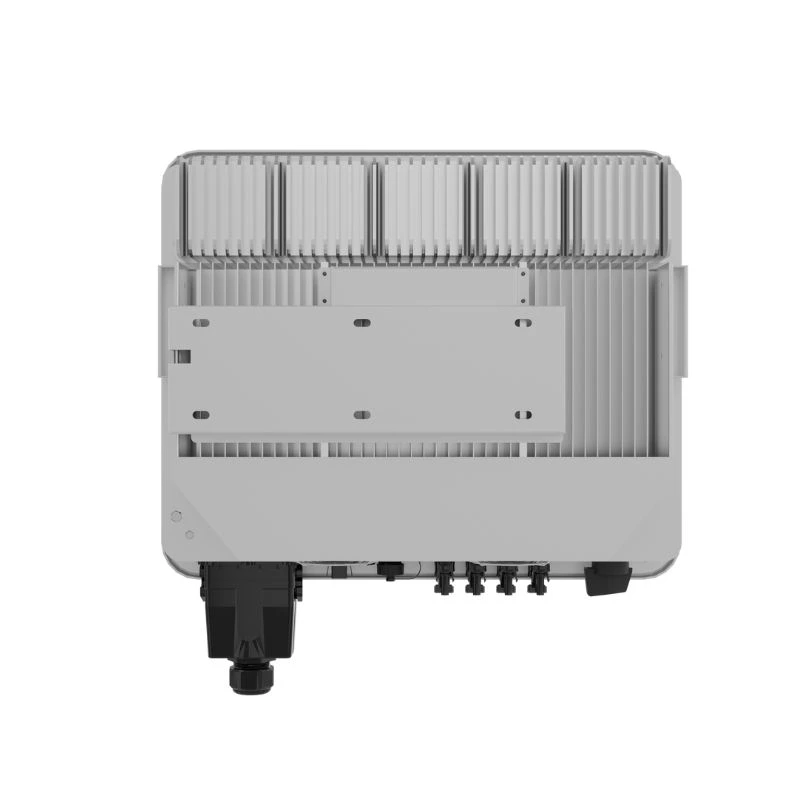

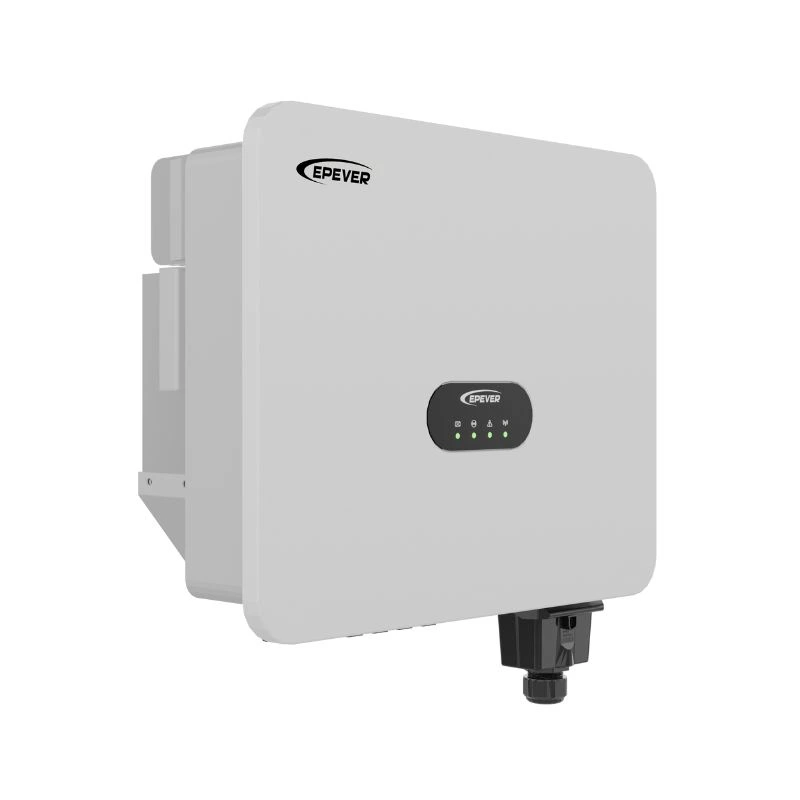

SPT Series 8-15kW On-Grid PV Inverter (Americas Edition)
The SPT Series 8–15kW (Americas Edition) is a high-performance dual MPPT grid tie inverter designed for residential and small commercial PV systems. With up to 98.2% efficiency, IP65-rated protection, and advanced safety features, it ensures stable three-phase power in various environments. Easy installation, built-in DC/AC surge protection, and optional remote monitoring make it a dependable choice for grid-connected solar projects.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Rated Grid Voltage
Rated AC Output Power (on-Grid)
Max PV Input Voltage
MPPT Voltage Range
Max Input Current
Max PV Input Power
Grid Type
Select every option to reveal the matching model.
Specifications
Model: SPT15KTL-AM
PV Input(DC)
- Max. Input Power
- 22,500W
- Max. Input Voltage
- 800V
- Start-up Voltage
- 250V
- Rated Input Voltage
- 400V
- Max. Input Current per MPPT
- 32A (16A × 2)
- Max. Short-Circuit Current per MPPT
- 40A
- MPPT Voltage Range
- 180 - 760V
- Number of MPPTs
- 2
- Number of Strings per MPPT
- 2
AC Output
- Rated Output Power
- 15,000W
- Max.Output Apparent Power
- 15,000VA
- Rated Output Current
- 41.7A/39.4A/36A
- Max. Output Current
- 41.8A
- Rated Grid Voltage
- 120/208V, 127/220V, 139/240V
- Rated Grid Frequency
- 50Hz/60Hz
- THDi
- < 3%
- Power Factor
- ≈ 1 (Adjustable from 0.8 leading to 0.8 lagging)
Efficiency
- Max. Efficiency
- 98.20%
- European Efficiency
- 97.50%
Protection
- Basic Protection
- PV reverse polarity AC output overvoltage Anti-islanding PV insulation resistance AC output overcurrent Grid monitoring PV string current monitoring AC output short circuit Residual current (RCD) detection
- AFCI
- Optional
- DC Switch
- Integrated
- SPD
- DC Type ll / AC Type llI
Environmental Parameters
- Operating Temperature
- -30°C to 60°C
- Relative Humidity
- 0 - 100%
- Altitude
- 4,000m(> 2,000m Derating)
- Ingress Protection
- IP65
Mechanical Parameters
- Dimensions (L × W × H)(mm)
- 520 × 430 × 210
- Weight (Kg)
- 25
Others
- Self-Consumption (Night)
- < 1W
- Topology
- Transformer-less
- Cooling Method
- Intelligent fan
- Display
- LED/WIFI+APP
- PV input Connector
- H4/MC4(Optional)
- AC output Connector
- OT connector
- Certifications
- IEC62109, IEC61727, IEC62116
Highlights
- High yield with up to 110% rated power
- Maximum conversion efficiency 98.2%
- 2 MPPTs, Max. PV input voltage: 800VDC
- Input current per MPPT: 32A
- IP65 protection for outdoor use
- Built-in DC Type ll /AC Type lll SPD
- Optional AFCI function
- Optional zero export function
- Optional LCD display
- Standard USB communication port
- WiFi / GPRS (optional)
