Model: PAL-ADP-50AN

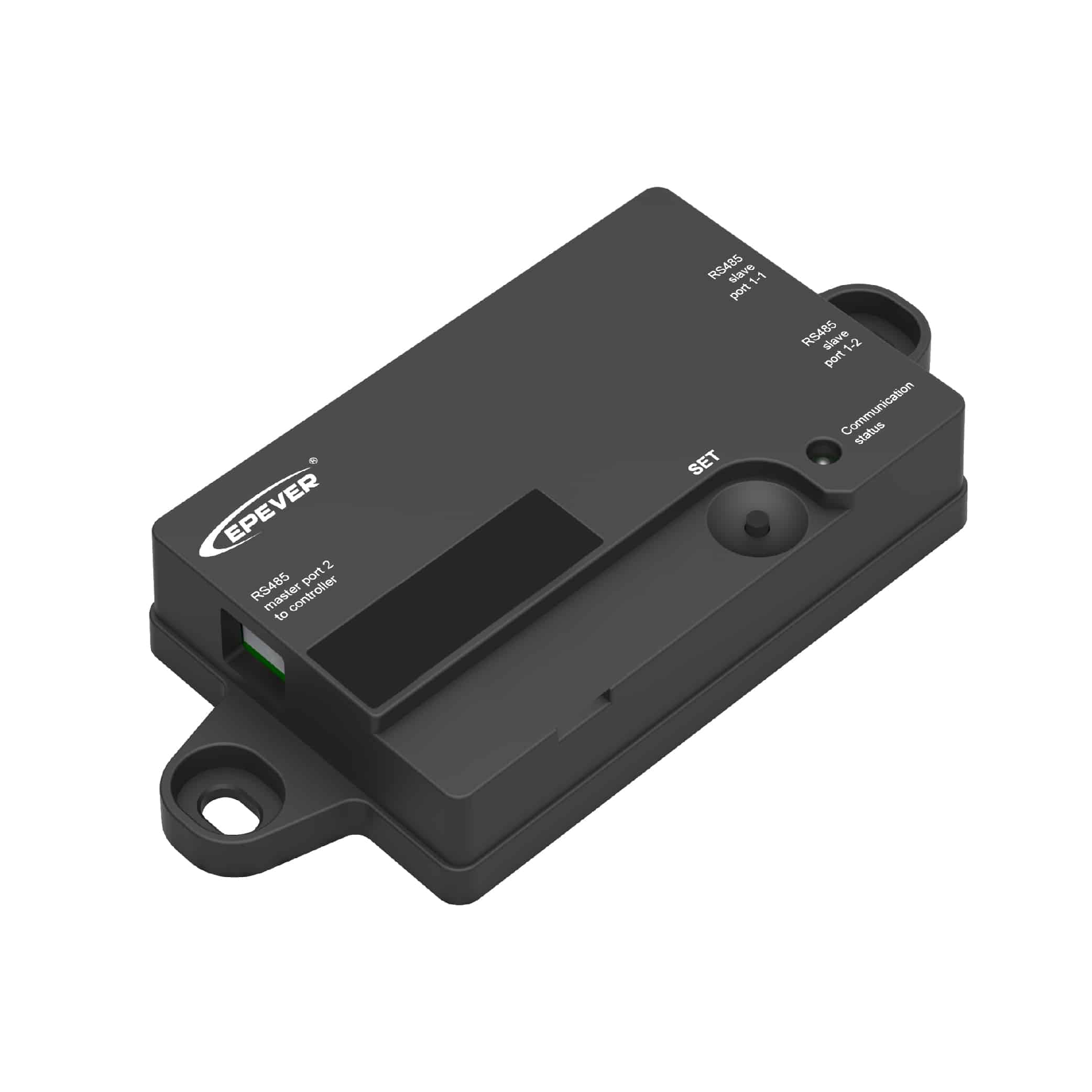

PAL-ADP-50AN Parallel Adapter
PAL-ADP-50AN
The PAL-ADP-50AN is a parallel adapter for adjusting the charging current of multiple controllers connected to the battery in parallel, which monitors the charging and operational status in real-time. The adapter automatically changes the controllers' charging and operational status according to the battery level to prolong the controller lifetime.
- 2-year warranty
- Worldwide support
- Certified & compliant
PAL-ADP-50AN
Select Model
BcNo: PAL-ADP-50AN
Request Price
active
Specifications
Model: PAL-ADP-50AN
Specifications
- Apply to model
- Tracer AN(50-100A) series solar controller
- Input Voltage
- 5VDC(Directly provided by the controller)
- Overall dimension
- 151.5*69.9*25.7mm
- Mounting dimension
- 133.4mm
- Mounting hole size
- Φ6.5
- Working temperature
- -35~55℃
- Enclosure
- IP30
- Weight
- 30g
- Operation power consumption
- 0.25W
- Serial port baud rate
- 9600 115200(Default)
Highlights
- Consistent control parameters of multiple controllers
- Current sharing by intelligently adjust each controller's charging current
- Support up to 6 controllers in parallel
- Support standard Modbus communication protocol
- External remote monitor units by the RS485 communication bus
- One button to set the communication baud rate 9600/115200
- LED indicating working status
