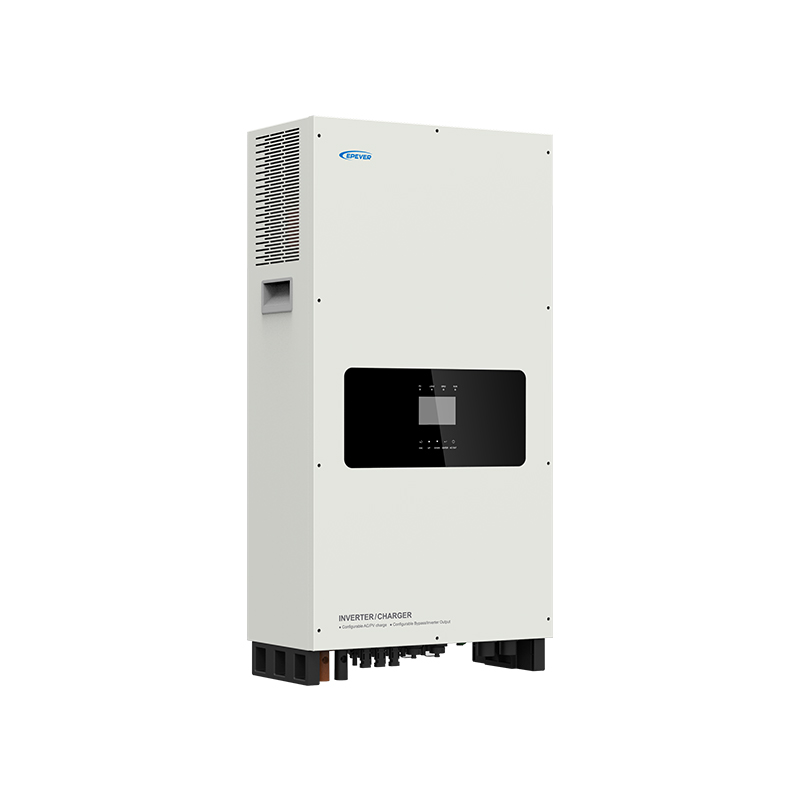

MP Series (3000-5000W) Inverter/Charger
MP series, a multifunctional low-frequency split-phase output hybrid inverter, that supports utility charging, oil generator charging, solar charging, dual voltage output, power feedback, and energy management. It supports parallel operation for multiple units in a single phase or three phase. The inverter with the power of 3KW and 5KW perfectly suits residential applications, schools, health facilities, government buildings, cottages, and areas where the electricity is unstable.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Grid Type
Max PV Open Circuit Voltage
Max. Utility Charging Current
Rated Battery Voltage
Inverter Output Voltage
Max PV Charging Power
Maximum PV Charging Current
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: MP5043-1020P65
Specifications
- Rated battery voltage
- 48VDC
- Battery work voltage range
- 42.4VDC to 64.0VDC
- Battery type
- Lithium battery/lead-acid battery
Inverter Output
- Rated output frequency
- 50Hz/60Hz±0.5Hz
- Full load efficiency
- ＞90%
- 5S Continuous output power (@25℃)
- 10000W
- Distortion THD
- ≤ 5% (Resistive load)
- Inverter to bypass transfer time
- ≤1mS
- Rated output voltage
- 220VAC/230VAC/240VAC±5%; 110VAC/115VAC/120VAC±5%
- Max. inverter efficiency
- ＞93.6%
- Continuous output power(@25℃/4H)
- 5000W
- Output wave
- Pure Sine Wave
- Load Power Factor
- 0.2－1(VA ≤ continuous output power)
- Utility transfer time
- ≤10mS
Utility Input
- Utility input frequency range
- 40Hz to 70Hz
- Utility work voltage range
- 170VAC to 285VAC
- Rated Utility input power
- 7500W(@240VAC)
(Charging plus Bypass)
- Max. Utility charging current
- 80A
- Utility charging power factor
- About 1
Solar charging
- Max. PV charging power
- 5000W (1700W/way)
- Temperature compensate coefficient
- -3mV/℃/2V (Default)
- Max. PV open circuit voltage
- 195V (At minimum operating environment temperature) 180V (At 25℃)
- MPPT tracking efficiency
- ≥99.5%
- MPPT working voltage
- (Battery voltage plus 10V) to 145V
- Charging conversion efficiency
- ＞95%
- Max. PV charging current
- 100A (34A/way)
Others
- Model
- MP5043-1020P65
- Work temperature
- -20℃ to 55℃ (When the environment temperature exceeds 25℃, the actual output power is reduced appropriately)
- No-load consumption
- ≤ 48V/ 0.7A
- Storage temperature
- -40℃ to 60℃
- Static consumption
- ≤ 48V/ 0.15A
- Enclosure
- IP65
- Relative Humidity
- < 95% (N.C.)
- Altitude
- 4000m (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
Inverter/charger charging current
- Max. inverter/charger charging current
- Default 100A (Settable, range 0－100A)
Mechanical Parameters
- Dimension (Length x Width x Height)
- 935mm×475mm×255mm
- Mounting size (Length x Width)
- 260mmx160mm
- Mounting Hole Size
- Ф10mm
- Net Weight
- 66.0kg
Highlights
- IP65 protection degree
- Applicable for pure on grid/off grid/ backup usage/ self-consumption situation
- Pure sine wave output, with dual voltage (120/240V)
- Integrated UPS module, on/off grid seamless switching under 10ms
- Supports battery mode & non battery mode
- Supports low voltage（48V）lithium /lead-acid battery
- Adjustable charge/discharge currents
- Parallel operation in single-phase or three-phase for 6 units in standard application
- Comprehensive electronic protection guarantees safer and stable operation
- Historical data storage capacity: 25000 records
- Smart monitoring, optional WiFi/4G/Bluetooth remote monitoring
