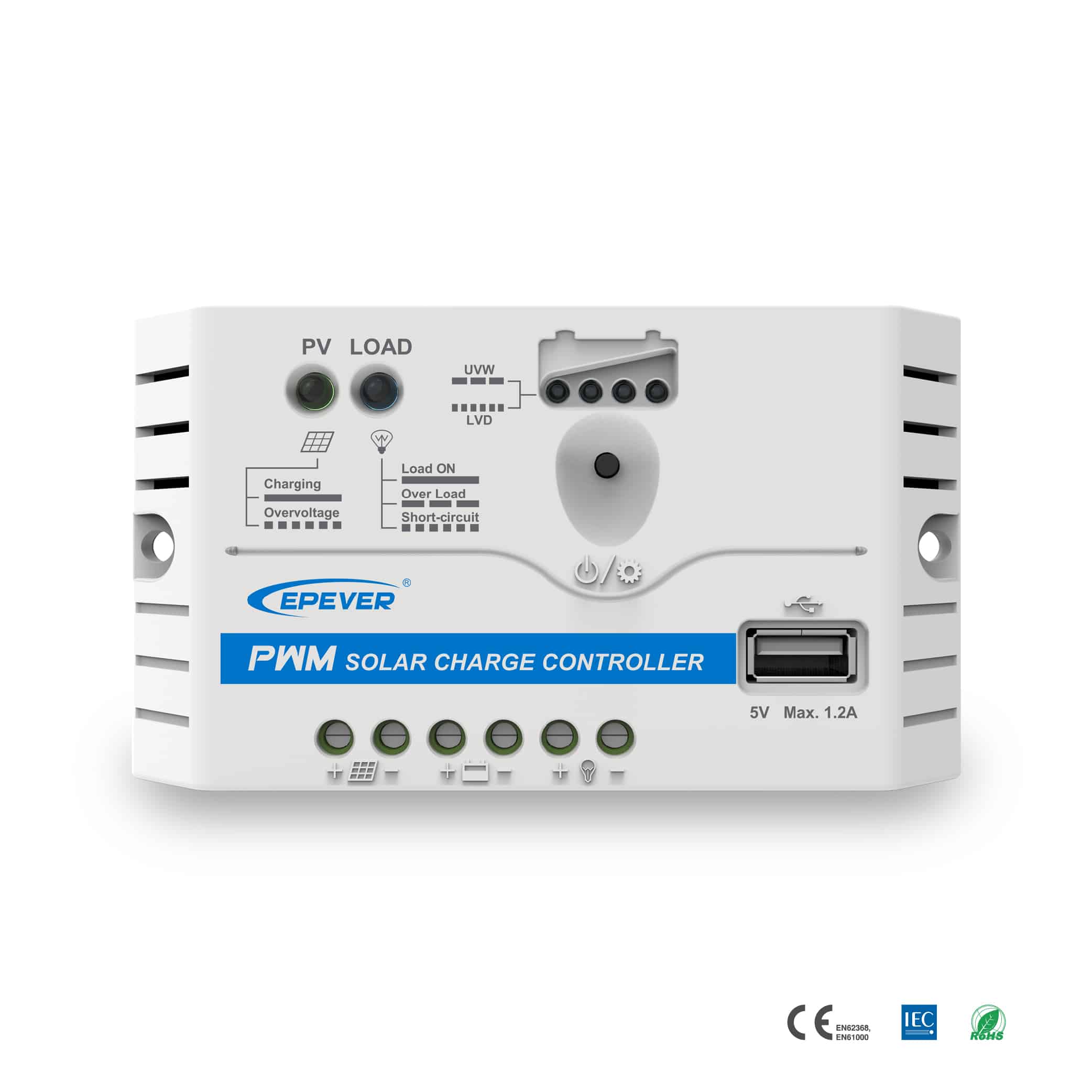

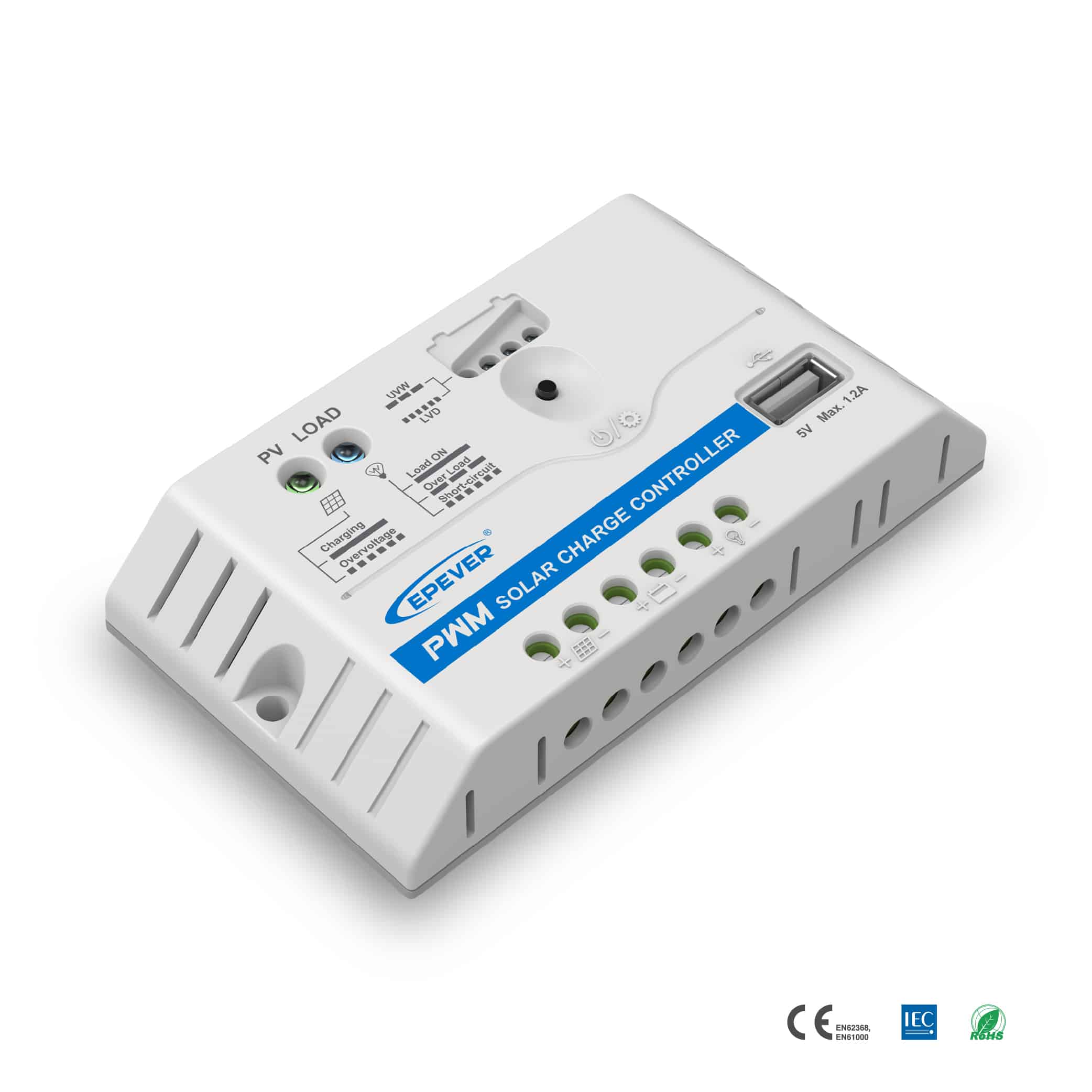

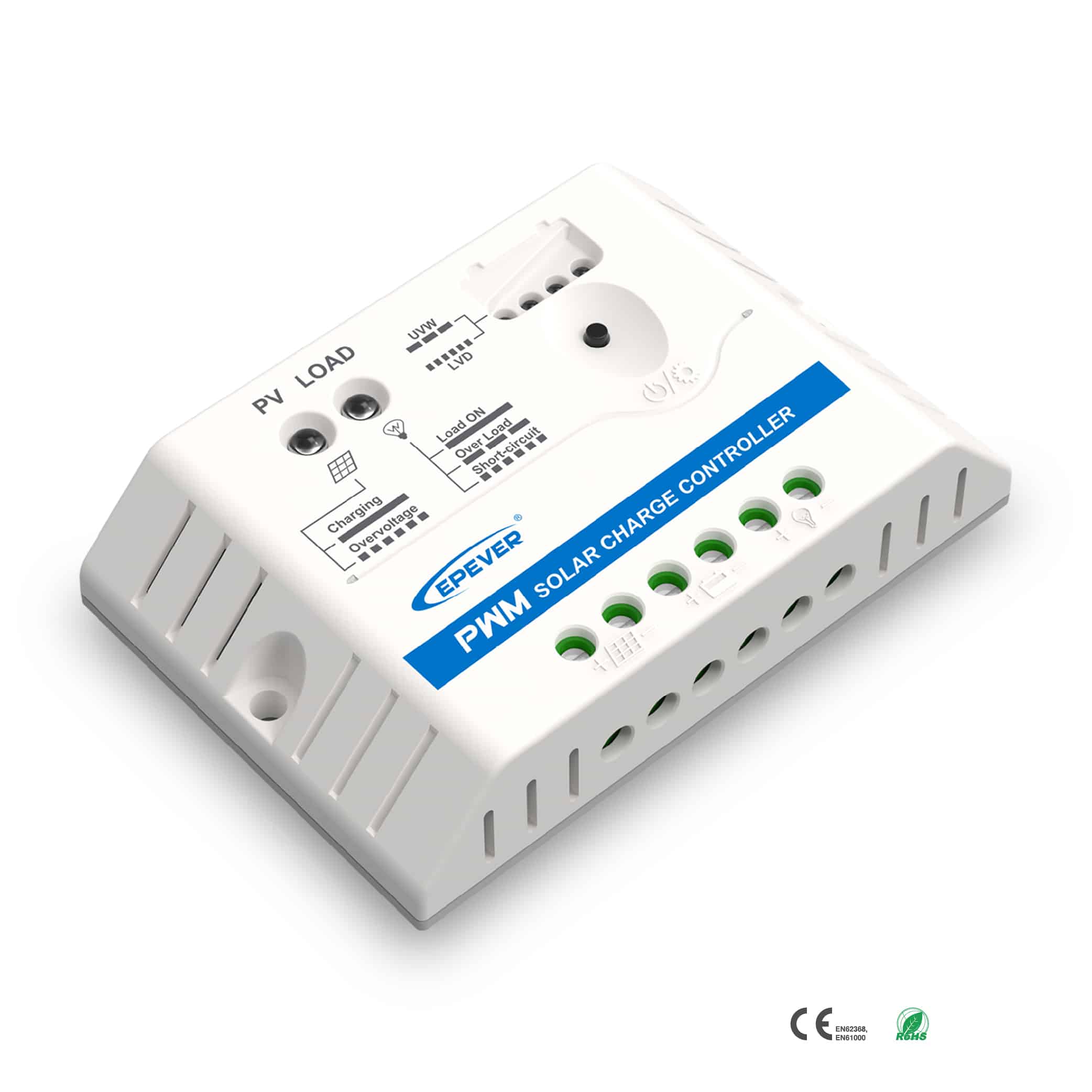

LS-E(EU) Series(5A~30A) PWM Charge Controller
LandStar E(EU) series is a reliable, stable, and economical solar charge controller, easy to operate. Based on the LS-E series, the LS-EU series adds a +5V/1.2A USB terminal output which can charge mobile phones, power DC fans, and other DC electronic devices.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Max PV Open Circuit Voltage
Charging Technology
Maximum PV Charging Current
System Nominal Voltage
Maximum Discharge Current
Select every option to reveal the matching model.
Specifications
Model: LS0512E
Specifications
- Nominal system voltage
- 12VDC
- Battery type
- Sealed(Default)/Gel/Flooded
- Battery input voltage range
- 8～16V
- Rated charge current
- 5A
- Rated discharge current
- 5A
- Max. PV open circuit voltage
- 30V
- Equalization voltage
- Sealed:14.6V,Flooded:14.8V
- Boost voltage
- Gel:14.2V,Sealed:14.4V,Flooded:14.6V
- Float voltage
- Gel/Sealed/Flooded:13.8V
- Low voltage reconnect voltage
- Gel/Sealed/Flooded:12.6V
- Low voltage disconnect voltage
- Gel/Sealed/Flooded:11.1V
- Self-consumption
- 12V≤5mA; 24V≤7mA
- Temperature compensation
- -5mV/℃/2V
- Relative humidity
- ≤95%,(N.C.)
- Enclosure
- IP20
- Grounding
- Common Positive
- Operating temperature range
- -35℃～50℃
- Dimensions(LxWxH)(mm)
- 109.7×65.5×20.8
- Weight
- 0.09kg
Highlights
- Series PWM charging mode
- LED indicator indicates battery situation
- Battery temperature compensation function
- Extensive electronic protection
- USB ports available (LS-EU series only)
- User friendly design buttons
- Industrial quality standard design
