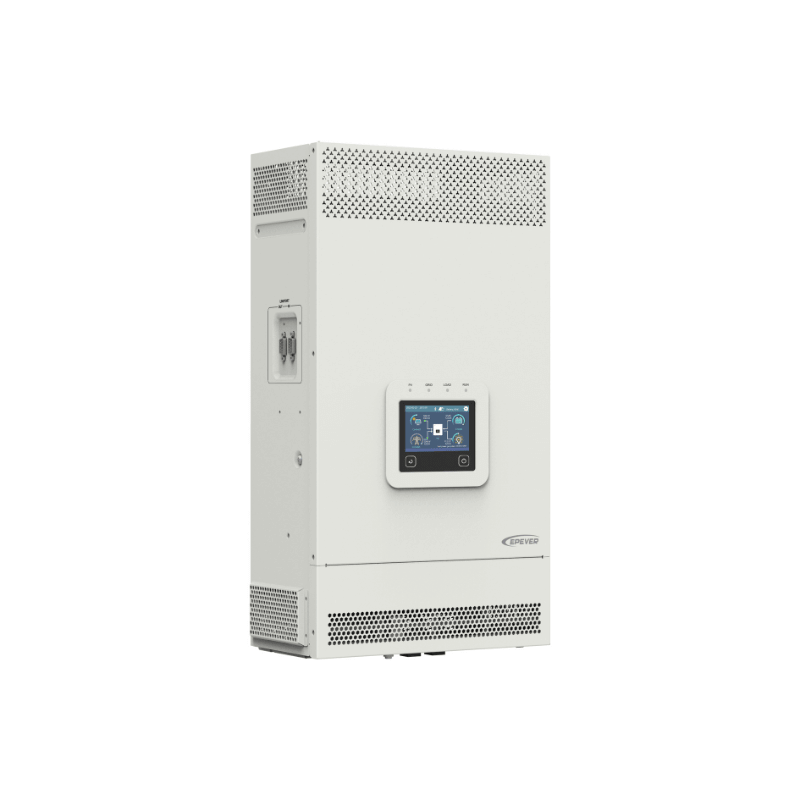

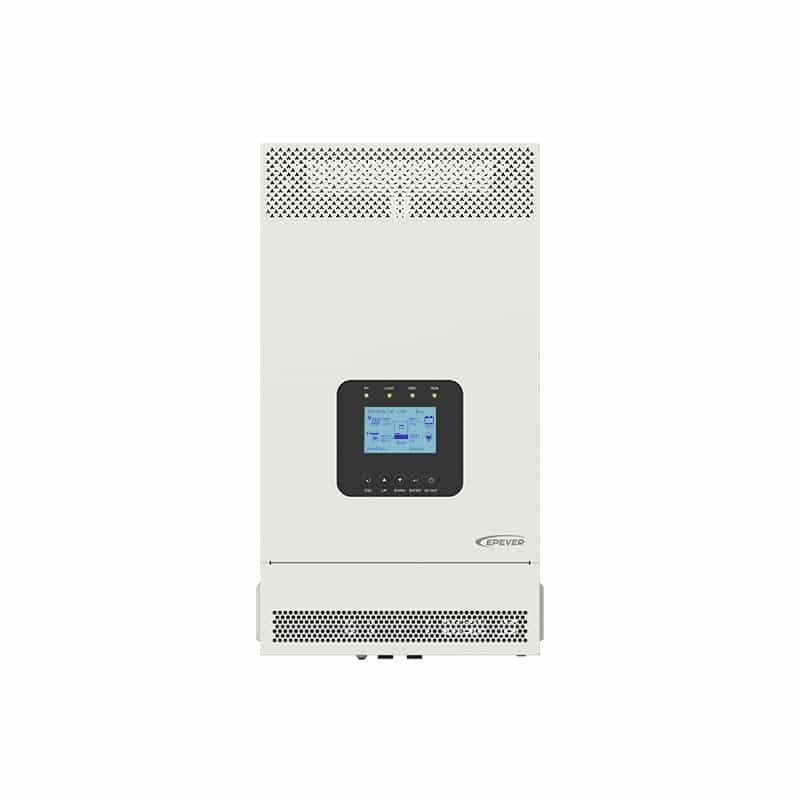

KRP Series (3500-5500W) Inverter/Charger

The KRP Series is a versatile off-grid inverter charger, ideal for residential, school, healthcare, and government facilities, as well as areas with inconsistent electricity supply. It supports dual AC output, solar charging, and utility integration, providing reliable and efficient energy solutions. What sets the KRP Series apart is its enhanced PV Max. Input Current capacity, accommodating 20A for single PV input or 20A+20A for dual PV inputs. This makes it an excellent choice for installations requiring higher solar input capacity while maintaining the same core features as the KR Series. With a capacity range of 3500W to 5500W, the KRP Series supports single-phase or three-phase parallel operation with a modular design for easy installation and expansion. Its comprehensive electronic protections and durable construction ensure dependable performance in a wide range of environments. The KRP Series is a robust and flexible solution for managing your energy needs, offering enhanced compatibility for larger solar installations while maintaining the trusted performance of EPEVER’s inverter/charger lineup.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant
KR Series Off-Grid Inverter Charger (1)

Configure your model

Rated Battery Voltage
Grid Type
Parallel Operation Capability
Max PV Input Power
Max PV Open Circuit Voltage
Inverter Rated Power
Inverter Output Voltage
Dual AC Output
Max. Utility Charge Current
Maximum PV Charging Current
Output Voltage

Select every option to reveal the matching model.

Specifications

Model: KRP5542-1050P20/C
Utility Input
Utility Input Voltage
176VAC to 264VAC (Default), 90VAC to 285VAC (Configurable)
Utility Input Frequency
45Hz to 65Hz
Maximum Utility Charging Current
100A
Switch Response Time
Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
Inverter Output
Inverter Rated Power (@30℃)
5500W
3-second Transient Surge Output Power
8500W
Inverter Output Voltage
220/230VAC±3%
Inverter Frequency
50/60Hz±0.2%
Output Voltage Waveform
Pure sine wave
Load Power Factor
0.2–1(VA ≤ Rated output power)
THDu (Total Harmonic Voltage Distortion)
≤3% (48V resistive load)
Maximum Load Efficiency
0.92
Maximum Inverter Efficiency
0.94
Maximum Main Load
5500W
Maximum Second Load
5500W
Main Output Cut-Off Voltage
48.8V(Default)
Second Output Cut-Off Voltage
44.4V(Default)
Dual Output Recovery Voltage
50.4V(Default)
Solar controller
PV Maximum Open-circuit Voltage
500V (At minimum operating environment temperature); 440V (At 25℃)
MPPT Voltage Range
85V to 450V
Number of MPPTs
2
PV Maximum Input Current
20A+20A
PV Maximum Short-circuit Current
20A+20A
PV Maximum Input Power
2×3300W
PV Maximum Charging Current
100A
MPPT Maximum efficiency
≥99.5%
Battery
Battery Rated Voltage
48VDC
Battery Work Voltage Range
40.8VDC to 64.0VDC
Battery Maximum Charging Current
100A
Others
No-load Losses
≤1.1A
Standby Current
≤0.8A
Communication with BMS
RS485
Communication with Portal
RS485 (4G/WiFi /Bluetooth)
Parallel Function
Yes, Standard 12 units, Up to 16 units
Work Temperature Range
-20℃ to +50℃(>30℃ Derating )
Storage Temperature Range
-25℃ to +60℃
Enclosure
IP20 (With anti-dust kit))
Relative Humidity
< 95% (N.C.)
Altitude
<4000M (>2000m Derating)
Certifications and Standards
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
Mechanical Parameters
Dimension (Length x Width x Height)
590mm × 300mm × 163mm
Mounting size (Length x Width)
568mm × 245mm
Mounting Hole Size
Φ9mm/Φ10mm
Net Weight
15.5Kg

Highlights

  • Applicable for pure off grid / backup power / self-consumption
  • PV input voltage range: 80Vdc-500Vdc
  • PV input current up to 40A
  • Supports battery mode & non battery mode
  • Battery & PV reverse polarity protection
  • Dual pure sine wave output
  • Supports single-phase or three-phase parallel operation (up to 16 units)
  • Sleep mode triggered by low power output or low battery voltage
  • Independent BMS communication interface
  • Isolated RS485 interface:Connects with Bluetooth, WiFi, 4G, etc.
  • Optional 320 x 480 high-resolution color LCD screen or monochrome screen
  • Historical data recording function, storage capacity of 25000 records
  • Comprehensive electronic protection ensures safer and more stable operation
  • IP20 enclosure design with anti-dust kit
