IT-NC G3 Series (50~100A) MPPT Charge Controller with Load Control

The IT-NC G3 Series MPPT Charge Controller is designed for off-grid solar systems that need both efficient solar charging and reliable DC load power. Unlike standard MPPT controllers, this model not only charges batteries efficiently but also directly powers DC loads, making it ideal for applications like solar streetlights, RVs, boats, and remote monitoring systems. With 50A-100A charging capacity, 99.9% MPPT tracking efficiency, and dual PV input options (select models), this controller maximizes solar energy utilization. Some models come with a built-in BLE Bluetooth module, allowing for seamless wireless monitoring via a mobile app. Its intelligent load control supports multiple operation modes, ensuring stable power supply to DC devices. Remote monitoring is effortless via RS485, with optional Bluetooth, WiFi, or 4G modules for real-time data access. Built with a durable metal housing and IP32/IP43 protection, the IT-NC G3 ensures long-lasting performance in various off-grid environments. Whether you need reliable DC power for solar lighting, RV appliances, or industrial equipment, this MPPT controller with load output delivers smart, efficient, and versatile solar power management.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant

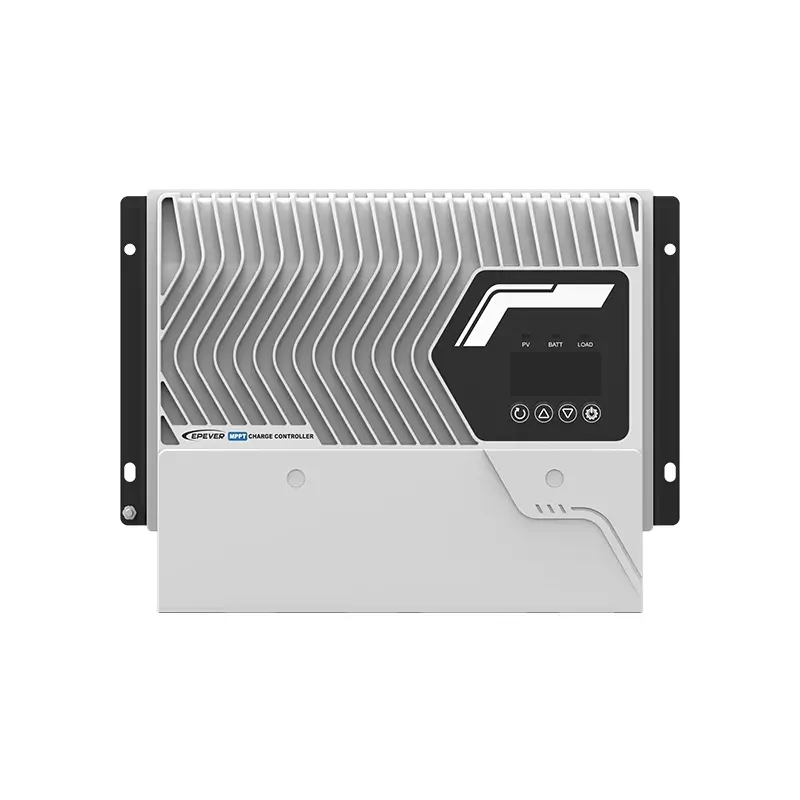

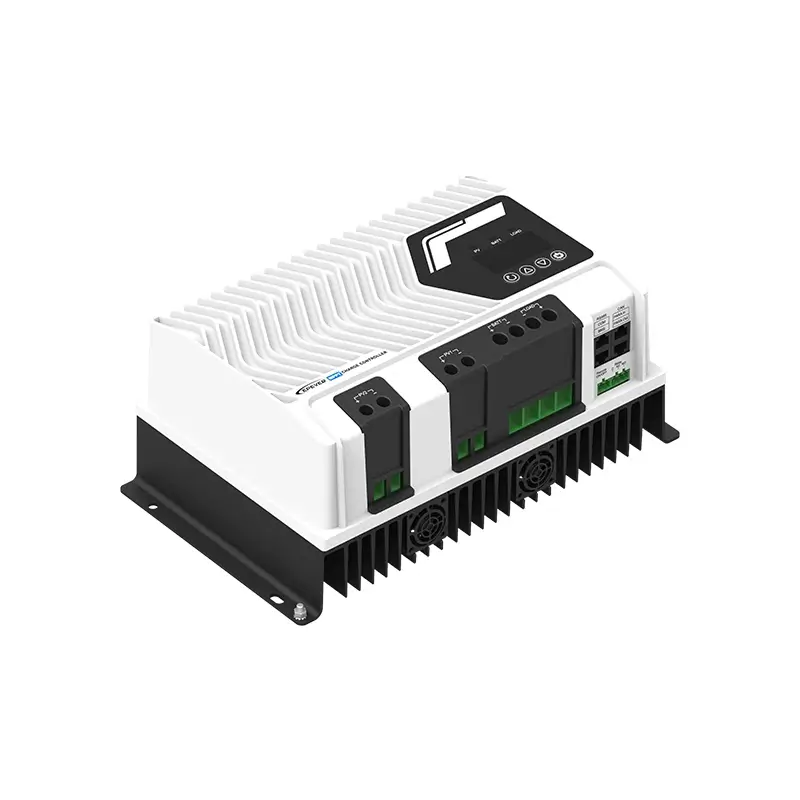

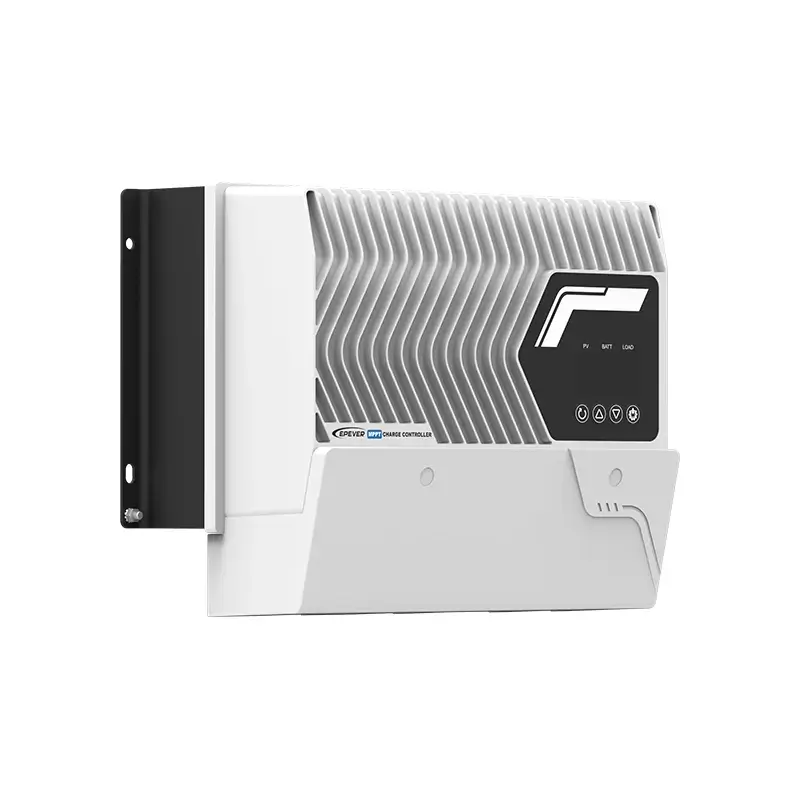

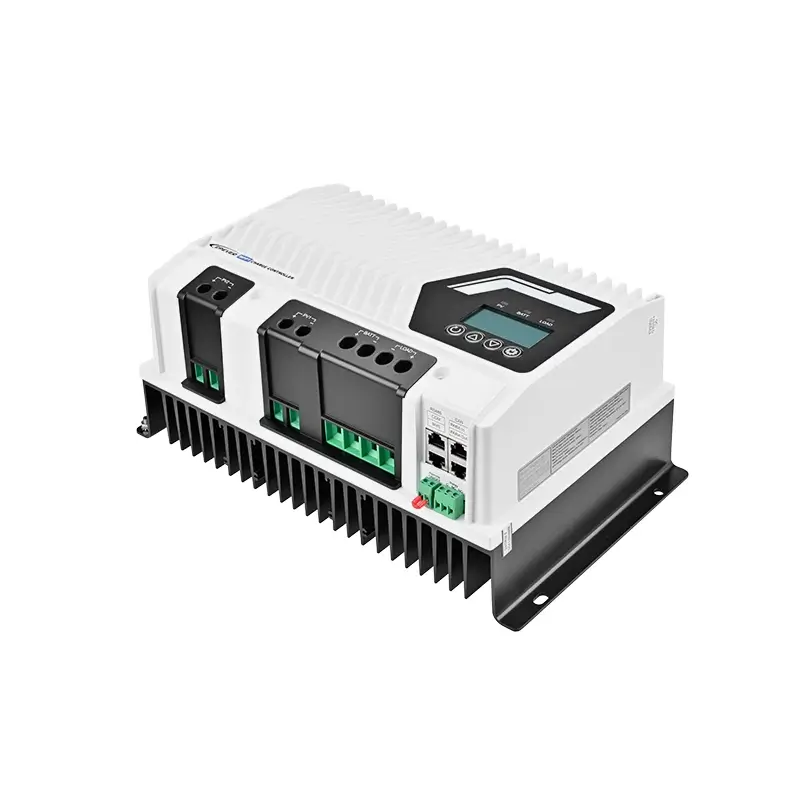

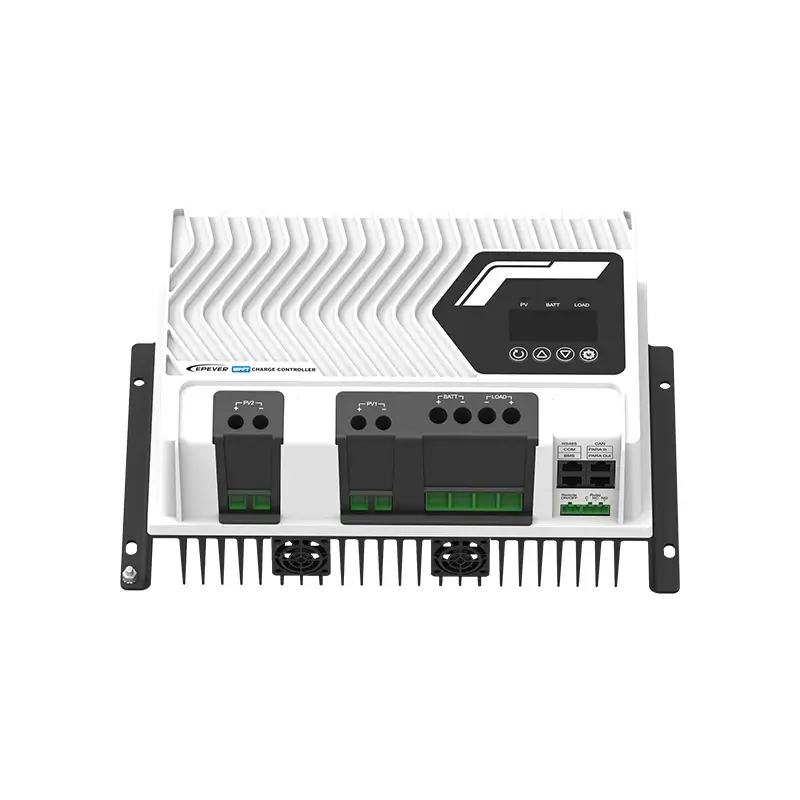

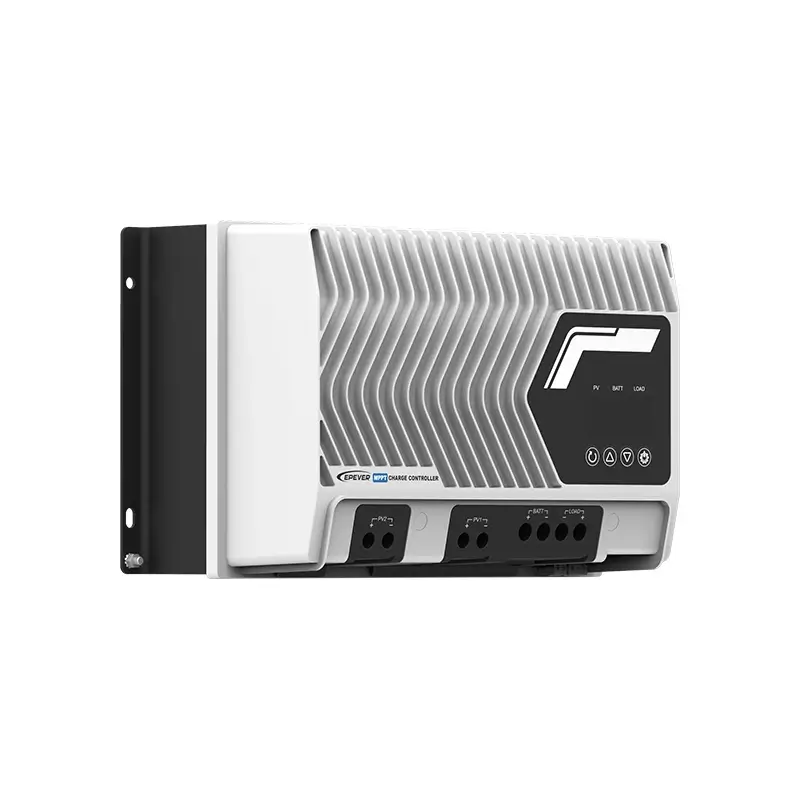

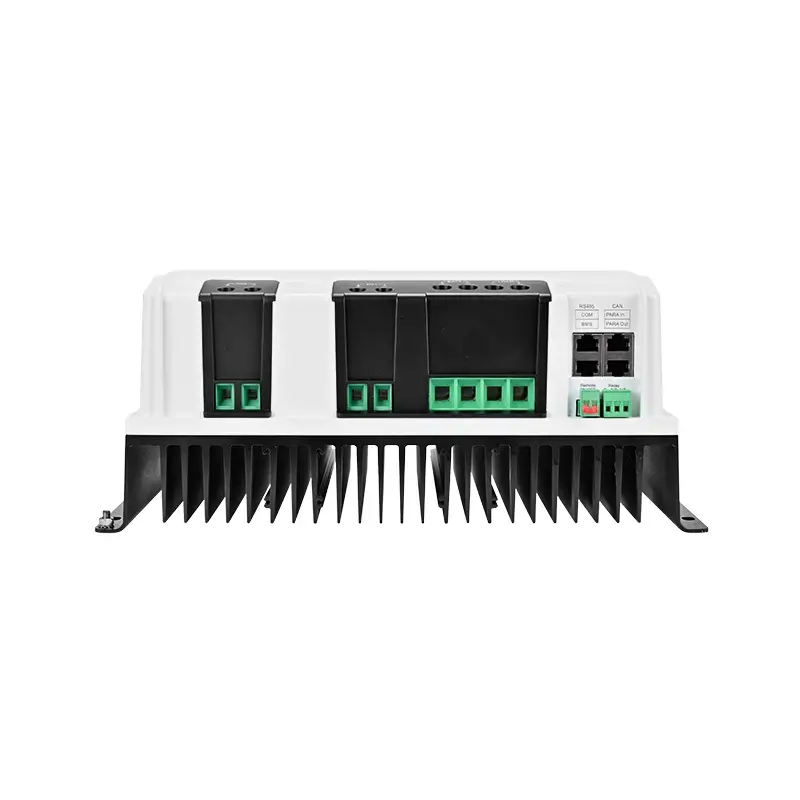

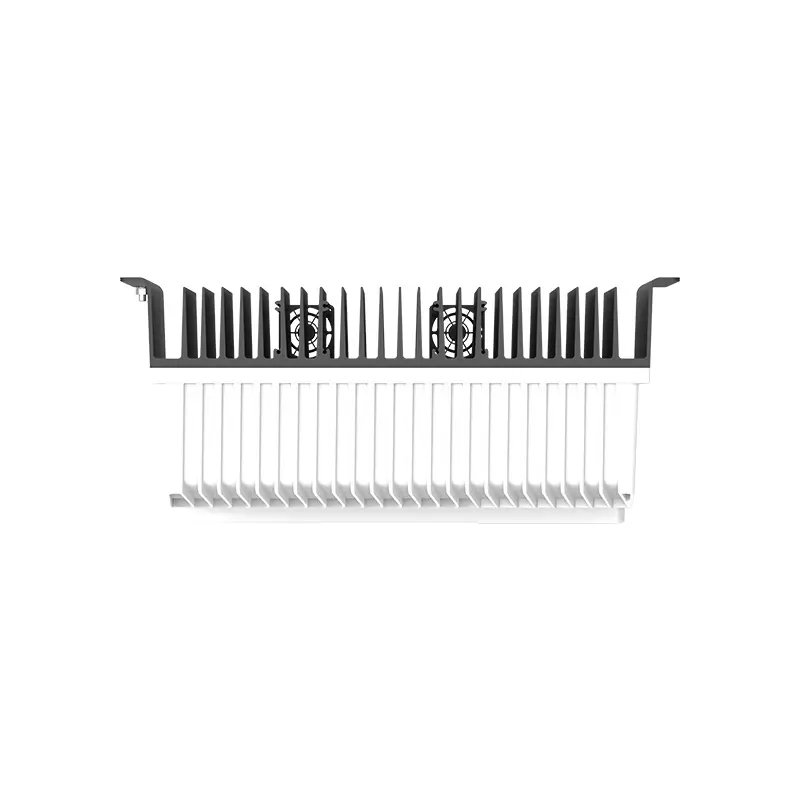

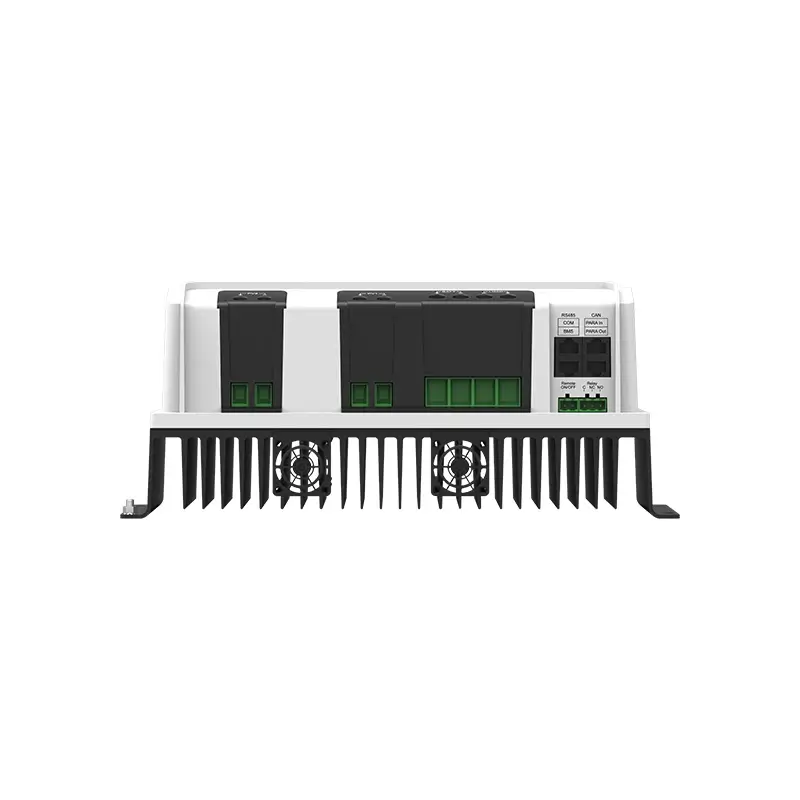

IT-NC G3 Series MPPT Charge Controller with Load Output 01

Configure your model

Enclosure
Max PV Input Power
Max PV Open Circuit Voltage
DC Load Output
Rated Discharging Current
Rated Charging Current
Number Of Mppts
Display
System Nominal Voltage

Select every option to reveal the matching model.

Specifications

Model: IT10420NC G3(IP43)
Electrical Parameters
Battery Rated Voltage
12/24/48VDC or Auto
Controller Operating Voltage Range
8–62V
Battery Type
AGM(Default) / Gel / Flooded / User
Lithium Battery Type
LiFePO₄ / Li(NiCoMn)O₂ / User
Rated Charging/Discharging Current
100A
Rated Charging Power
1,300W/12V; 2,600W/24V; 5,200W/48V
Max. Charging Power
1,300W/12V; 2,600W/24V; 5,200W/48V
Rated Load Current
100A
Max. Load Current
100A
PV Max. Open-circuit Voltage
200V (@ lowest temperature) 180V (@ 25℃)
MPPT Operating Voltage Range
(Battery voltage plus 2V, and > 28V) to 144V (@ 25 ℃)
Tracking Efficiency
≥ 99.5%
Max. Conversion Efficiency
98.5%
Full Load Efficiency
97.6%
Temperature Compensation Coefficient
-3mV/℃/2V (Default)
Self-consumption (Enabled Communication)
98mA/12V; 60mA/24V; 46mA/48V
Self-consumption (Disabled Communication)
48mA/12V; 25mA/24V; 14mA/48V
Grounding Type
Common negative grounding
Dry Contact (Oil Generator / Utility)
Rated value: 5A/30VDC; Maximum value: 0.5A/60VDC
RS485 Communication Port
5VDC/200mA (RJ45)
Mechanical Parameters
Dimension (L×W×H) (mm): IP43 (Controller & White Terminal Cover)
352 × 263 ×158
Dimension (L×W×H) (mm): IP32 (Controller Only)
352 × 212 ×149
Mounting Dimension (L×W) (mm)
340 × 140
Mounting Hole Size (mm)
Φ7
Wiring Terminal
2AWG/35mm²
Recommended Cable
2AWG/35mm²
Net Weight (kg): IP43 (Controller & White Terminal Cover)
7.87
Net Weight (kg): IP32 (Controller Only)
7.63
Environmental Parameters
Operating Temperature Range
-25℃ to 60℃ (Derating when temperature is higher than 40℃)
LCD Temperature Range
-20℃ to 70℃
Storage Temperature Range
-30℃ to 70℃
Relative Humidity
5%–95% (N.C.)
Altitude
5,000m (>2,000m Derating)
Enclosure
IP43 (Controller & White Terminal Cover); IP32 (Controller Only)
Pollution Degree
PD2
Certifications
Safety
EN/IEC62109-1
EMC
EN61000-6-1/EN61000-6-3
FCC
47 CFR Part 15, Subpart B
RoHS
IEC62321-3-1

Highlights

  • Supports 12V/24V/36V/48V systems; Charge/Discharge current: 50A–100A
  • All metal die-casting shell, IP43
  • Some models supports two PV inputs
  • Max. MPPT tracking efficiency: 99.9%; Max. Conversion efficiency: 98.5%
  • Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
  • Constant voltage output function: Enables direct load supply with sufficient PV energy
  • Communication interface with electrical isolation
  • CAN: Parallel operation of up to 6 devices (with or without batteries)
  • BMS: Ensures reliable lithium battery charge/discharge management
  • RS485: Optional Bluetooth, WiFi, or 4G modules
  • Real-time data recording, event logging, and power statistics function
  • EMC compliant (CLASS B)
