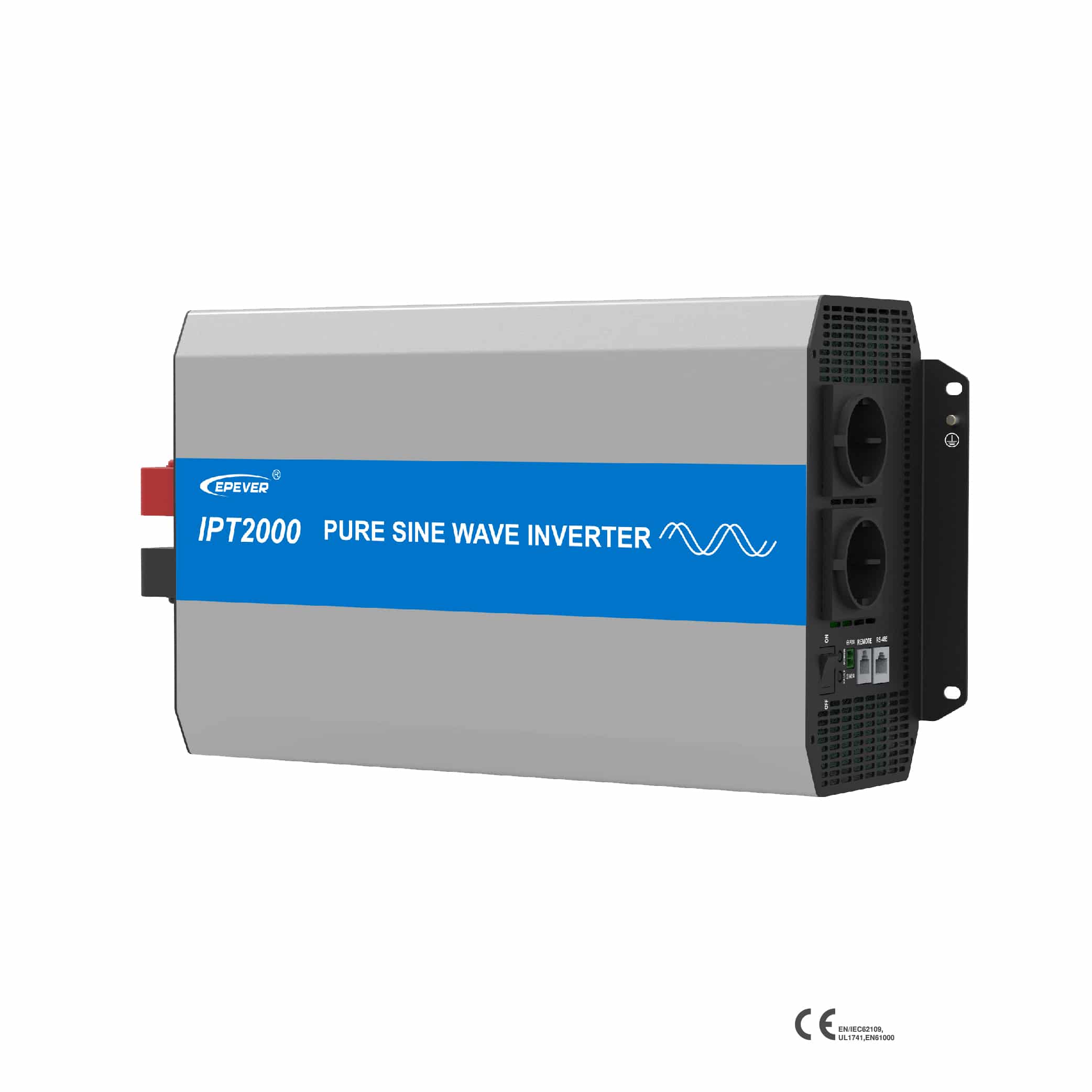

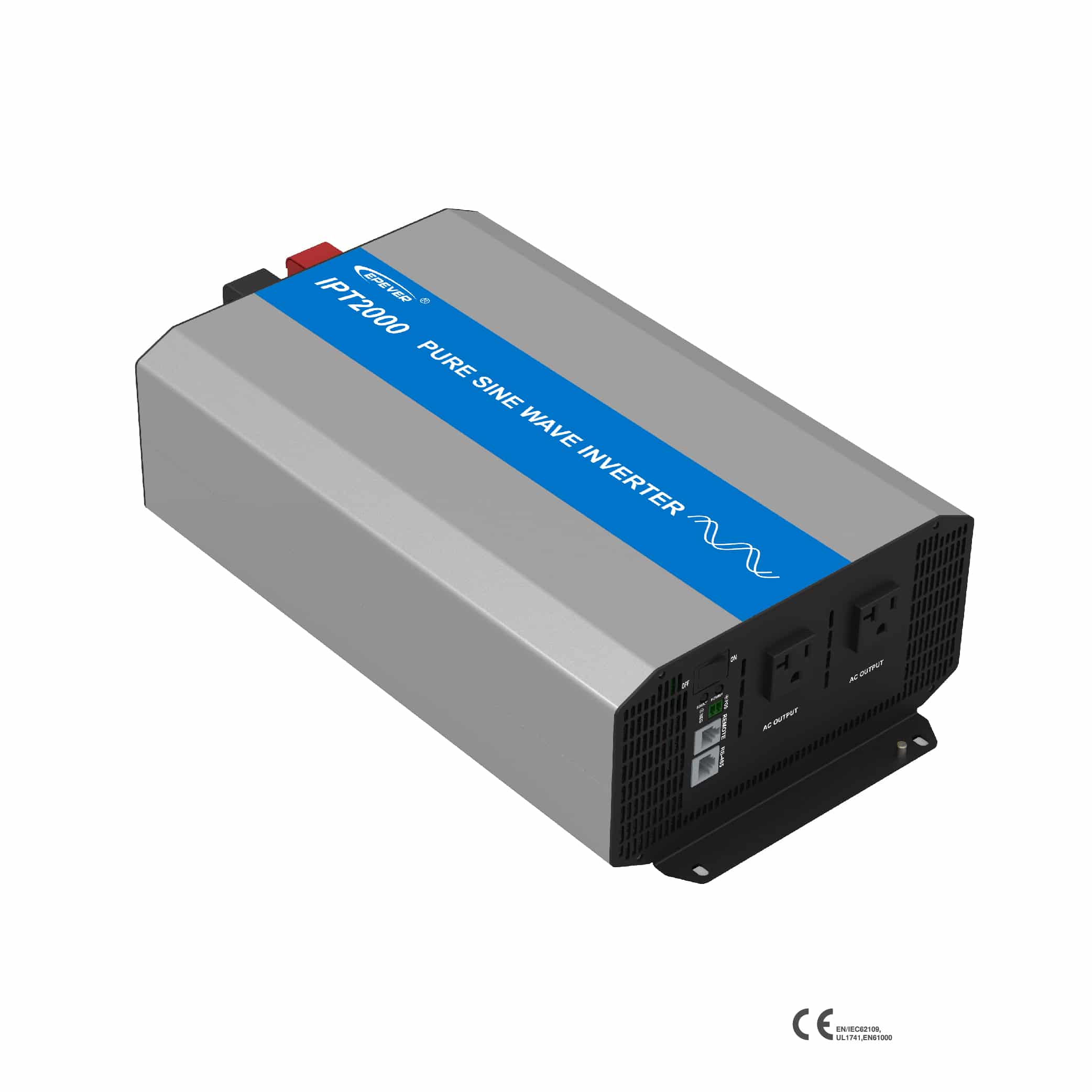

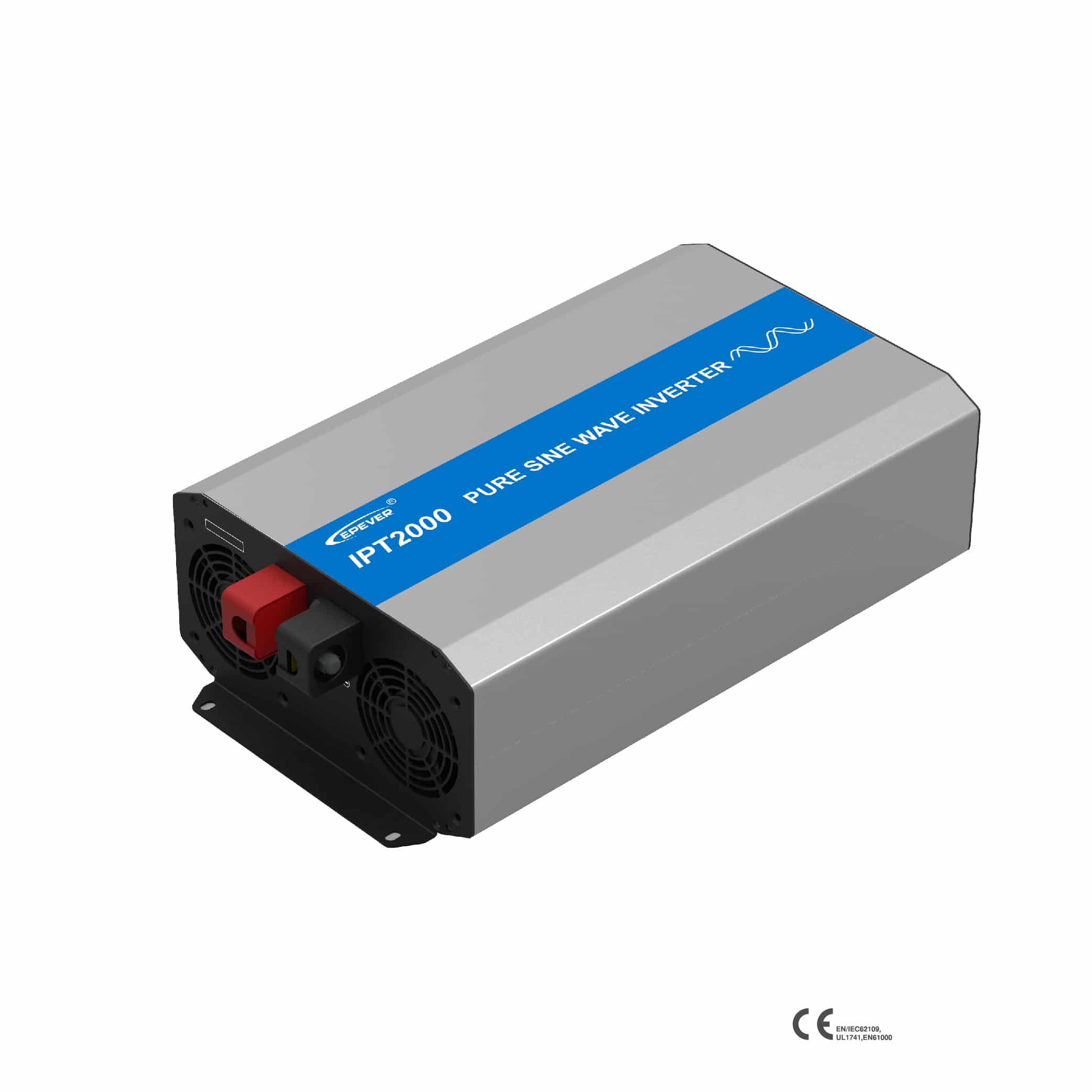

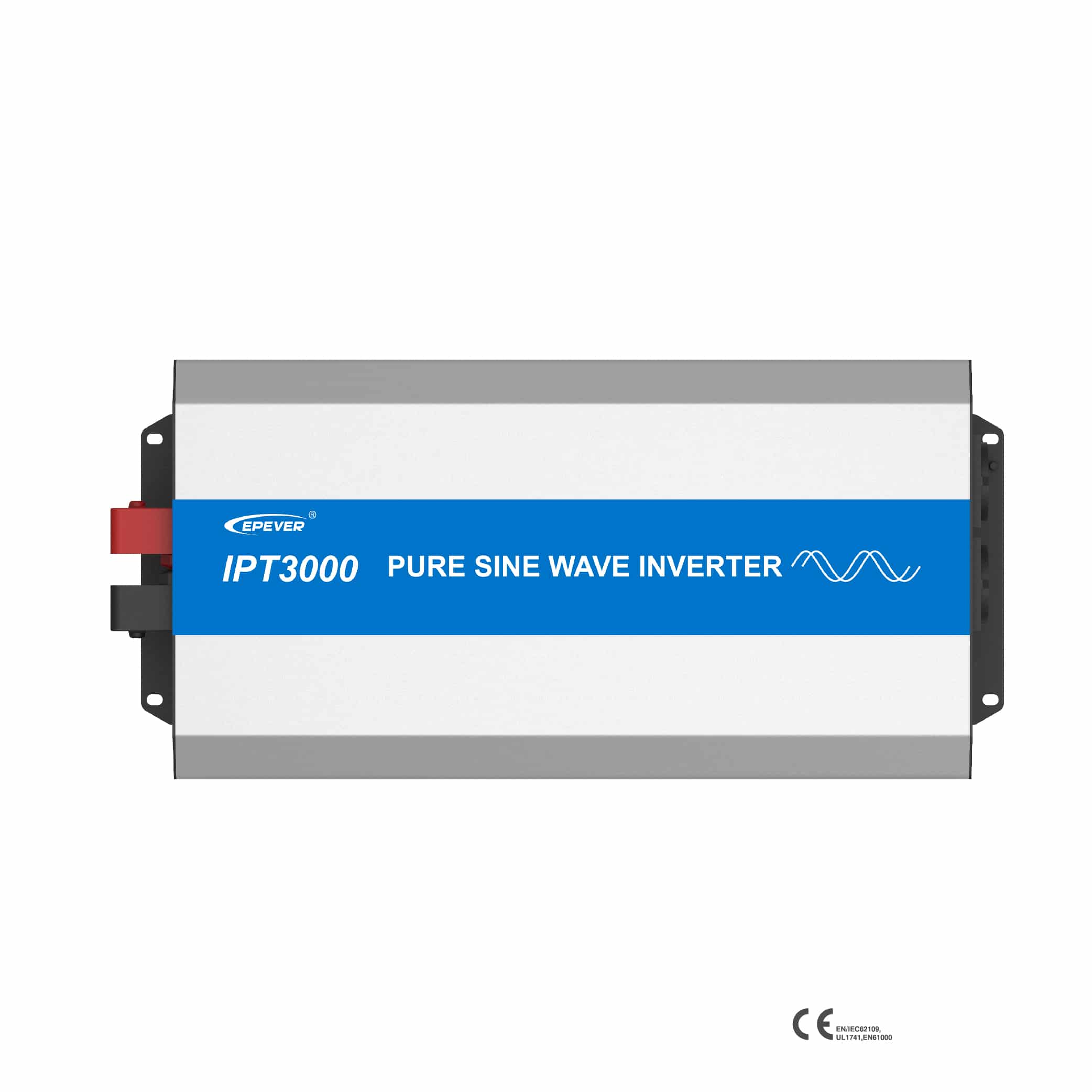

IPT Series (220/230VAC) 350~5000W Pure Sine Wave Inverter
The IPT series, a high-frequency sine wave inverter, adopts a fully digital intelligent design and a voltage-current dual closed-loop control algorithm. Featured with fast response, high conversion efficiency, low Total Harmonic Distortion(THD), and high reliability running, this series can be widely used in the DC-AC off-grid systems (such as vehicle systems, security monitoring systems, emergency lighting systems, household power systems, field power systems, and other systems requiring higher power quality).
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IPT5000-42
Certification
- RoHS
- IEC62321-3-1
- Safety
- EN/IEC62109-1, UL458 (Products with 12/24V input voltage support), CSA C22.2#107.1
- EMC(Electromagnetic compatibility)
- EN61000-6-2/EN61000-6-4, FCC 47 CFR Part 15, Subpart A
Technical Parameters
- Continuous Output Power
- 5,000W@35℃@Rated input voltage
- Surge Power
- 8,000W@5S
- Power-on Surge Current
- < 65A
- Output Voltage
- 220VAC (±3%); 230VAC (-6%–+3%); 240VAC (-9%–+3%)
- Output Frequency
- 50/60Hz ± 0.2%
- Output Wave
- Pure Sine Wave
- Output Distortion THD
- ≤ 3% (Resistive load)
- Load Power Factor
- 0.2–1 (Load power ≤ Continuous output power)
- Rated Input Voltage
- 48VDC
- Input Voltage Range
- 43.2–64.0VDC
- Rated Output Efficiency
- > 91.0%
- Maximum Output Efficiency
- > 94.0% (30% loads)
- Standby Current
- < 0.1A
- No-load Current
- < 0.8A
- RS485 Port
- 5VDC/200mA
Mechanical Parameters

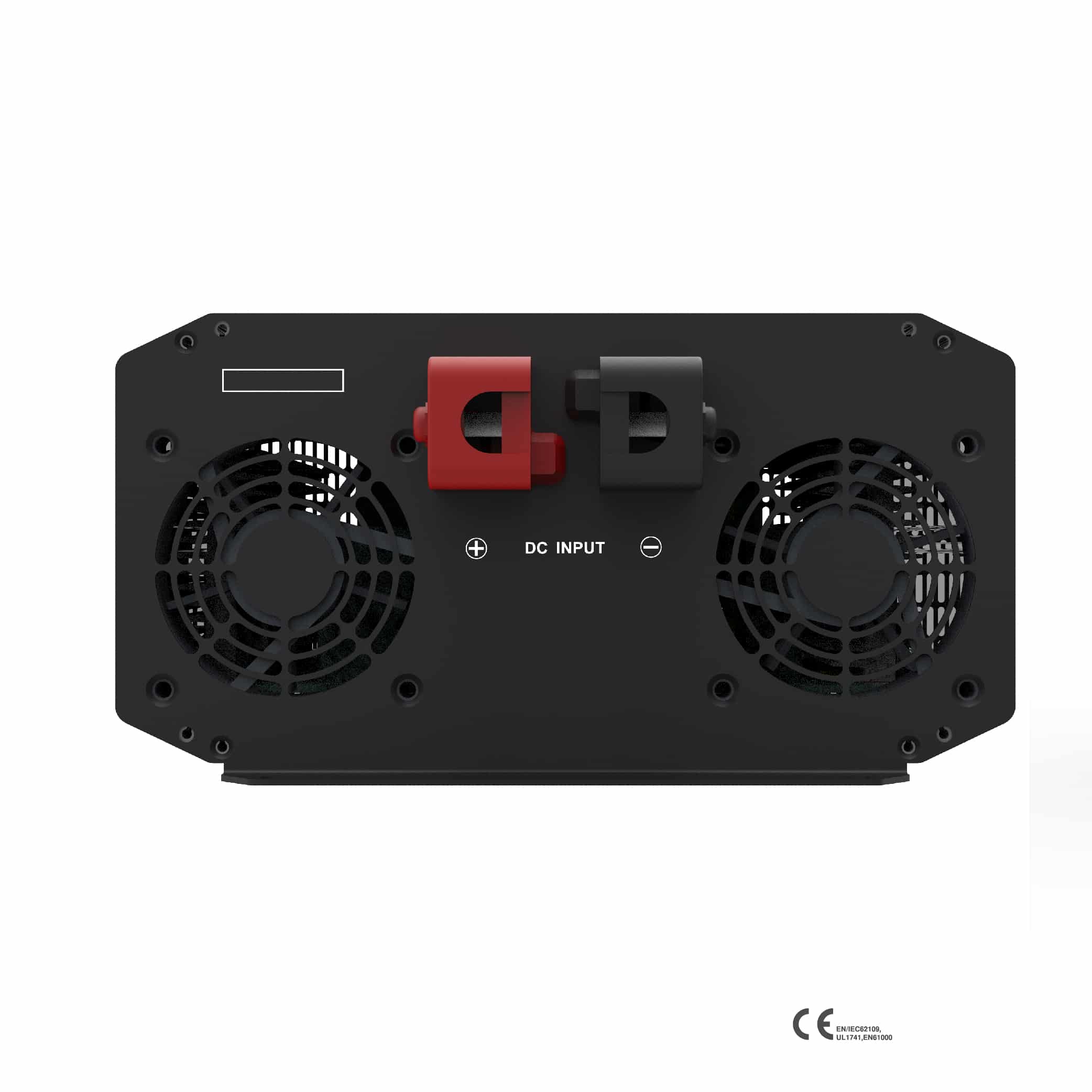

- Input Terminal
- M6
- Dimension (L × W × H)
- 531mm × 228mm × 118mm
- Mounting Size (L × W)
- 505mm × 145mm
- Mounting Hole Size
- Φ6mm
- Net Weight
- 8.5kg
Environment parameters
- Working Temperature
- -20℃ to +60℃ (Refer to the Derating Curve)
- Storage Temperature
- -35 ℃ to +70 ℃
- Relative Humidity
- ≤ 95% (N.C.)
- Enclosure
- IP20
- Altitude
- < 5,000m (> 1,000 meters derating)
Highlights
- Pure sine wave output
- Input to output electrical isolation
- Output power factor up to 1
- Input Protection: Low-voltage, Over-voltage
- Output Protection: Overload, Short circuit, Overheating
- RS485 com. port to realize remote monitoring
- External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption

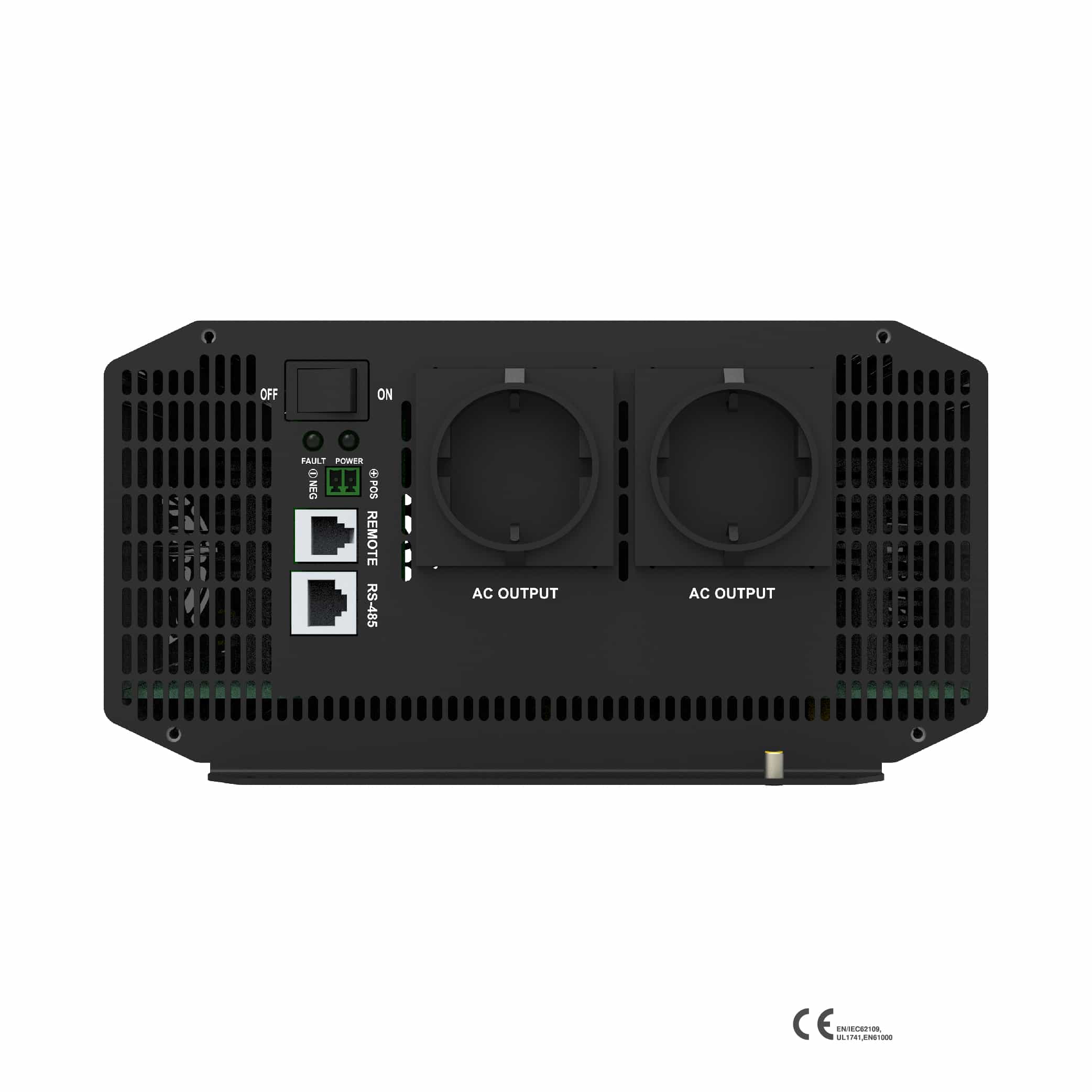

- Diversified AC output sockets
- EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved
