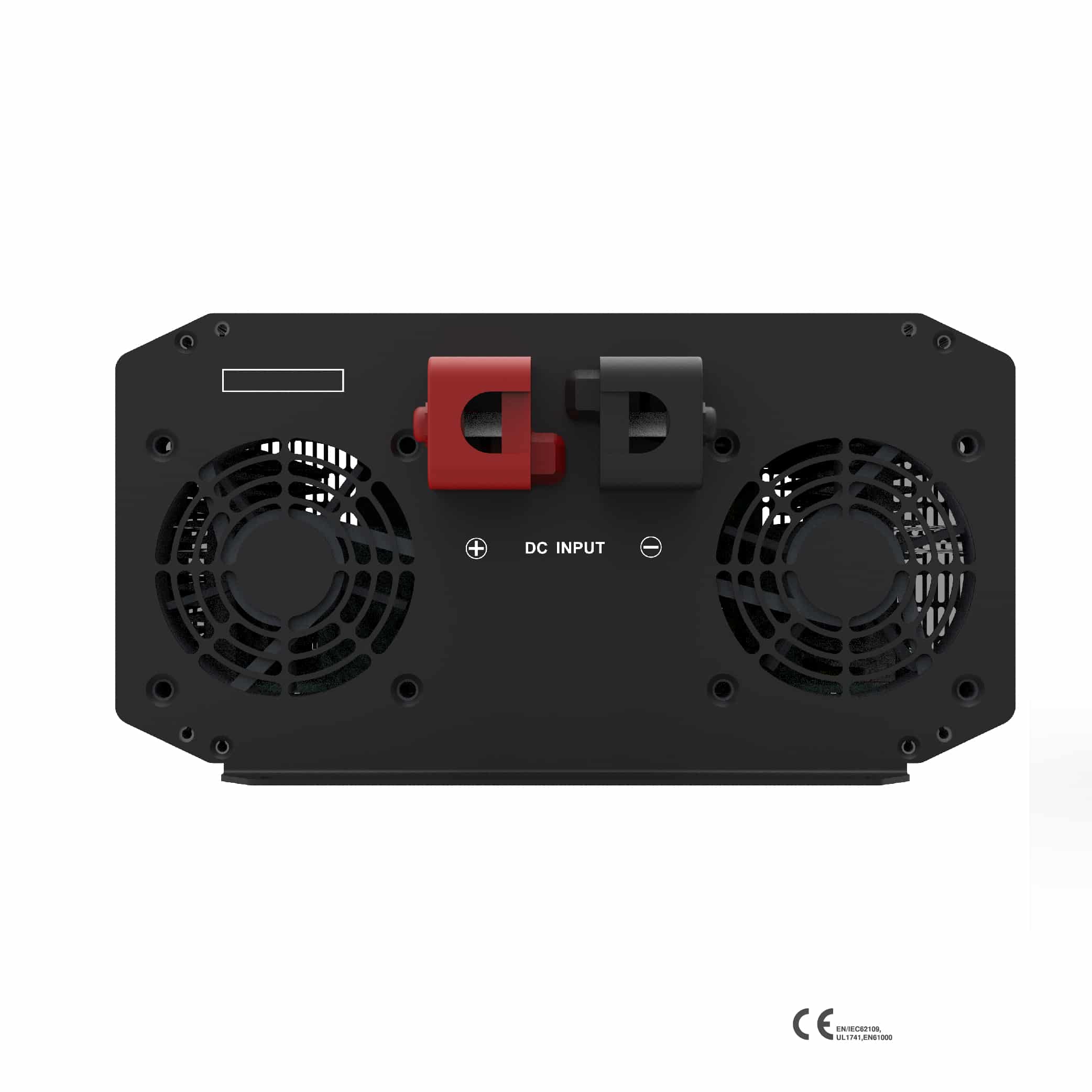

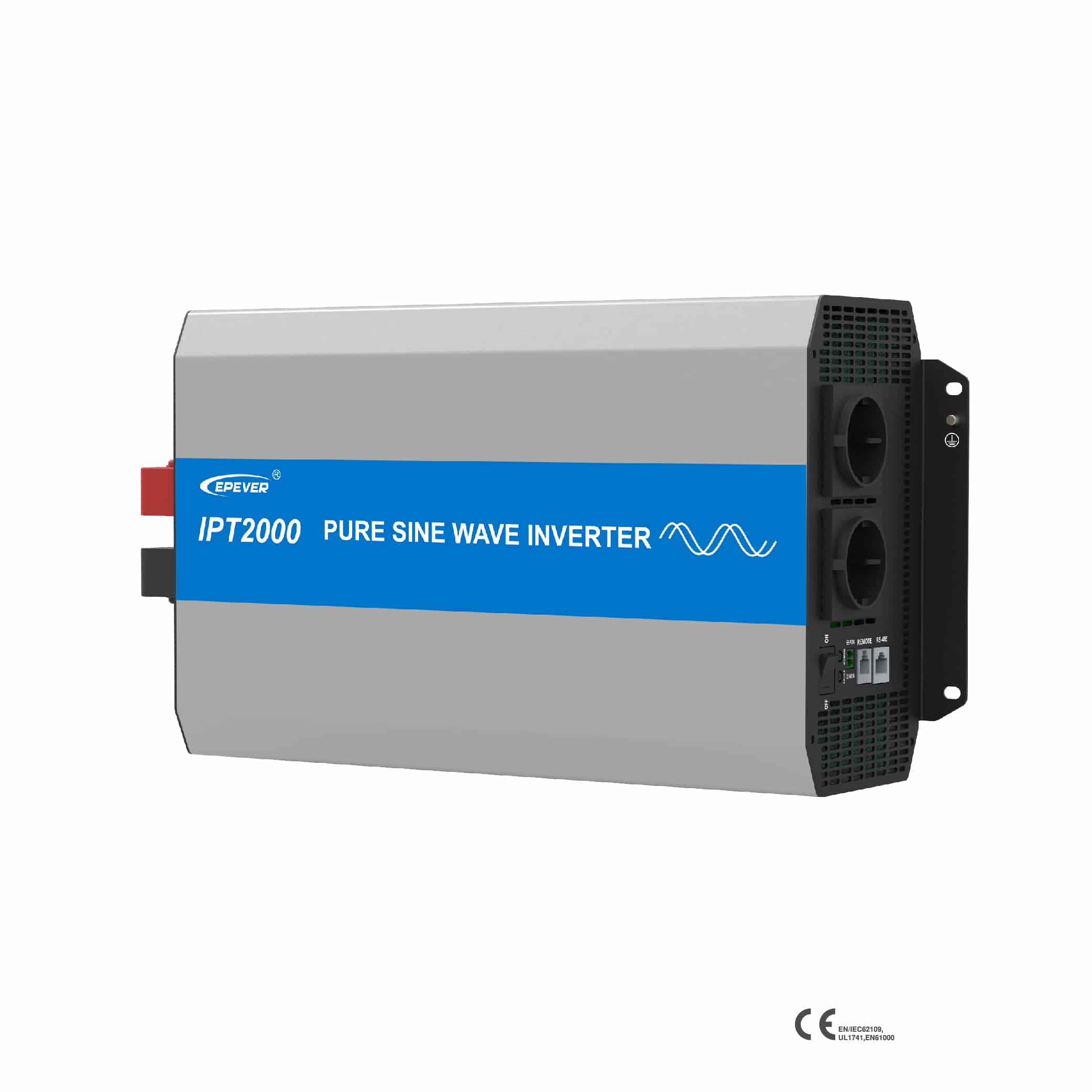

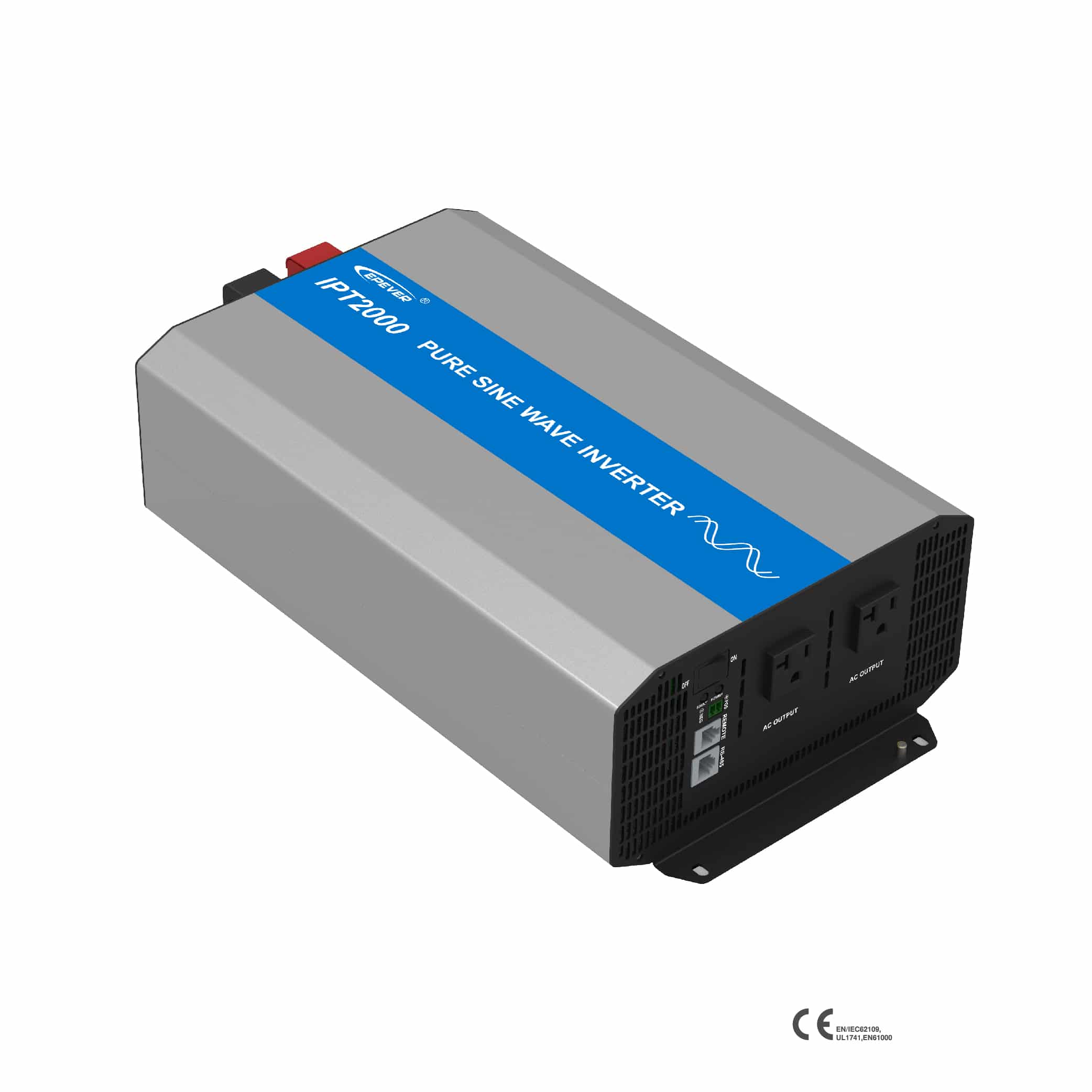

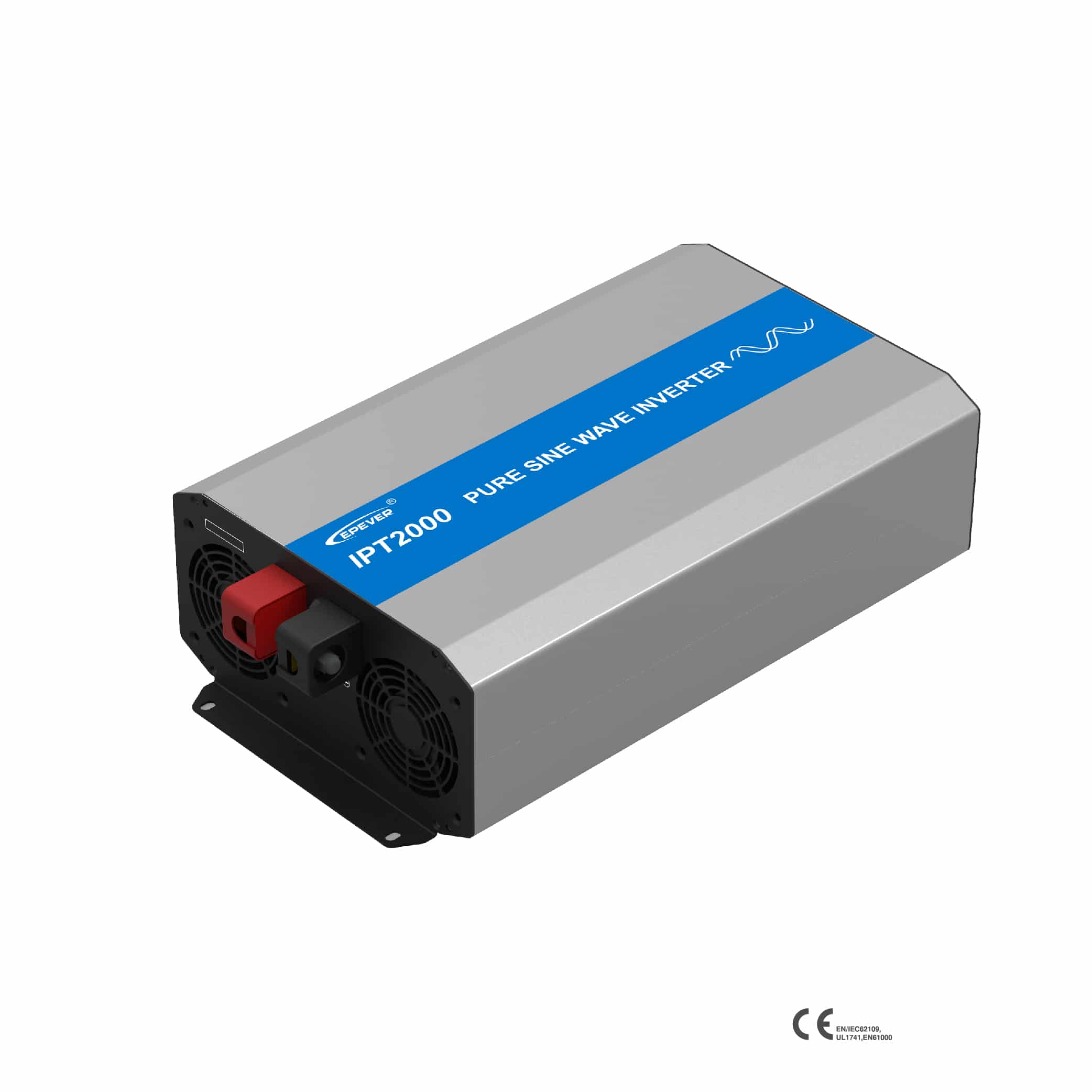

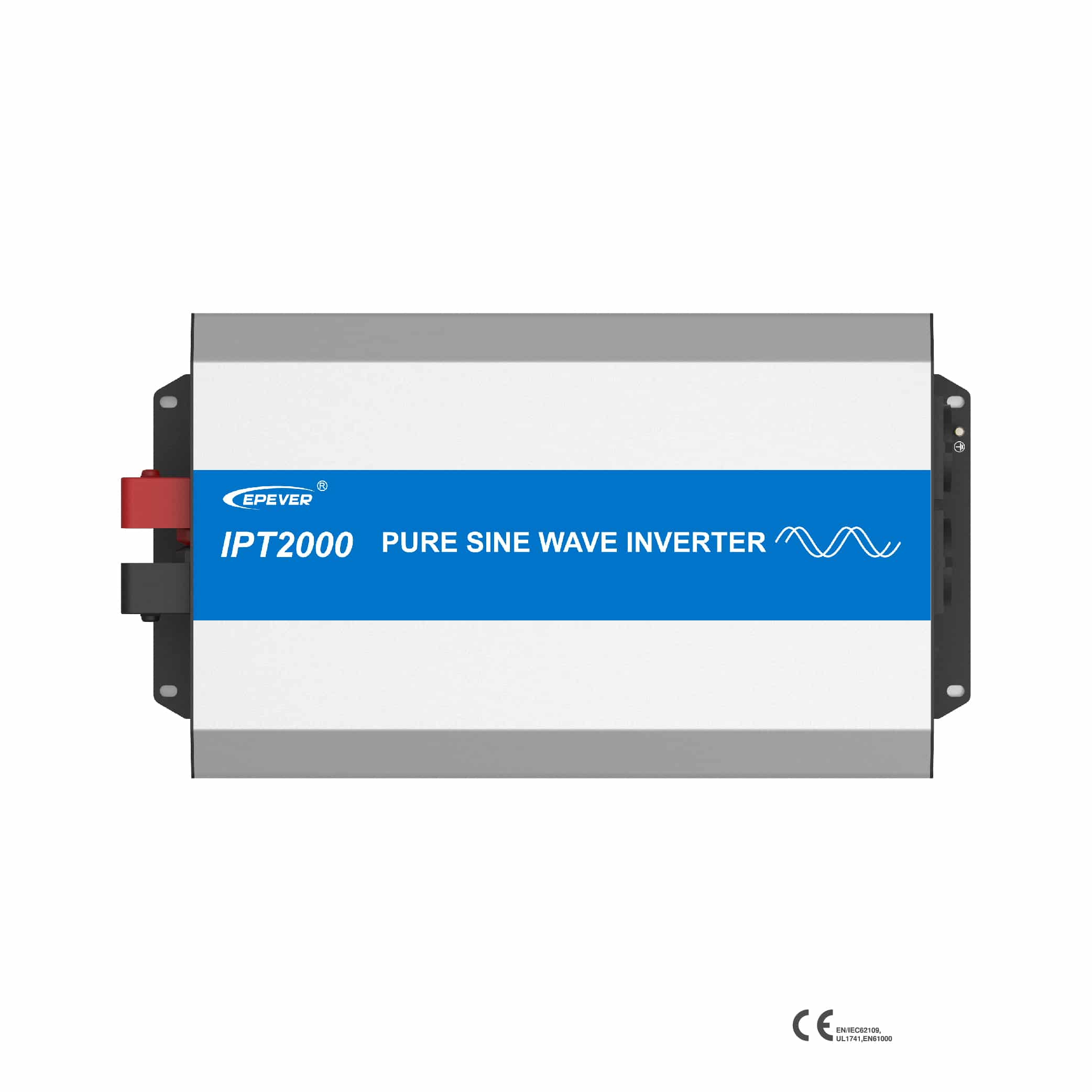

IPT Series (110/120VAC) 350~4000W Pure Sine Wave Inverter
The IPT series, a high-frequency sine wave inverter, adopts a fully digital intelligent design and a voltage-current dual closed-loop control algorithm. Featured with fast response, high conversion efficiency, low Total Harmonic Distortion(THD), and high reliability running, this series can be widely used in the DC-AC off-grid systems (such as vehicle systems, security monitoring systems, emergency lighting systems, household power systems, field power systems, and other systems requiring higher power quality).
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Inverter Type
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IPT350-21
Technical Parameters
- Continuous Output Power
- 350W@35℃@Rated input voltage
- Surge Power
- 700W@5S
- Power-on Surge Current
- < 30A
- Output Voltage
- 100VAC/110VAC (±3%); 120VAC (-7%–+3%)
- Output Frequency
- 50/60Hz ± 0.2%
- Output Wave
- Pure Sine Wave
- Output Distortion THD
- ≤ 3% (Resistive load)
- Load Power Factor
- 0.2–1 (Load power ≤ Continuous output power)
- Rated Input Voltage
- 24VDC
- Input Voltage Range
- 21.6–32VDC
- Rated Output Efficiency
- > 90.0%
- Maximum Output Efficiency
- > 90.5% (70% loads)
- Standby Current
- < 0.10A
- No-load Current
- < 0.4A
- RS485 Port
- 5VDC/200mA
Mechanical Parameters
- Input Terminal
- M6
- Dimension (L × W × H)
- 229mm × 160mm × 73mm
- Mounting Size (L × W)
- 205mm × 75mm
- Mounting Hole Size
- Φ5mm
- Net Weight
- 1.5kg
Highlights
- Pure sine wave output
- Input to output electrical isolation
- Output power factor up to 1
- Input Protection: Low-voltage, Over-voltage
- Output Protection: Overload, Short circuit, Overheating
- RS485 com. port to realize remote monitoring
- External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption
- Diversified AC output sockets
- EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved
