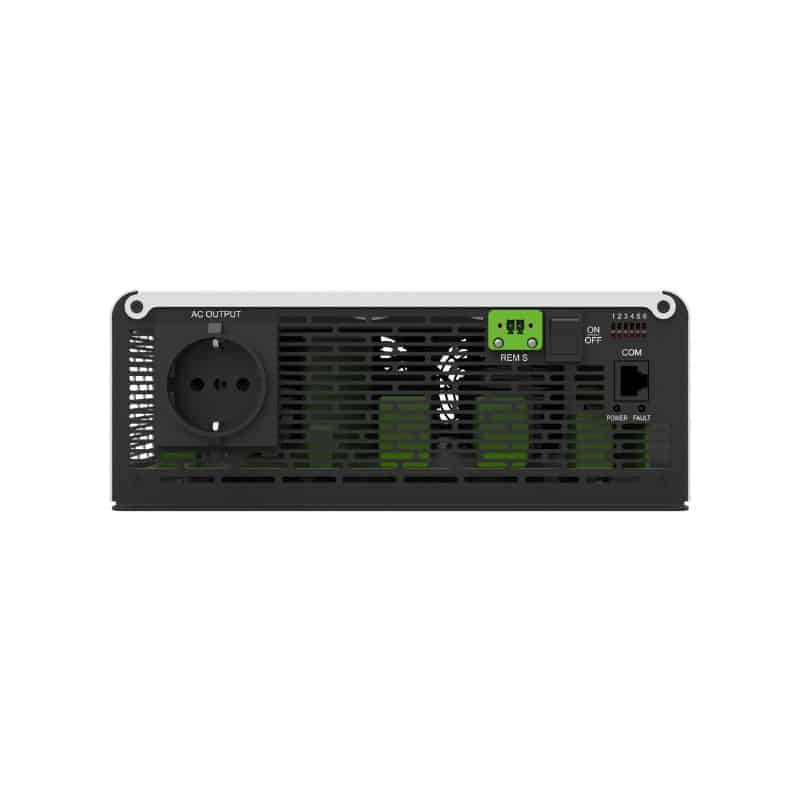

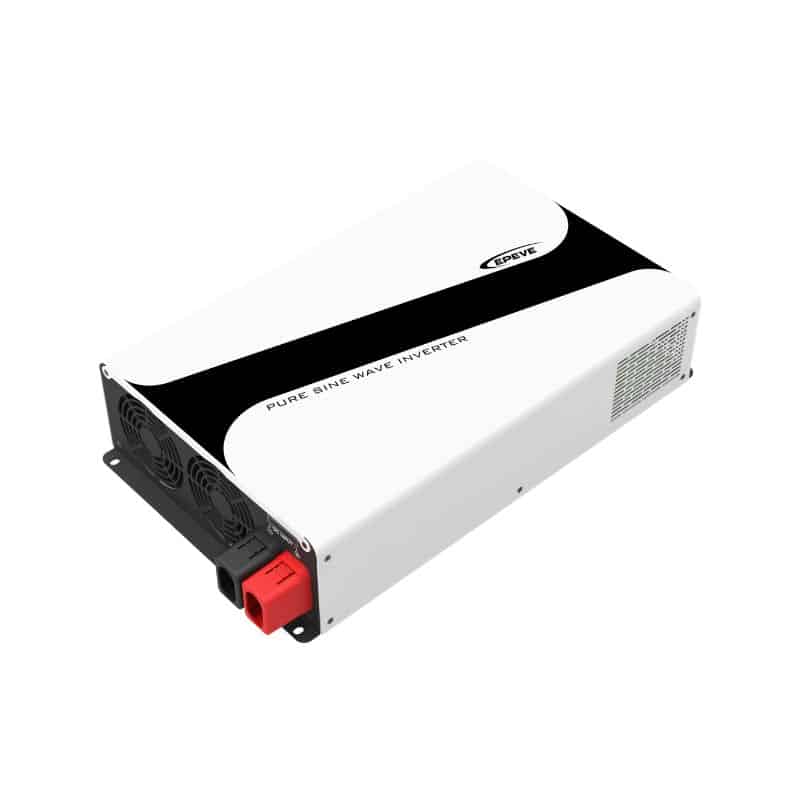

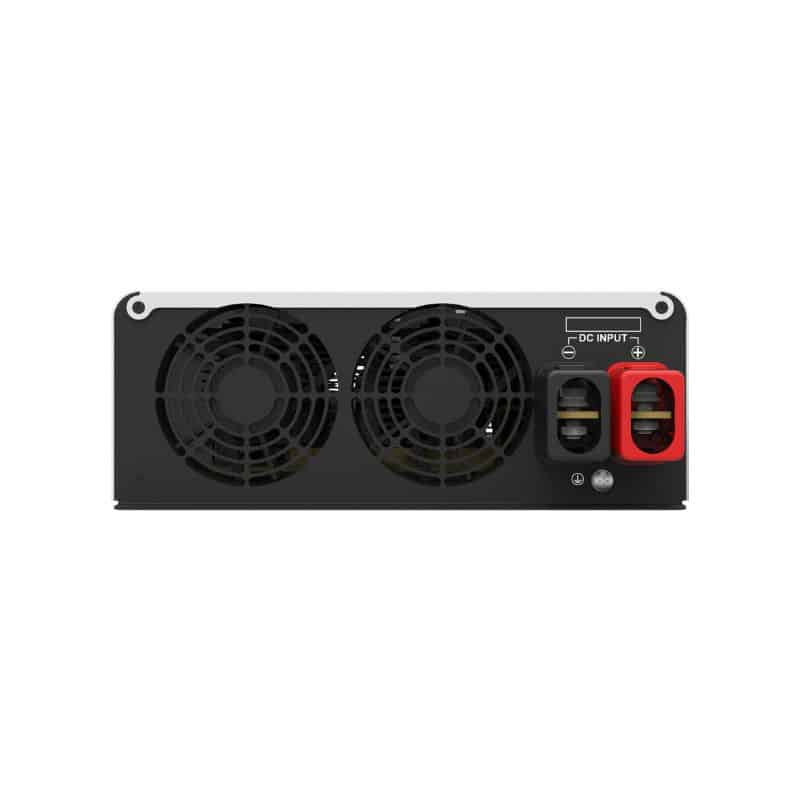

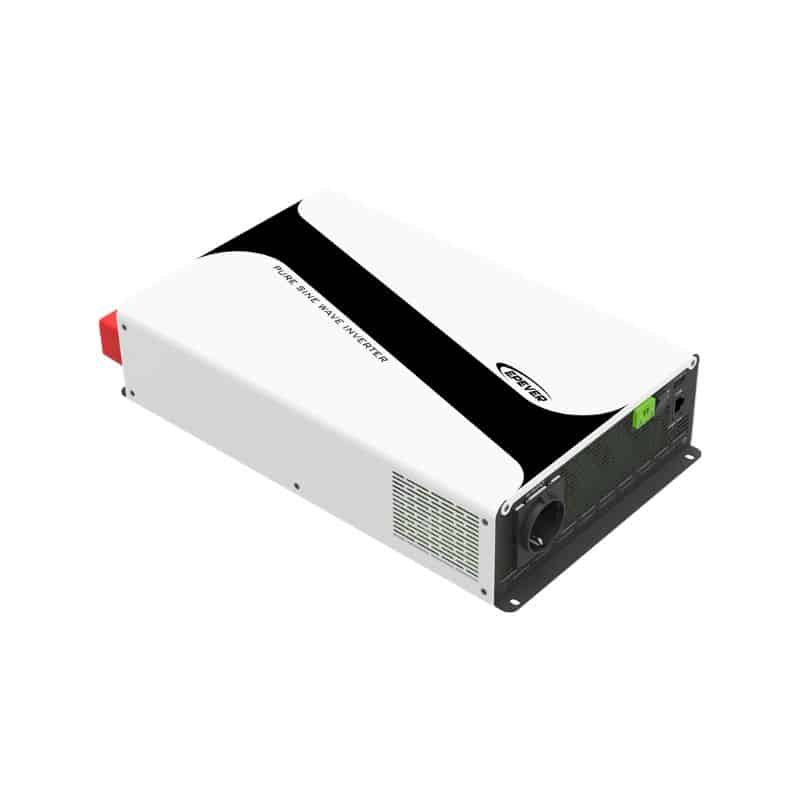

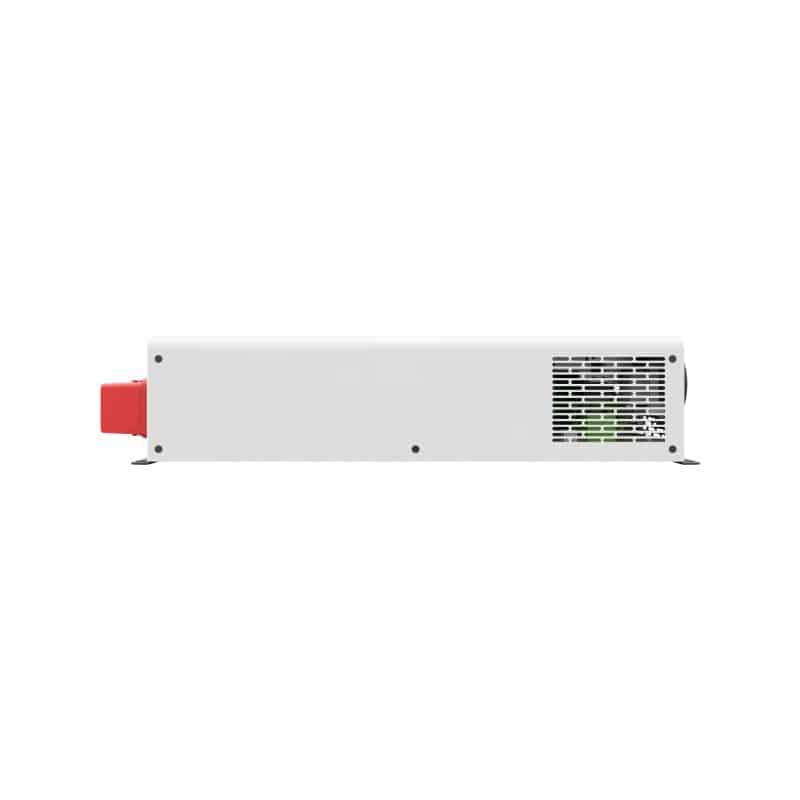

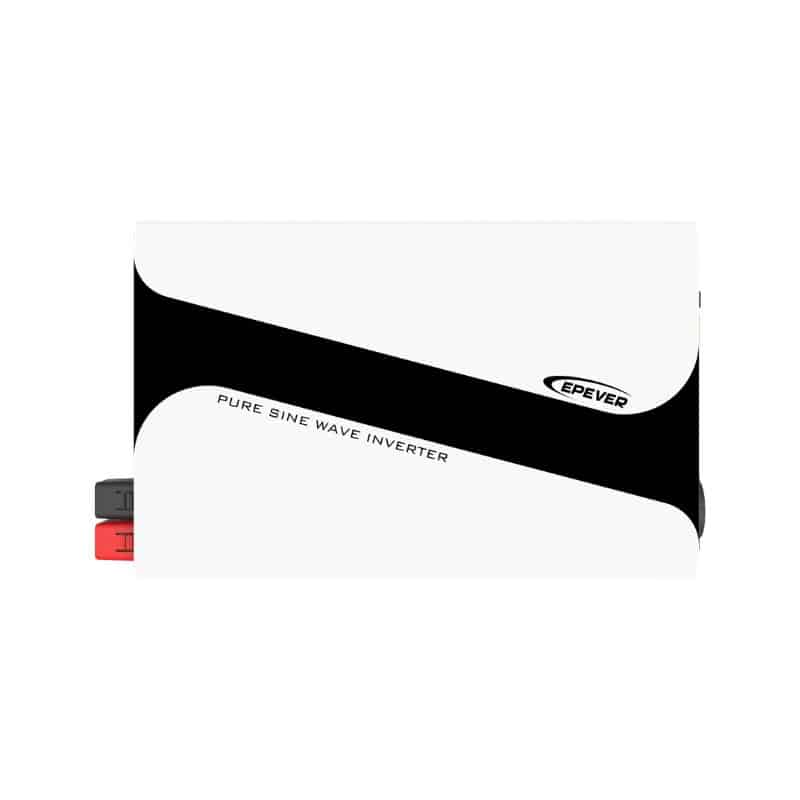

IPS Series (110/120/130VAC & 220/230/240VAC) 1000-3000W Pure Sine Wave Inverter
The EPEVER IPS Series is a high-frequency pure sine wave inverter designed for dependable DC to AC power conversion in RV, residential, and off-grid systems. It delivers stable output, supports demanding household and inductive loads, and helps ensure reliable everyday power in compact installation spaces. With low standby consumption, high conversion efficiency, RS485 communication, and multiple built-in protection functions, this series is well-suited for users who need a practical and durable inverter solution. The IPS range is available in several power options to match different off-grid energy needs.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Rated Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IPS3012
Battery input （DC）
- Rated Current
- 315.7A
- Voltage range
- 10.8VDC～16.0VDC
- Rated voltage
- 12VDC
AC Output
- Rated Output Power
- 3000W@40℃@ Rated battery voltage
- Output Frequency
- 50Hz/60Hz ± 0.2%
- Output Waveform
- Pure sine wave
- Surge Power (2s)
- 6000W
- Rated Output Current
- 13.6A
- THDu
- ≤ 3% (Resistive load)
- Power Factor
- 0.2 ~ 1 (Load power ≤ Continuous output power)
- Rated Output Voltage
- 220/230/240VAC
Environmental Parameters
- Noise
- < 60dB (Full load)
- Operating Temperature
- -20℃~60℃ (＞ 40°C Derating)
- Storage Temperature
- -35℃~70℃
- Relative Humidity
- ≤ 95% (N.C.)
- Altitude
- < 3000m (> 2,000m Derating)
- Ingress Protection
- IP20
Mechanical Parameters
- Dimensions (L × W × H)(mm)
- 437×239×90
- Mounting Hole Size
- Φ5.5mm
- Weight (Kg)
- 6.7
- Input Terminal
- M6
Efficiency
- Rated Output Efficiency
- 88%
- Max. Output Efficiency
- > 94.0%
Others
- Communication Method
- RS485
- No-load Current
- < 1.3A
- Standby Current
- < 0.3A
Highlights
- Pure sine wave output: Stable voltage, low ripple
- Strong load capability: Supports inductive loads (ACs, refrigerators, power tools)
- Compact design: < 90 mm thickness
- Communication & Integration: RS485 communication
- Built-in Protection: Reverse polarity, overvoltage/undervoltage, overload, short circuit, and overtemperature.
- Smart Cooling: Adaptive air-cooling: Responds to temperature and load
