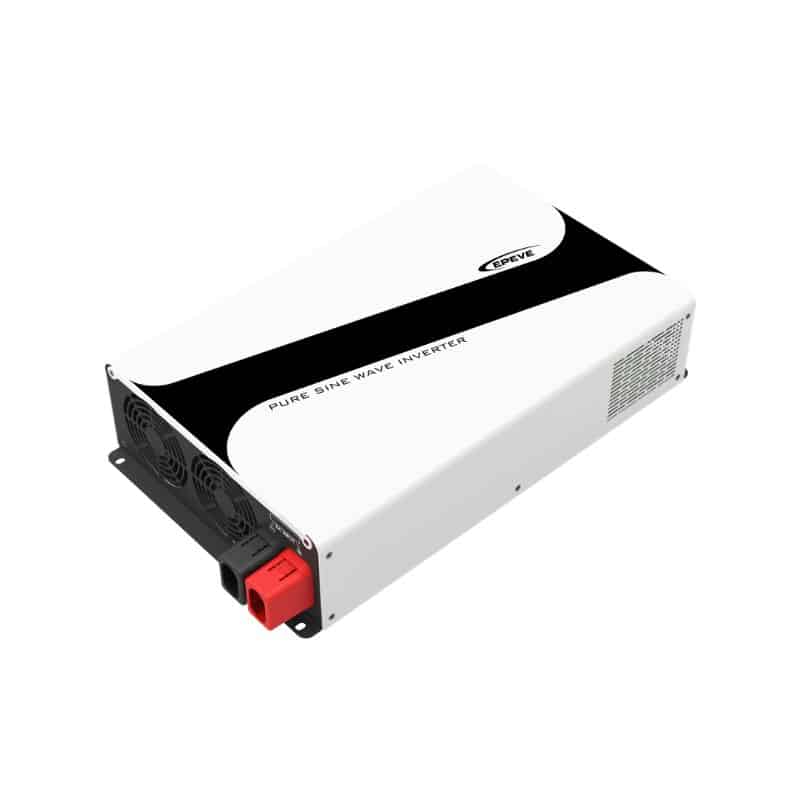

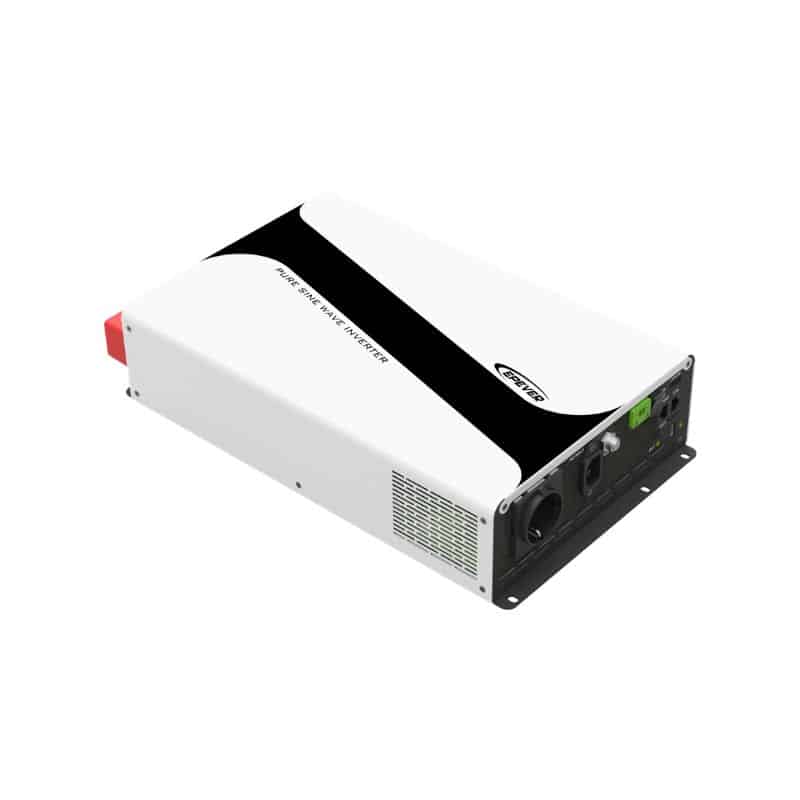

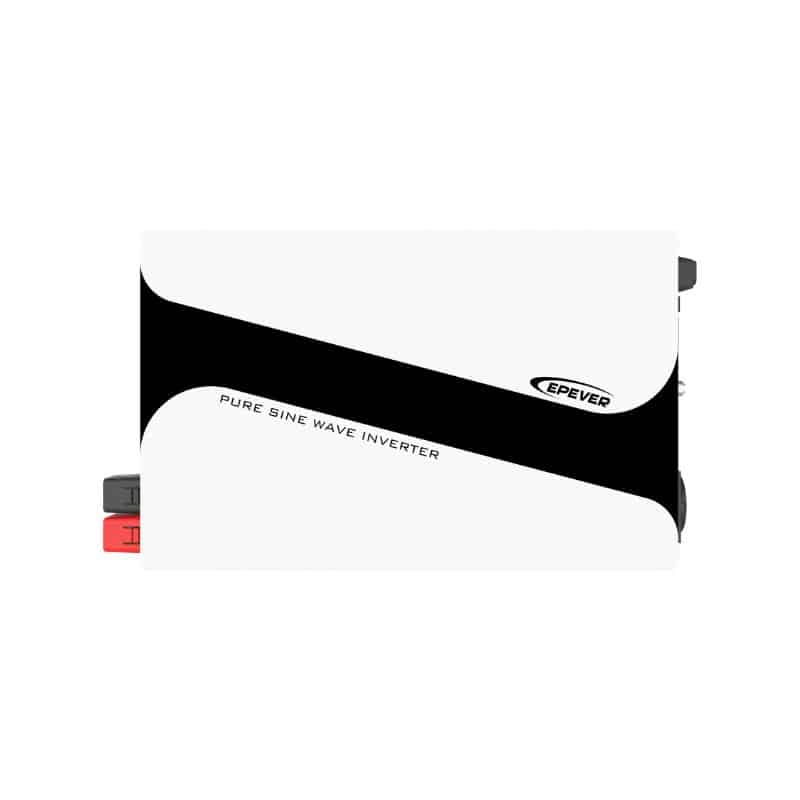

IPR Series (110/120/130VAC & 220/230/240VAC) 1000-3000W Pure Sine Wave Inverter
The EPEVER IPR Series is a pure sine wave RV inverter designed for reliable mobile and off-grid power applications. With stable AC output and automatic AC bypass switching, the series provides dependable power conversion for RV systems, travel power setups, and standalone energy systems. Built with high-frequency technology, the IPR Series features low standby consumption, high conversion efficiency, and comprehensive electronic protection functions. It also supports RS485 communication and optional CAN/LIN interfaces for enhanced system integration and monitoring. Available in 1000W, 1500W, 2000W, and 3000W models, the IPR Series is suitable for users who require stable AC power, compact installation, and flexible off-grid operation.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select every option to reveal the matching model.
Specifications
- AC Input Breaker Rating
- 15A
- Input Voltage Range
- 190VAC~265VAC
- Input Frequency Range
- 45Hz~55Hz/55Hz~65Hz
- Rated Output Power
- 3000W@40℃@ Rated battery voltage
- THDu
- ≤ 3% (Resistive load)
- Surge Power (2s)
- 6000W
- Rated Output Current
- 13.6A
- Output Waveform
- Pure sine wave
- Rated Output Voltage
- 220/230/240VAC
- Output Frequency
- 50Hz/60Hz ± 0.2%
- Power Factor
- 0.2 ~ 1 (Load power ≤ Continuous output power)
- Mounting Dimensions (L×W)(mm)
- 403×158
- Mounting Hole Size
- Φ5.5mm
- Weight (kg) Input Terminal
- 6.9
- Dimensions (L × W × H)(mm)
- 452×239×90
- Operating Temperature
- -20℃~60℃ (＞ 40°C Derating)
- Storage Temperature
- -35℃~70℃
- Relative Humidity
- ≤ 95% (N.C.)
- Altitude
- < 3000m (> 2,000m Derating)
- Ingress Protection
- IP20
- Noise
- < 60dB (Full load)
- Rated voltage
- 12VDC
- Rated Current
- 315.7A
- Voltage range
- 10.8VDC～16.0VDC
- Rated Output Efficiency
- 88.0%
- Max. Output Efficiency
- > 94.0%
- No-load Current
- < 1.3A
- Standby Current
- < 0.3A
- Communication Method
- RS485/CAN(RV-C)/LIN/BMS/Bluetooth/WIFI
Highlights
- Pure sine wave output: Stable voltage, low ripple
- Strong load capability: Supports inductive loads (ACs, refrigerators, power tools)
- Compact design: < 90 mm thickness
- Power Supply Flexibility: Automatic AC switching: AC input powers load when available
- Communication & Integration: RS485 standard; Optional CAN/LIN
- Built-in Protection: Reverse Polarity; Over/Undervoltage; Overload; Short Circuit; Overtemperature
- Adaptive air-cooling: Responds to temperature and load
