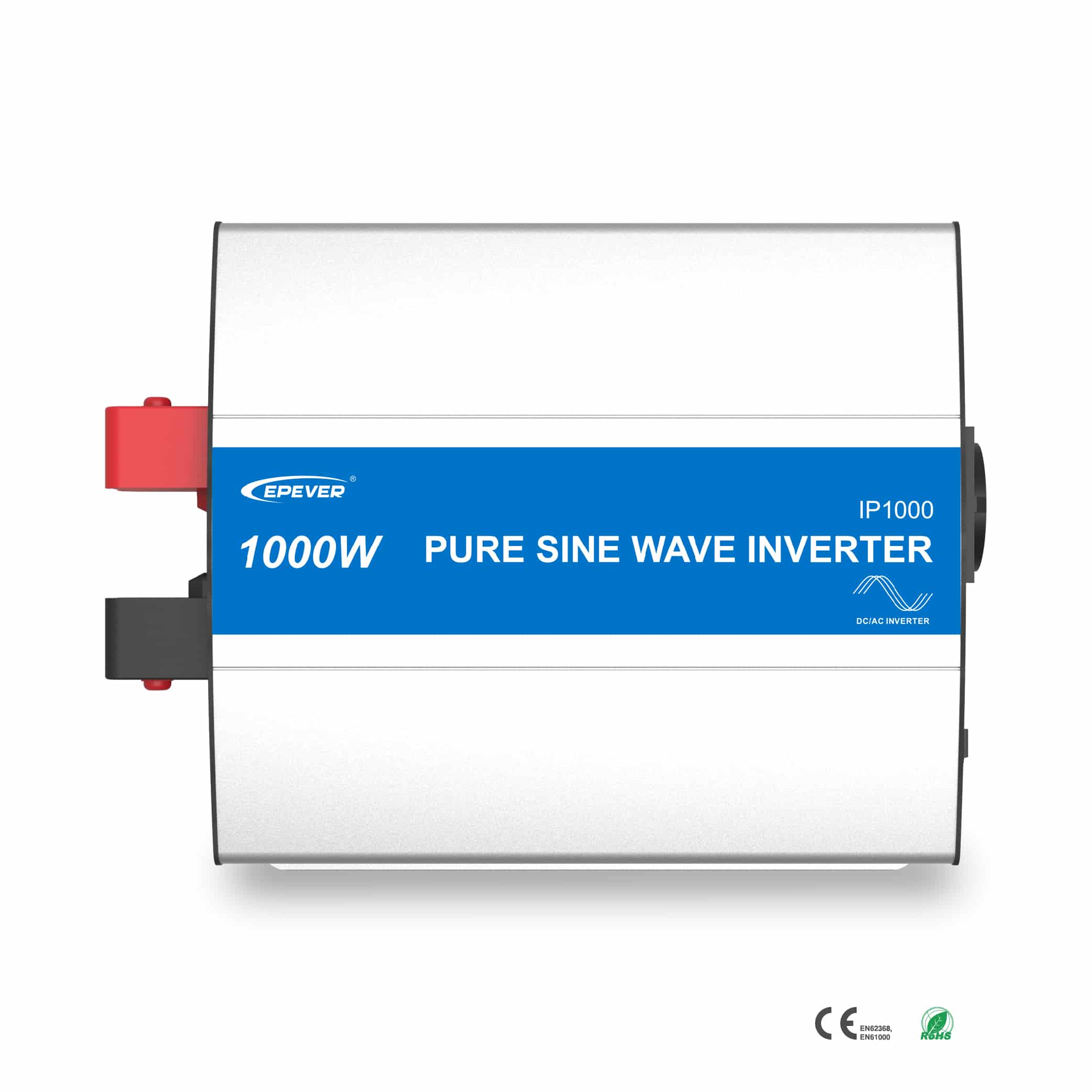

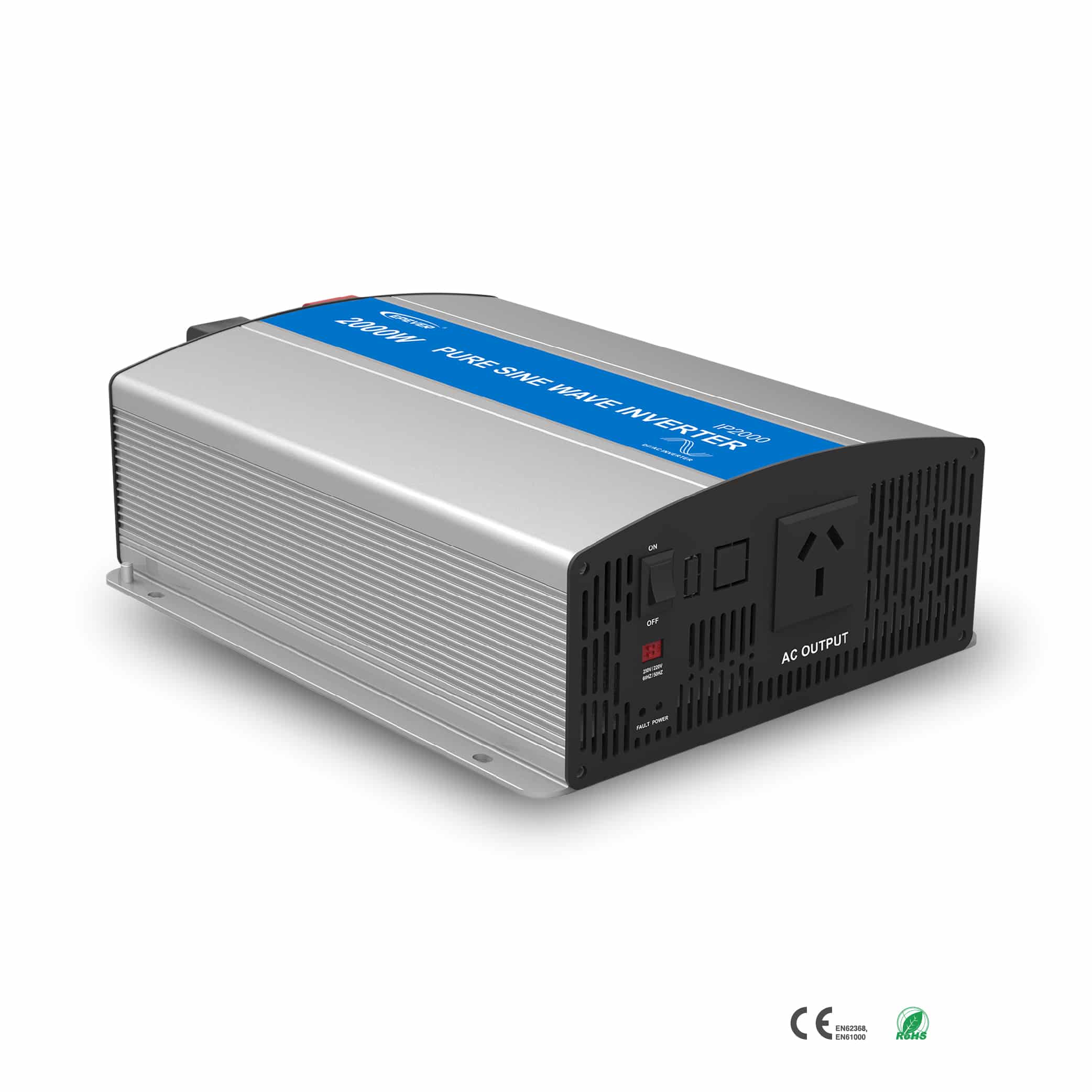

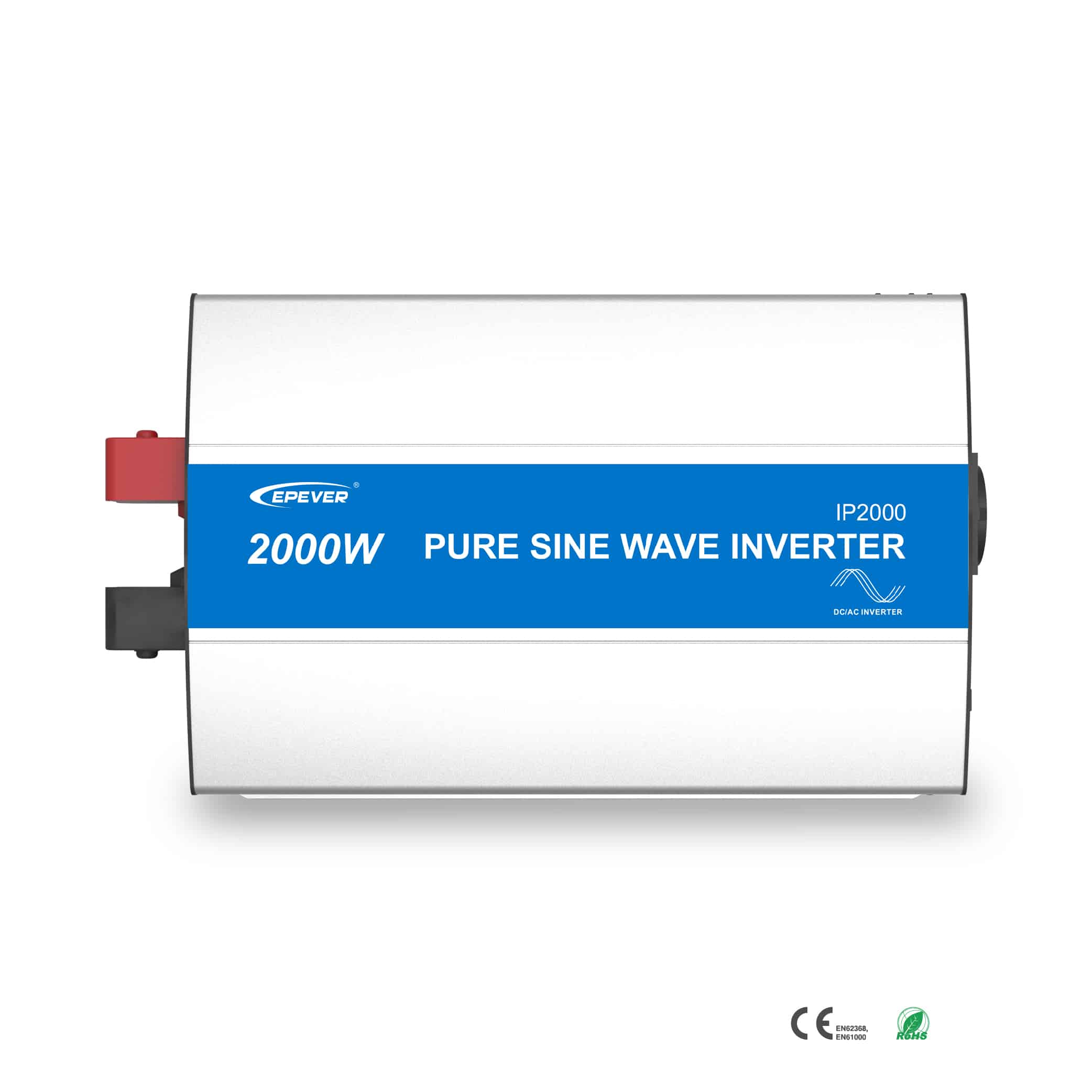

IPower Series(110/120VAC) 350~2000W Pure Sine Wave Inverter
IPower series is a pure sine wave inverter that can convert 12/24/48VDC to 110/120VAC. The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IP2000-21
Specifications
- Continuous output power
- 1600W
- Output power 15 min.
- 2000W
- Surge power
- 3200W
- Output voltage
- 110VAC(±5%) 120VAC(-10%～+5%)
- Output frequency
- 50/60±0.1Hz
- Output wave
- Pure sine wave
- Output distortion THD
- THD≤5%
- Load power factor
- 0.2-1(Load VA ≤ Continuous output power)
- Rated input voltage
- 24VDC
- Input voltage range
- 21.6～32VDC
- Input surge voltage
- ＜40VDC
- Max. output efficiency
- 94%
- No-load current
- ＜0.6A
- USB output
- 5VDC/Max.1A
- RS485 com. port
- 5VDC/200mA
- Dimension(LxWxH)
- 326.1×231.5×98.5mm
- Mounting dimension
- 208×219.5mm
- Net weight
- 4.6kg
- Operating temperature range
- -20℃~ +45℃
- Relative humidity
- < 95%(N.C.)
- Enclosure
- IP20
Highlights
- Safe design with input and output electrical isolation
- Adoption of advanced SPWM technology, pure sine wave output
- Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
- Output frequency 50/60Hz, setted by DIP switch
- LED indicators for working and fault status
- Lower No-load consumption
- Max. efficiency up to 95%
- Input protection: Over voltage protection, low voltage protection
- Output protection: Over load protection, short circuit protection
- Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.
