IPower-Plus Series(110/120VAC) 350~4000W Pure Sine Wave Inverter
IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 110V/120V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 4000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places that require high-quality electrical power.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IP500-11-Plus
Technical Parameters
- Continuous Output Power
- 500W@35℃@Rated input voltage
- Surge Power
- 1,000W@5S
- Power-on Surge Current
- < 50A
- Output Voltage
- 100VAC/110VAC (±3%); 120VAC (-7% to+3%)
- Output Frequency
- 50/60Hz ± 0.2%
- Output Wave
- Pure Sine Wave
- THDu
- ≤ 4% (Resistive load)
- Load Power Factor
- 0.2 to 1 (Load power ≤ Continuous output power)
- Rated Input Voltage
- 12VDC
- Input Voltage Range
- 10.8 to 16.0VDC
- Rated Output Efficiency
- > 87.5%
- Maximum Output Efficiency
- > 90.0% (40% loads)
- Standby Current
- < 0.15A
- No-load Current
- < 0.8A
- USB Port
- 5VDC/Max. 1A
- RS485 Port
- 5VDC/200mA
Mechanical Parameters

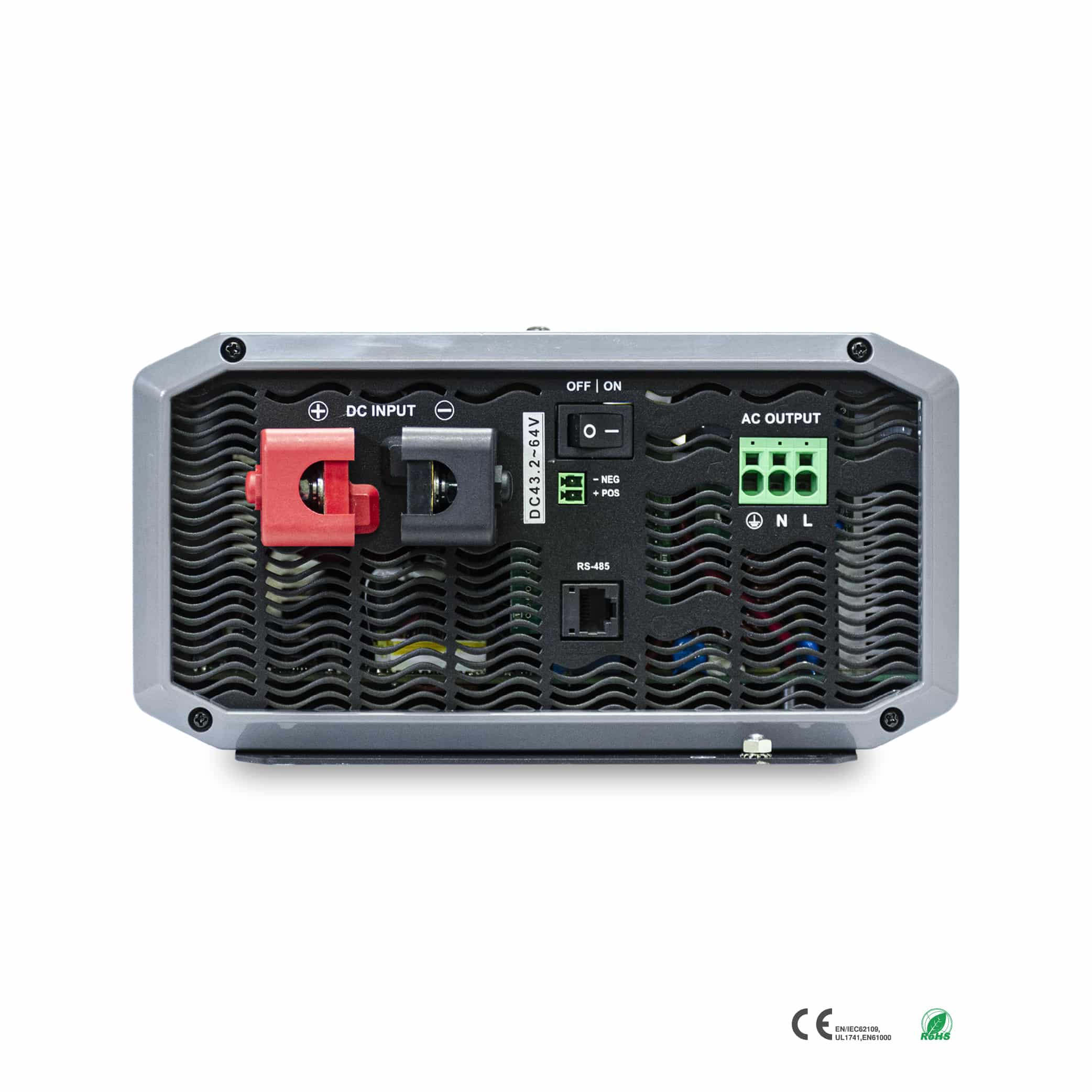

- Input Terminal
- M6
- Dimensions (L × W × H)
- 286mm × 163.5mm × 78mm (with decorative cover); 286mm × 160mm × 78mm (without decorative cover)
- Mounting Dimensions (L × W)
- 262mm × 75mm
- Mounting Hole Size
- Φ5mm
- Net Weight
- 2.00kg
Certification
- Safety
- EN/IEC62109-1, EN/IEC62109-2, UL1741, UL458, CSA C22.2#107.1
- EMC (Electro Magnetic compatibility)
- EN/IEC61000-6-1, 2, 3, 4 FCC 47 CFR Part 15, Subpart B
- RoHS
- IEC62321-3-1
Highlights
- Pure sine wave output
- Input to output electrical isolation
- Digital dual closed-loop control of voltage and current
- Input surge current suppression for lithium battery systems
- Output power factor up to 1
- Simple system wiring & 180 degrees rotating LCD
- Input Protection: Reverse polarity, Low-voltage, Over-voltage
- Output Protection: Overload, Short circuit, Overheating
- Phone and PC remote control through RS485 port
- Extra external switch port
- Safety (EN/IEC62109) & EMC approved by international standards
