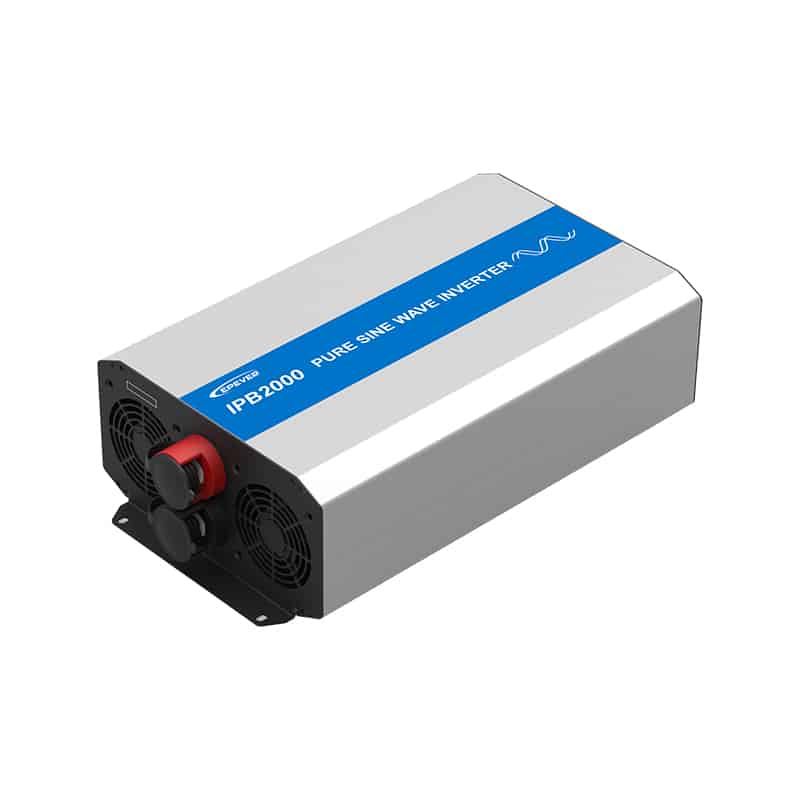

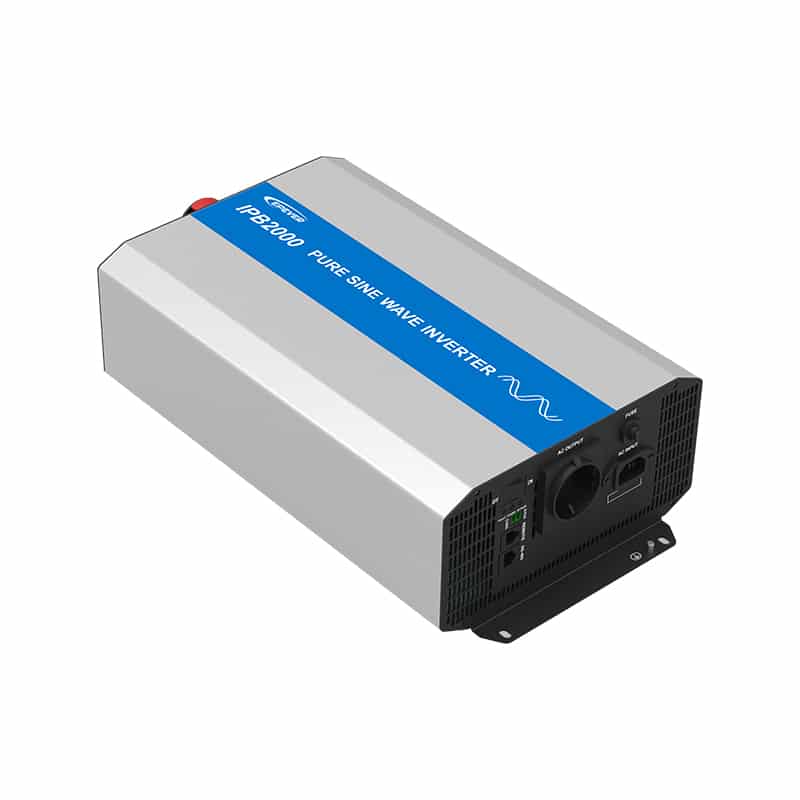

IPB Series(220/230/240VAC) 500~3000W Pure Sine Wave Inverter
EPEVER IPB series pure sine wave inverter is a high-frequency inverter with a utility bypass function, meeting the requirements of inverter output or bypass power supply. The advanced voltage-current dual closed-loop control algorithm achieves precise power control, enhancing the stability and efficiency of the inverter. The IPB series features fast response, high conversion efficiency, and low Total Harmonic Distortion(THD). It can be applied in DC-AC solar off-grid systems. You can enjoy reliable power in your house, RV, or outdoor camping with EPEVER IPB anywhere, anytime.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Battery Type
Inverter Output Voltage
Bypass Function
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: IPB500-12
Specifications
- AC Input Voltage Range
- 190~265VAC
- Fast-acting Fuse① Rated Current
- 3A
- AC Input Frequency Range
- 45Hz~55Hz/55Hz~65Hz
- Battery Rated Voltage
- 12VDC
- Battery work voltage range
- 10.8 ~ 16.0VDC
- Battery Rated Input Current
- 46.7A
- Continuous output power
- 500W@35℃@Battery Rated Voltage
- 5-second Transient Surge Output Power
- 1000W
- Inverter Output Voltage
- 220VAC (±3%); 230VAC (-6%~+3%); 240VAC (-9%~+3%)
- Inverter Frequency
- 50/60Hz ± 0.2%
- Output Voltage Waveform
- Pure Sine Wave
- Output Voltage Harmonic Distortion Rate
- ≤ 3% (Resistive load)
- Load power factor
- 0.2 ~ 1 (Load power ≤ Continuous output power)
- Maximum Output Current
- 4.6A
- Rated Output Current
- 2.3A
- Rated Output Efficiency②
- 90.20%
- Maximum output efficiency
- > 91.0% (40% loads)
- Idle Current
- < 0.15A
- No-load current
- < 0.9A
- RS485 Communication Port
- 5VDC/200mA
Mechanical Parameters
- Input Terminal
- M6
- Dimension (Length x Width x Height)
- 335 × 160 × 73mm
- Mounting size (Length x Width)
- 311 × 75mm
- Mounting Hole Size
- Φ5mm
- Net Weight
- 2.3kg
Environment parameters
- Work Temperature Range
- -20℃ ~ +60℃ (Refer to the Derating Curve)
- Storage Temperature Range
- -35 ℃ ~ +70 ℃
- Relative Humidity
- ≤ 95% (N.C.)
- Enclosure
- IP20
- Altitude
- < 5000m (If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.)
Highlights
- Pure sine wave output
- Input to output electrical isolation
- Utility bypass automatic switching function (utility supplies load when the utility is normal)
- Output power factor up to 1
- Input Protection: Low-voltage, Over-voltage
- Output Protection: Overload, Short circuit, Overheating
- RS485 com. port to realize remote monitoring
- External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption
