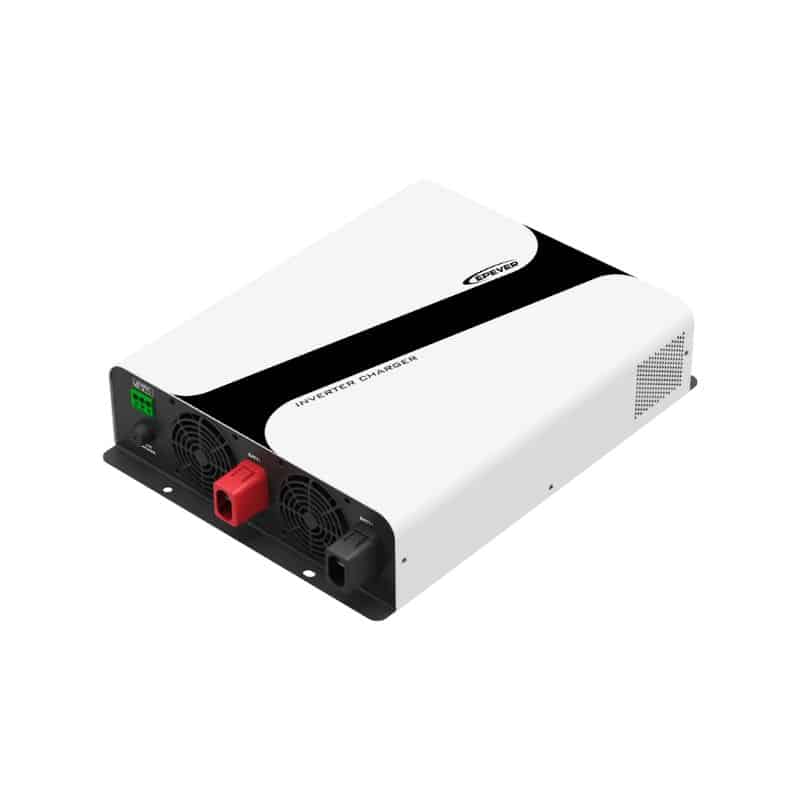

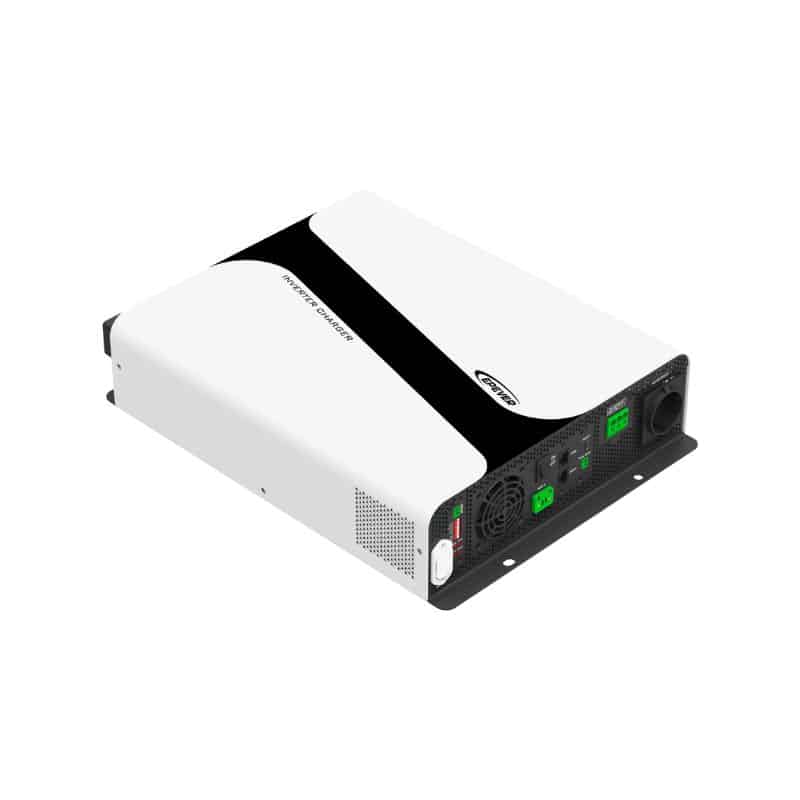

ICR Series (230VAC) 1000–3000W Inverter/Charger
ICR Series is a next-generation inverter/charger built for RV power systems, combining charging and AC supply in one compact unit. As a 12V RV inverter charger, it integrates shore power charging, AC pass-through (bypass mode), and independent inverter output to keep onboard loads powered both on-grid and off-grid. It delivers stable 230VAC pure sine wave output with <10ms UPS-level transfer time, and offers 1000W, 2000W, and 3000W models to match different RV load demands. For smarter monitoring and integration, it supports Modbus (RS485) with optional WiFi/Bluetooth modules, and is designed to work smoothly with RV system setups and generators.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Grid Type
Rated Utility Input Power (charging + Bypass)
Maximum Battery Charging Current
Rated Output Power
Rated Battery Voltage
Inverter Output Voltage
Communication
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: ICR3012
Utility Input
- Rated Input Power (Charging + Bypass)
- 4,500W
- Input Frequency Range
- 45–65Hz
- Rated Input Voltage
- 230VAC
- Input Voltage Range
- 190–265VAC
Inverter Output
- Output Voltage Waveform
- Pure Sine Wave
- Output Voltage Level
- 230VAC ± 3%
- Switch Time
- < 10ms
- Rated Output Power
- 3,000W
- Output Frequency Level
- 50Hz
- Transient Surge Output Power
- 2*Rated output power (5S)
- THDu
- < 3%
Environment parameters
- Operating Temperature
- -20℃ to +65℃
- Storage Temperature
- -25℃ to +70℃
- Relative Humidity
- < 95% (N.C.)
- Altitude
- 4,000m (> 2,000m derating)
- Ingress Protection
- IP20
Others
- Static Loss
- < 6W
- No-load Loss
- < 16W
- Fast-charging Type-C
- 5/9/12/15VDC-3A, 20V-3.25A, MAX 65W
Battery (DC)
- Voltage Range
- 10.8V–16V
- Rated Voltage
- 12V
- Maximum Charging Current
- 150A
Certifications
- EMC
- IEC 61000-6-2, IEC 61000-6-4, IEC 61000-3-2, IEC 61000-3-3; EN IEC 61000-6-2, EN IEC 61000-6-4, EN IEC 61000-3-2; EN 61000-3-3
- Safety Compliance
- IEC 62109-1, IEC 62109-2; EN 62109-1, EN 62109-2
- RoHS
- IEC 62321-5, IEC 62321-7, IEC62321-12
Mechanical Parameters
- Dimensions (L × W × H)(mm)
- 319 × 420 × 92
- Weight (Kg)
- 8.6
Highlights
- PFC technology: Less reactive power; Reduced grid demand
- Compatible with multiple generator types
- Battery compatibility: Adjustable charge/discharge current
- Extend battery life: Low power consumption and LVD (Low Voltage Disconnect)
- RS485 Communication: Optional Bluetooth, WiFi, or 4G modules
- Communication interface options: 2×RS485 RS485 + CAN (RV-C) RS485 + LIN (CI-BUS)
