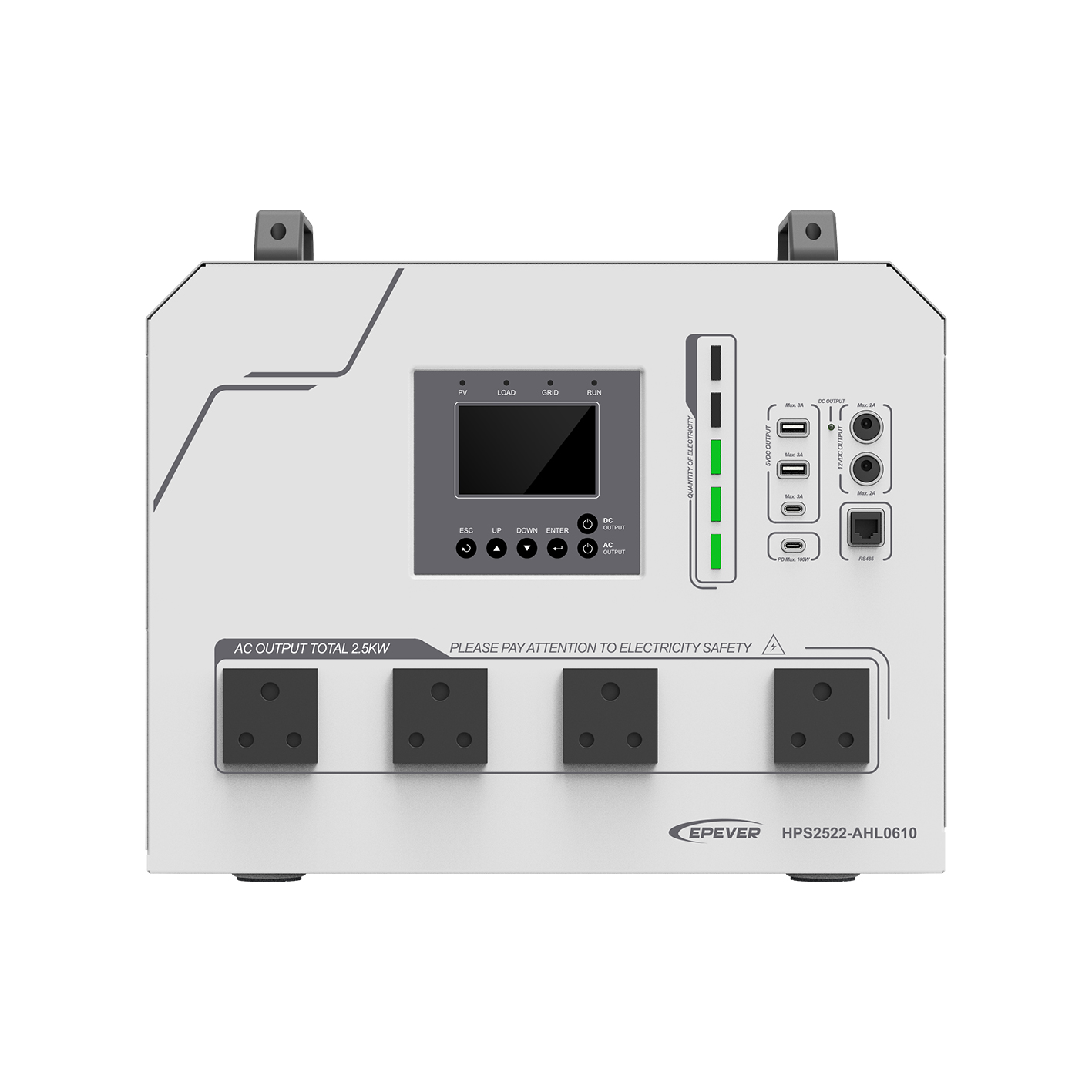

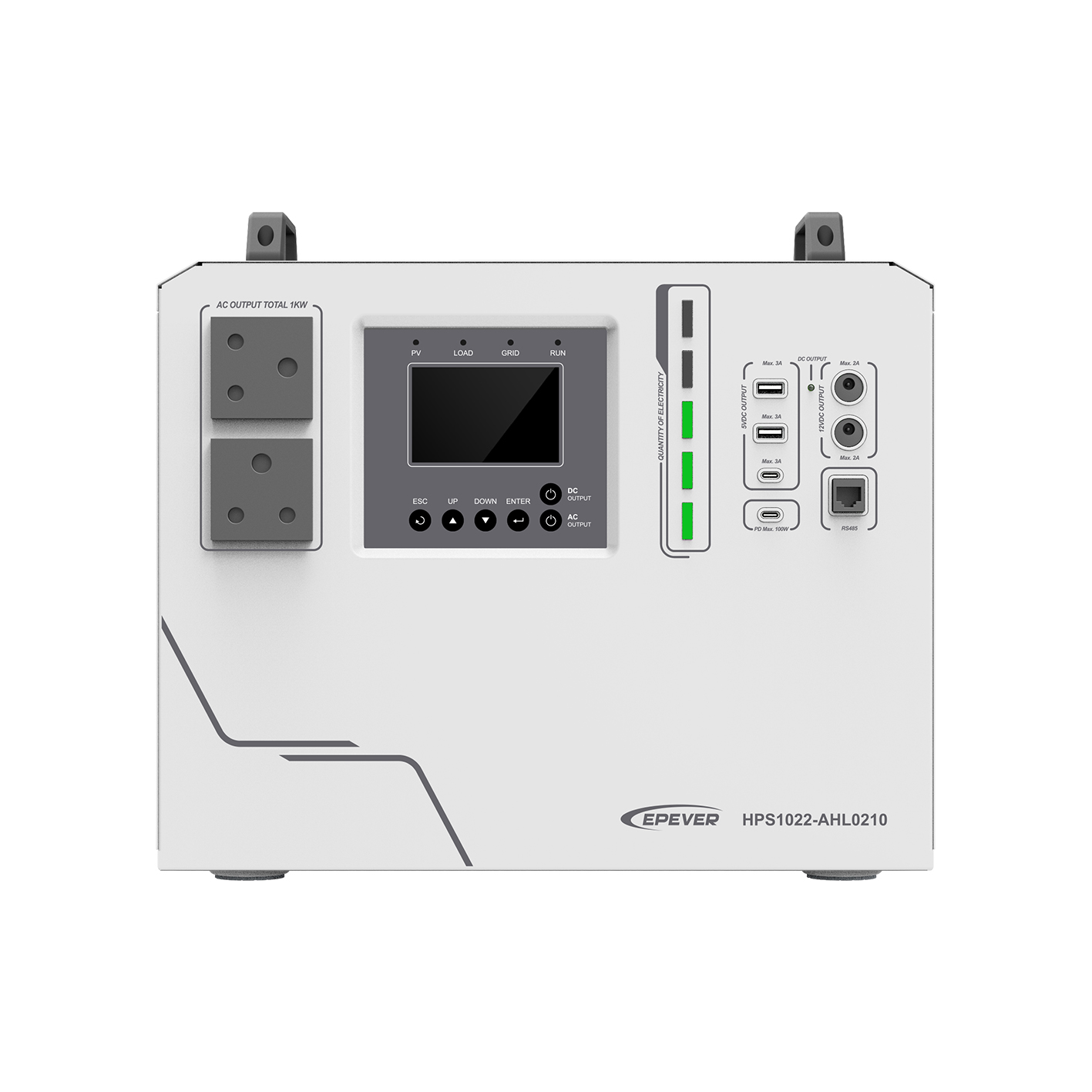

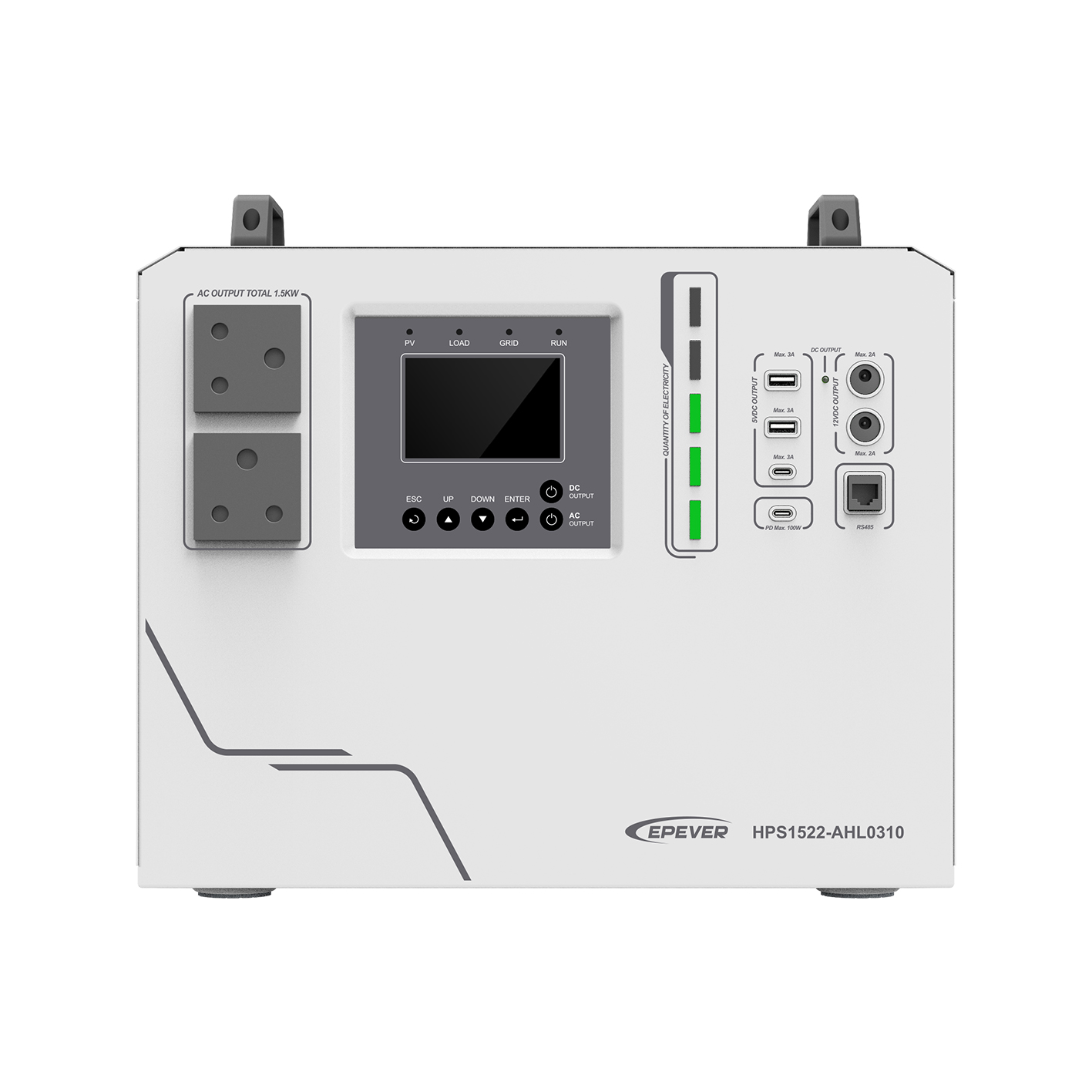

HPS-AHL Series(1000~2500W) Home Battery Backup
The HPS-AHL Series is a smart and flexible home battery backup system designed to keep your home powered—day and night. With a built-in long-life LiFePO₄ lithium battery, it stores solar energy and supports charging from solar panels, utility grid, or even a generator. Available in 220V and 120V models, it works across multiple regions and supports a variety of plug types, including EU, UK, US, AU, ZA, BR, and China standards. Whether you're in Europe, America, or Asia, you’ll find the right version for your local power system. With fast solar charging, pure sine wave output, and multiple DC outputs including USB-C for fast device charging, the HPS-AHL delivers clean, reliable power for your essentials—whether it's a fridge, laptop, or home lights. Simple to use, safe to operate, and built for real-life needs, it’s the perfect solution for emergencies, solar power storage, or just peace of mind when the grid goes down.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select every option to reveal the matching model.
Specifications
- Rated Voltage
- 120VAC
- AC Input Overload Relay
- HAVE
- Recommended Input Voltage
- 90VAC–140VAC
- Failure Voltage
- ----
- Utility Frequency
- 50Hz/60Hz
- Max. Work Current (Charging plus Bypass)
- 15A @120VAC
- Switch Response Time
- Switch Response Time-Utility to Inverter: ≤20ms; Switch Response Time-Inverter to Utility: ≤20ms
- Output Voltage Harmonic Distortion Rate
- ≤ 5% (Resistive load)
- Rated Power (@25℃)
- 2,500W
- Output Gradual Start
- Supported
- 4-second Transient Surge Output Power
- 4,500W
- Output Voltage
- 120VAC ± 3%
- Inverter Frequency
- 60Hz/50Hz ± 0.2%
- Output Voltage Waveform
- Pure sine wave
- MPPT Max. Efficiency
- ≥ 99.5%
- MPPT Voltage Range
- 24VDC–76VDC
- MPPT Input Channels
- One way
- Max. Charging Current
- 60A
- Max. Input Withstand Voltage
- 95VDC @25℃
- Solar Controller Type
- MPPT
- Max. Continuous Charging Current
- 1C
- Battery Type
- LFP8S1P
- Max. Continuous Discharging Current
- 1C
- Battery Work Voltage Range
- 21.0VDC–30.0VDC
- Battery Rated Capacity
- 102Ah
- Cycle Times
- 5,000 times
- Cell Dimension (mm)
- Length: 160.0 ± 0.8 Height: 118.5 ± 0.5 Width: 50.1 ± 0.5
- Battery Rated Voltage
- 25.6VDC
- 12V DC Output (*2)
- 12V⎓ 2A, Max. 24W/port, Total 48W
- USB-A Output (*2)
- 5V⎓ 3A, Max. 15W/port, Total 30W
- USB-C Output (*1)
- 5/9/12/15V⎓ 3A, 20V⎓ 5A, Max. 100W
- DC Output Switch
- HAVE
- LCD
- Monochrome LCD, English interface
- Warranty
- Two years
- Dimension (L × W × H)(mm)
- 427 × 325.4 × 368
- Net Weight
- 37.0kg
- Work Temperature Range
- -20℃ to 50℃
- Enclosure
- IP30
- Communication Method
- Bluetooth, RS485 (WiFi optional)
Highlights
- Excellent dust-proof performance with separate compartment design
- Built-in LiFePO4 lithium battery
- Intuitive display of battery SOC via 5-bar indicator lights
- Multiple DC output ports (5VDC/3A ports, 12VDC/2A ports, Type C ports)
- Build-in bluetooth module
- Large-sized LCD screen to monitor and modify system parameters
- Optional 4G or WiFi module to remote control the inverter/charger by the RS485 com. port
- AC input overload relay for disconnecting from the grid when the fault occurs
- Circuit breaker on PV input for equipment safety
- Circuit breaker on battery output for battery safety
- AC charging with PFC technology, high power factor for efficient energy consumption
- Bidirectional high-frequency transformer isolation topology
- Advanced MPPT technology: maximum tracking efficiency≥99.5%
- EMC design on AC output to avoid interference with AC load
- Long-term continuous operation at full power
- Pure sine wave output
- Comprehensive electronic protection
