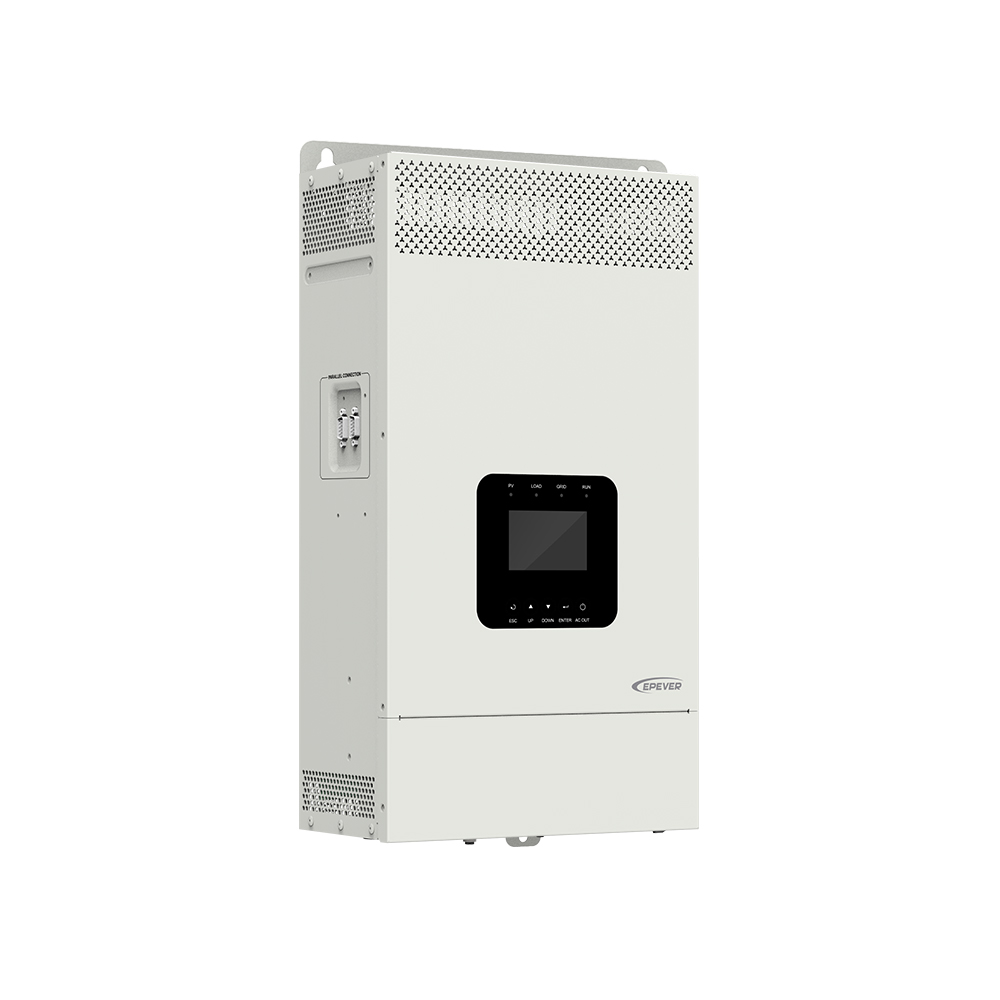

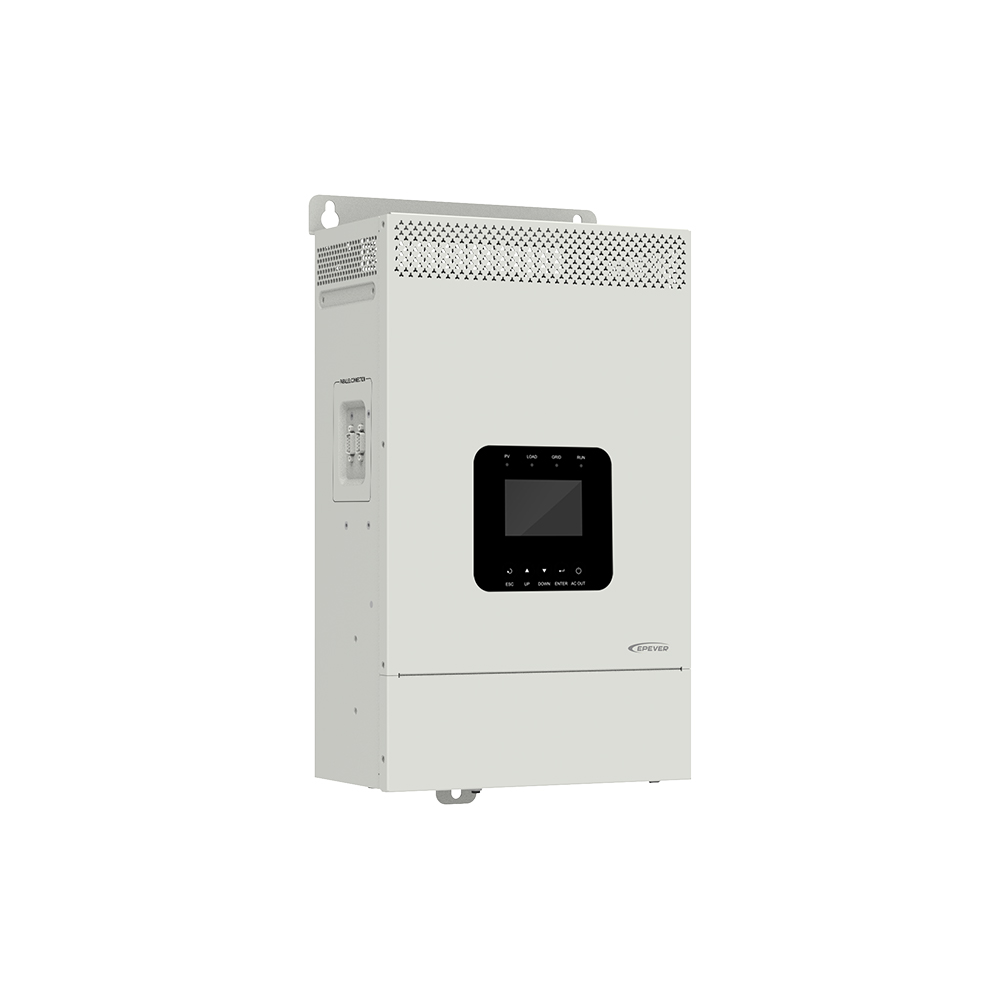

HP Series 20BR (220/230VAC) 3500W/5500W Inverter/Charger
The HP Series 20BR is an advanced hybrid inverter/charger, supporting multiple energy sources like utility, oil generator, and solar. It offers parallel operation, high reliability, and various charging modes. Featuring a large LCD screen and Modbus communication, it provides efficient energy management. With optimized MPPT technology and dual closed-loop control, it maximizes solar power utilization. This inverter ensures high-quality, stable, and reliable electricity for your needs.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Rated Inverter Power (@30℃)
Grid Type
MPPT Voltage Range
Max PV Input Power
Max PV Open Circuit Voltage
Rated Battery Voltage
Inverter Output Voltage
Inverter Type
Max. Utility Charge Current
Maximum PV Charging Current
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: HP5542-AH1050P20BR
- Rated Inverter Power (@30℃)
- —
- Grid Type
- Off-Grid
- MPPT Voltage Range
- 85V~400V
- Max PV input power
- —
- Max PV open circuit voltage
- 500V
- Rated battery voltage
- —
- Inverter Output voltage
- 220V/230V
- Inverter type
- High Frequency
- Max. utility charge current
- —
- Maximum PV charging current
- —
- Output voltage
- 220V/230V
Highlights
- Full intelligent digital energy storage equipment
- Support battery mode or non-battery mode
- Non-battery mode: simultaneously charging with solar (Main) and Utility (Assist)
- Advanced SPWM technology and pure sine wave output
- Parallel operation in single-phase or three-phase for 12 units in a standard application
- PFC technology improves power factor, reduces reactive power, and reduces the demand on the power grid capacity
- Advanced MPPT technology, with maximum tracking efficiency higher than 99.5%
- Some models support two PV inputs to improve PV utilization
- Support charging from multiple types of generators
- Battery voltage controls the output dry contact of the controller to turn on/off the diesel engine and other external equipment
- Battery charging or discharging current limit to be compatible with different types of batteries
- Maximum utility charging current settings to flexibly configure utility charging power
- With the function of historical data recording, up to 25,000, the interval of 15 minutes can be recorded for half a year (the interval time of 1s to 3,600s configurable)
- Multiple LED indicators show system status in real-time
- One-button control of AC output
- Large-size LCD display for better status monitoring
- RS485 communication port with optional WiFi, TCP, or 4G modules for remote monitoring
- Three-stage charging method to ensure battery safety
- Lithium battery communication port to perform safe charging and discharging
- Comprehensive electronic protection
- The PV input terminal of the inverter has an AFCI function, which can be set ON and OFF via the LCD
- -20℃ to +50℃ operating temperature range to meet more environmental requirements
