HP Series 20A (220/230VAC) 2000~5500W Inverter/Charger
The HP Series 20A High-efficiency Inverter/Charger is designed to maximize energy utilization in residential and hybrid power systems. With its advanced MPPT technology, this inverter/charger optimizes solar energy conversion, ensuring you harness the full potential of your solar panels. Certain models support dual PV inputs, further enhancing solar energy utilization for greater efficiency. The HP Series 20A allows seamless integration with multiple energy sources, including solar, utility, and generators. This flexibility enables users to efficiently manage energy consumption and reduce reliance on traditional power grids. Operating with pure sine wave output, it provides clean and stable power for sensitive electronics and household appliances. Equipped with a large LCD display, users can easily monitor system status and performance metrics. Comprehensive protection features ensure safety and reliability during operation. Additionally, the HP Series 20A supports parallel operation, allowing multiple units to be connected together to enhance power output scalability, making it suitable for larger applications. Designed for environments ranging from -20℃ to +50℃, the HP Series 20A meets diverse installation needs, making it an ideal choice for modern energy solutions.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select every option to reveal the matching model.
Specifications
- Parallel Function
- Yes, 12 units in standard, 16 units at most
- Inverter Rated Power (@30℃)
- 2000W
- 3-second Transient Surge Output Power
- 4000W
- Inverter Output Voltage
- 220/230VAC±3%
- Inverter Frequency
- 50/60Hz±0.2%
- Output Voltage Waveform
- Pure sine wave
- Load Power Factor
- 0.2－1(VA ≤ Rated output power)
- THDu (Total Harmonic Voltage Distortion)
- ≤3% (48V resistive load)
- Maximum Load Efficiency
- 90%
- Maximum Inverter Efficiency
- 92%
- PV Maximum Open-circuit Voltage
- 500V (At minimum operating environment temperature) 440V (At 25℃)
- MPPT Voltage Range
- 85V to 400V
- PV Maximum Input Power
- 3000W
- MPPT Input Channels
- One way
- PV Maximum Input Current
- One way, 10A
- PV Maximum Short-circuit Current
- One way, 12A
- PV Maximum Charging Current
- 40A
- MPPT Maximum efficiency
- ≥99.5%
- Utility Frequency
- 45Hz to 65Hz
- Maximum Utility Charging Current
- 40A
- Switch Response Time
- Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
- Utility Voltage
- 176VAC to 264VAC (Default) 90VAC to 280VAC (Configurable)
- Battery Rated Voltage
- 48VDC
- Battery Work Voltage Range
- 43.2VDC to 60.0VDC
- Battery Maximum Charging Current
- 40A
- No-load Losses
- <0.8A
- Standby Current
- <0.8A
- Work Temperature Range
- -20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
- Storage Temperature Range
- -25℃ to +60℃
- Enclosure
- IP20
- Relative Humidity
- < 95% (N.C.)
- Altitude
- <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
- Dimension (Length x Width x Height)
- 679mm × 291.4mm × 163mm
- Mounting size (Length x Width)
- 592mm x 200mm
- Mounting Hole Size
- Φ9mm/Φ10mm
- Net Weight
- 13.3 Kg
Highlights
- Pure sine wave output
- Supports battery or non-battery modes
- PFC technology reduces the demand on the power grid capacity
- Advanced MPPT technology, with max. tracking efficiency higher than 99.5%

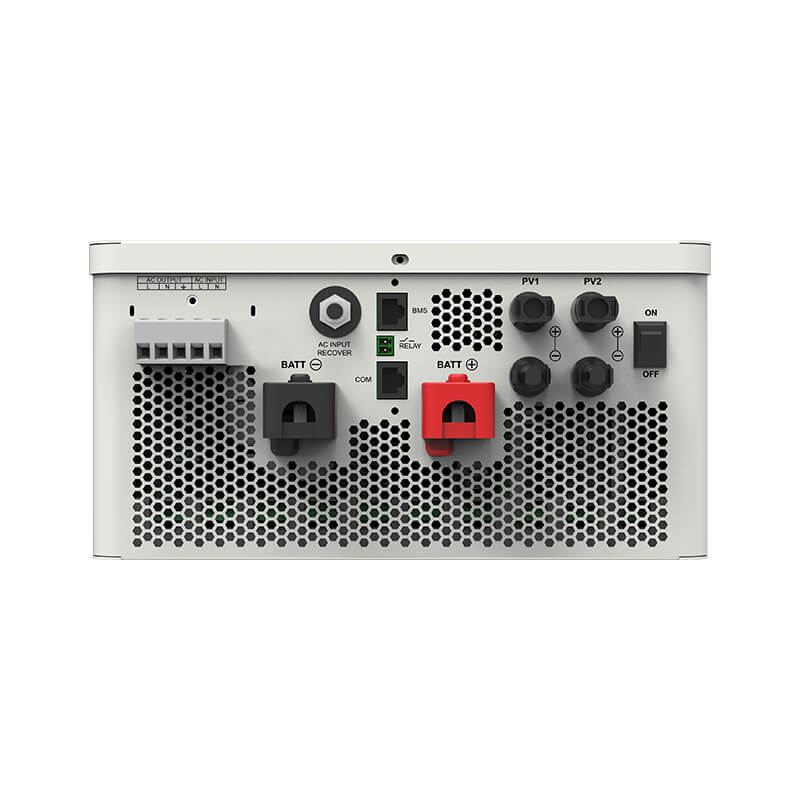

- HP5542-AH1050P20A supports two PV inputs to improve PV utilization
- Supports charging from multiple types of generators
- Battery charging or discharging current limits are compatible with various types of batteries
- Adjustable maximum utility charging current for flexible configuration of utility charging power
- Large-size LCD display for better status monitoring
- RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
- Comprehensive electronic protections
- -20℃~+50℃ operating temperature range to meet more environmental requirements
- AC output supports parallel operation, standard configuration of 12 units in parallel
- AC output parallel operation supports single-phase and three-phase settings
- With the function of historical data recording, storage capacity for 25,000 records (the interval time of 1~3600 seconds settable)
