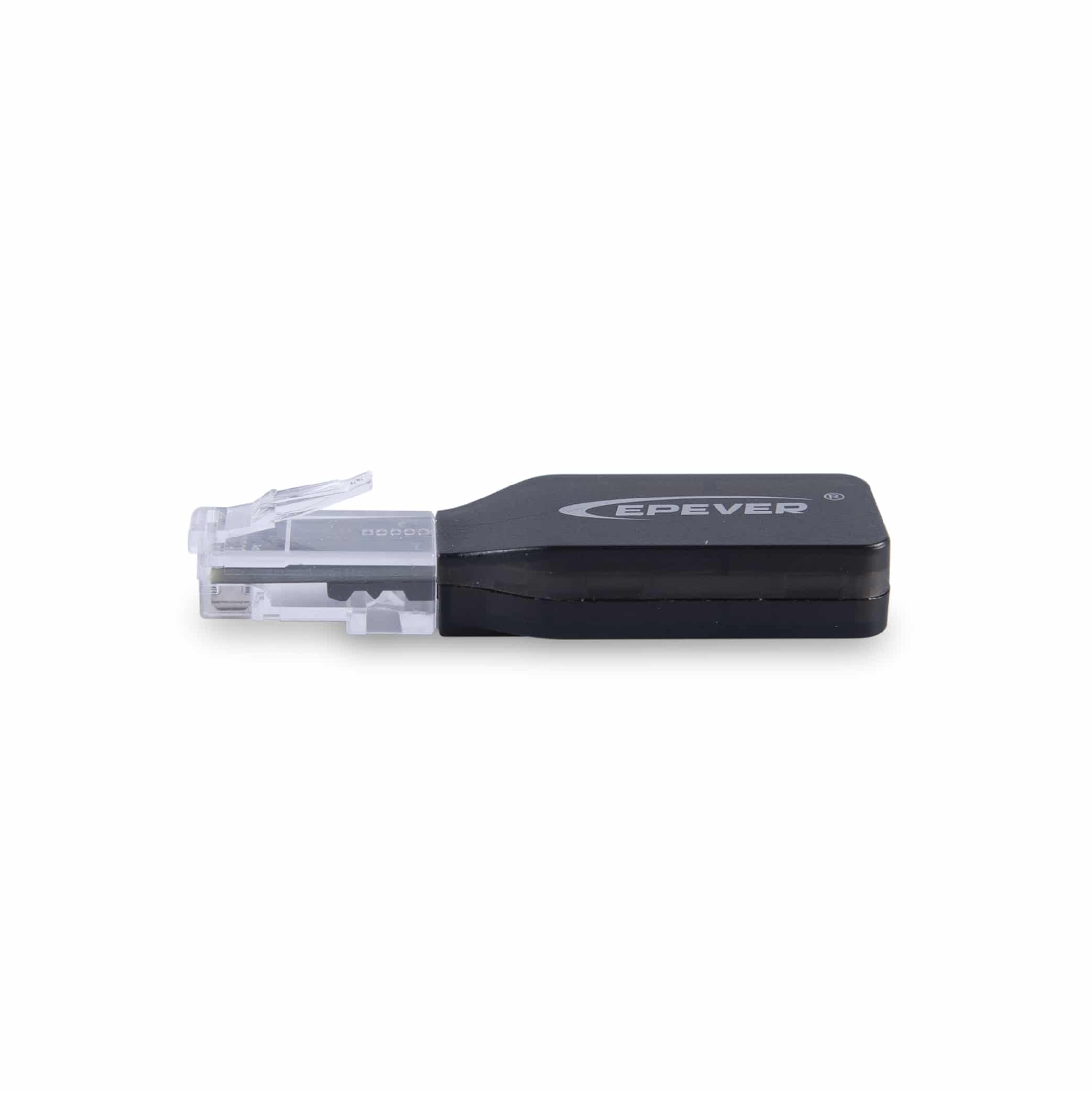

EPEVER WiFi Adapter 2.4G RJ45 D

The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens. Note: the WiFi 2.4G RJ45 D module is specifically designed to be compatible with the Solar Guardian app.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant
WiFi Adapter 2.4G RJ45 D

Configure your model

Enclosure
Working Voltage
Communication Method

Select every option to reveal the matching model.

Quantity
Delivery will be calculated at checkout

Frequently Bought Together

Recommended combinations will appear here.

Specifications

Interface Standard
EPEVER general communication standardV1-1.0
Communication Parameters
115200Bps, 8N1
Net Weight
7.7g
Communication Protocol
EPEVER communication protocol V1.1
Working Voltage
5V± 0.5V(Powered by RS485 com. port)
Power Consumption
Peak emission: 150mA; Idle: 310uA
Enclosure
IP54
Communication Method
RS485
Working Frequency
2.4 ~ 2.4835GHz
Environment Temperature
-40℃~ 85℃
Dimension
63* 19* 10mm

Highlights

  • 2.4G WiFi Networking Communication
  • Works with Controllers, Inverters, and Inverter Charger with RJ45 Interface
  • Plug-and-Play with Easy Setup
  • Communication Port Powered Directly, No External Power Required
  • Communication Distance: Up to 20 Meters
  • Support Two Working Modes: Offlfline Monitoring; WIFI Data Upload to the Cloud
