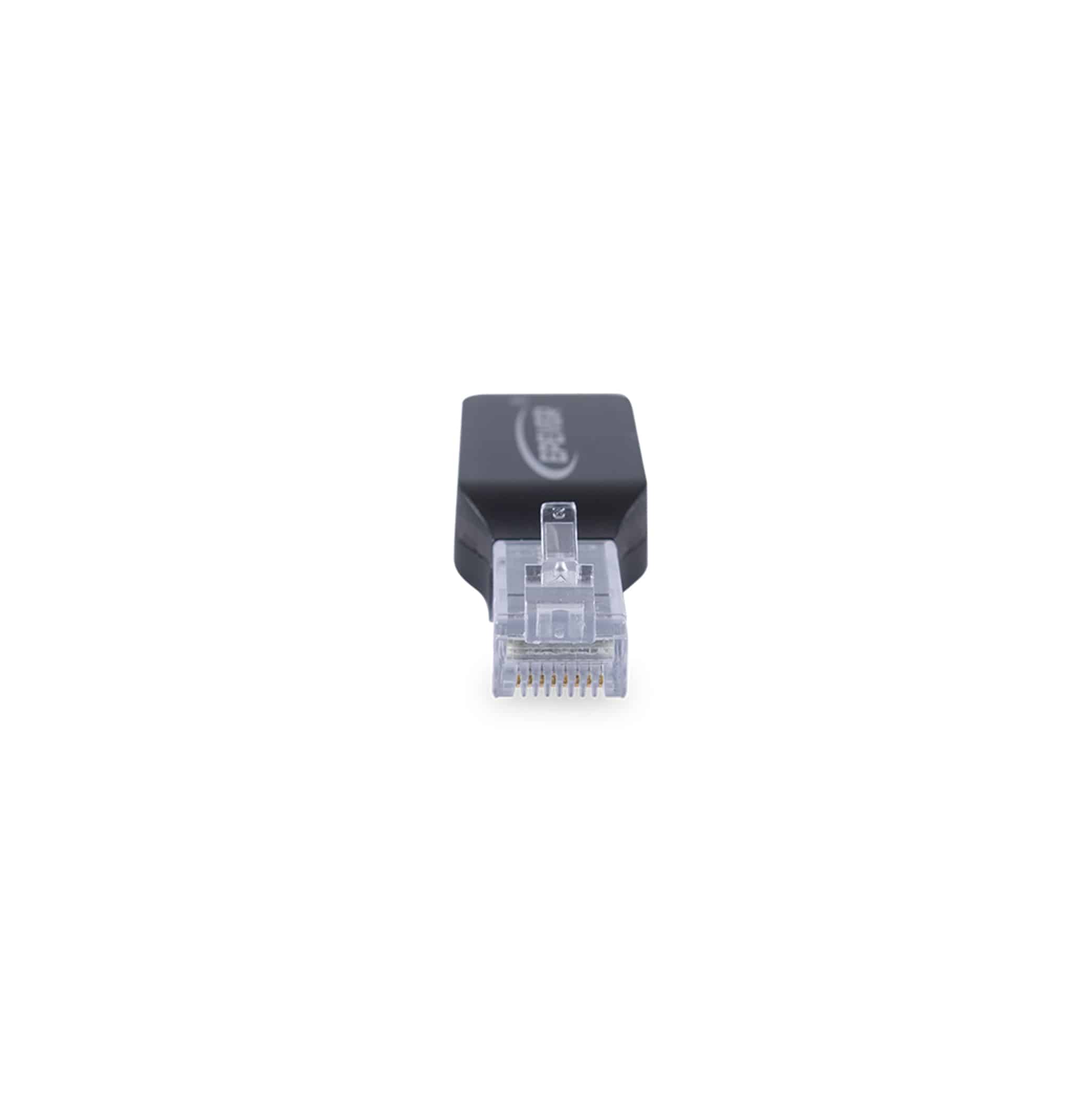

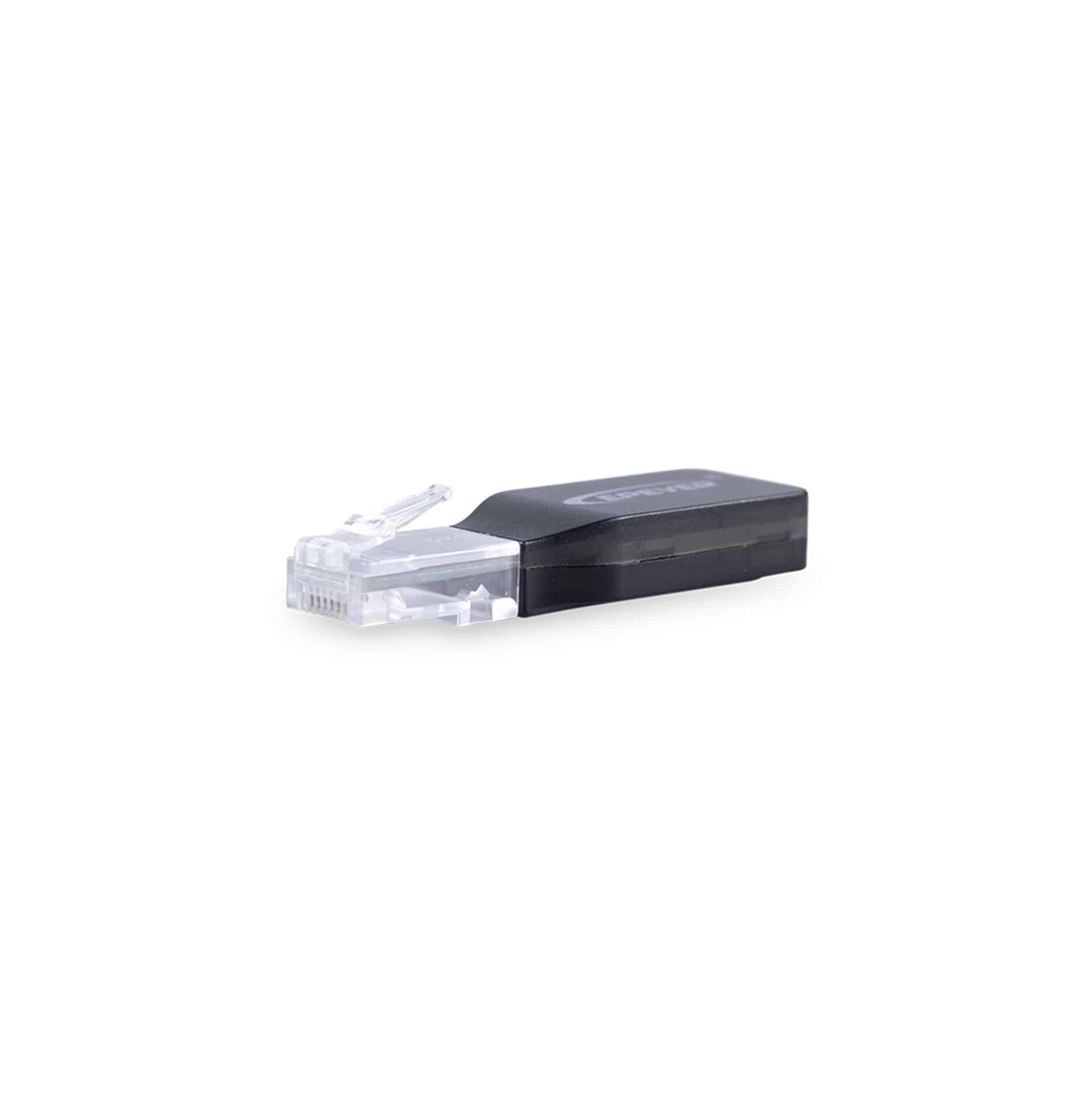

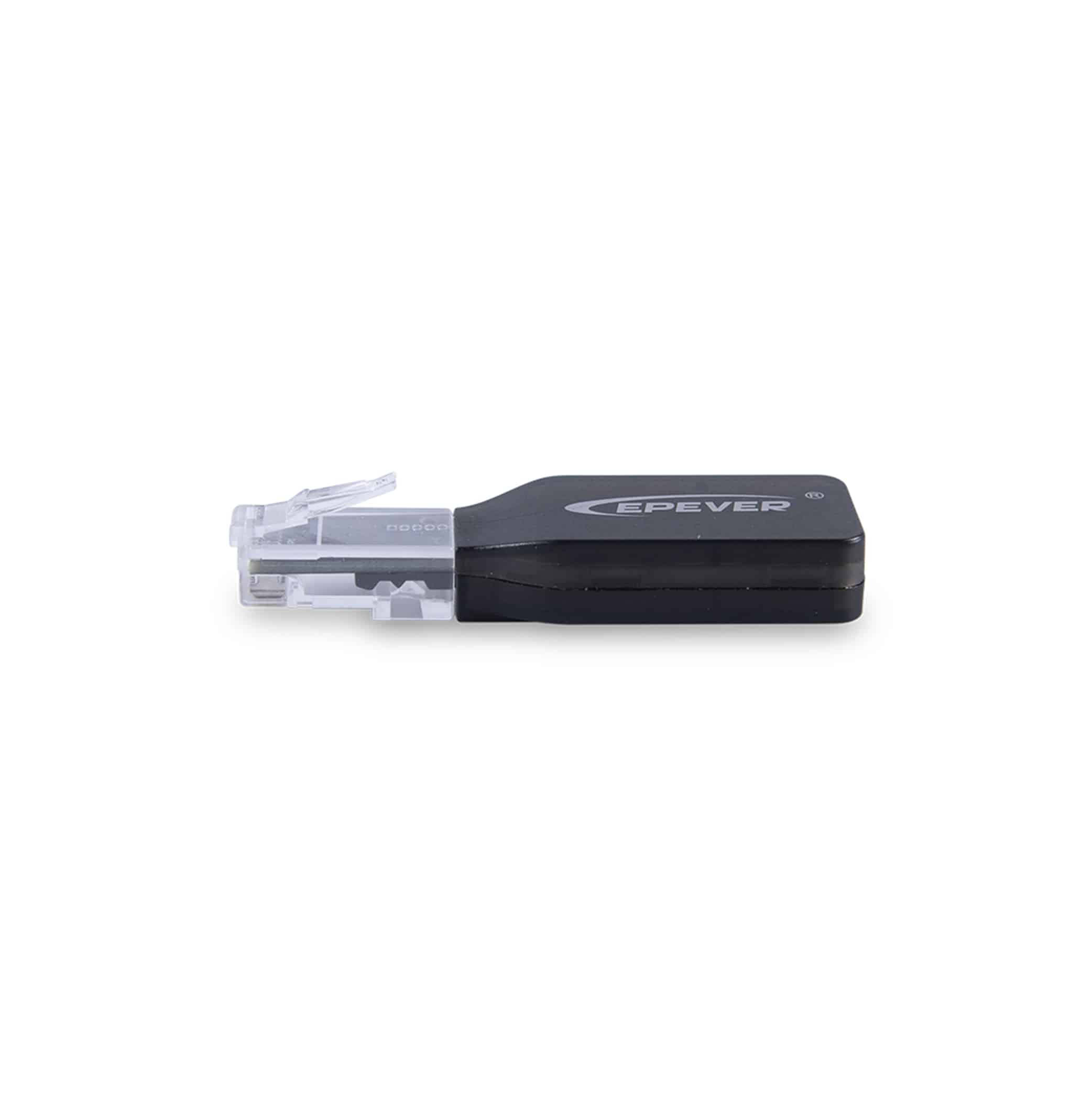

EPEVER BLE RJ45 D

Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, EPEVER BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant
EPEVER BLE RJ45 D

Configure your model

Enclosure
Working Voltage
Communication Method

Select every option to reveal the matching model.

Quantity
Delivery will be calculated at checkout

Frequently Bought Together

Recommended combinations will appear here.

Specifications

Working Voltage
5V± 0.5V (Powered by RJ45 port)
Power Consumption
Average: 5V@10mA; Peak: 5V@60mA
Communication Distance
≤ 10m
Work Temperature
-20℃~70℃
Enclosure
IP30
Net Weight
8.0g
Serial Port Baud Rate
115200bps
Communication Method
RS485 to Bluetooth
Connection Port
RJ45
Bluetooth Protocol
Bluetooth 5.0
Dimension (l X W X H)
63mm x 19mm x 13.8mm
