ELS Series (220/230/240VAC) 3K-6K Residential Hybrid Inverter

Versatile Power Solution with ELS Series Residential Hybrid Inverter The ELS Series Residential Hybrid Inverter is designed to provide a flexible and reliable power solution for modern homes. It supports multiple charging options, including utility power, generators, and solar energy, ensuring continuous power supply under any circumstances. Seamless Power Management and Energy Savings This series offers versatile power supply modes, including grid bypass, off-grid operation, and on-grid power feeding, allowing you to optimize energy usage according to your needs. With intelligent energy management, it powers your home, stores excess solar energy for later use, and exports surplus power to the grid, significantly reducing electricity costs and dependency on the grid. Efficient, Flexible, and Reliable Available in models ranging from 3K to 6K (ELS3K, ELS3K6, ELS4K, ELS4K6, ELS5K, ELS6K), the ELS Series Residential Hybrid Inverter provides high efficiency and flexible battery compatibility with Lithium and Lead-Acid batteries. Whether you need backup power during outages or want to maximize solar energy utilization, this inverter delivers a reliable and cost-effective solution.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant

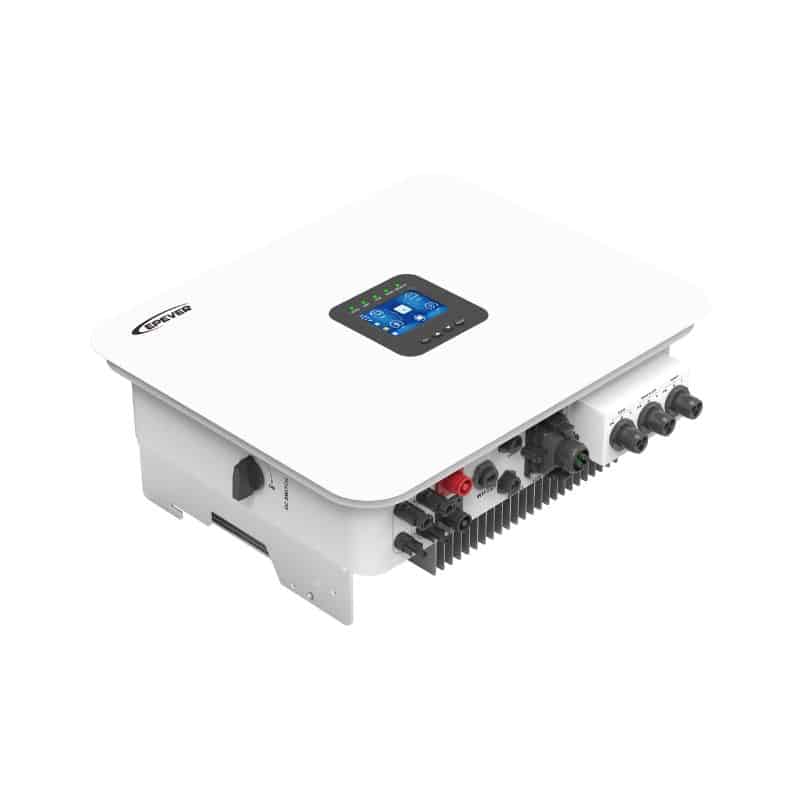

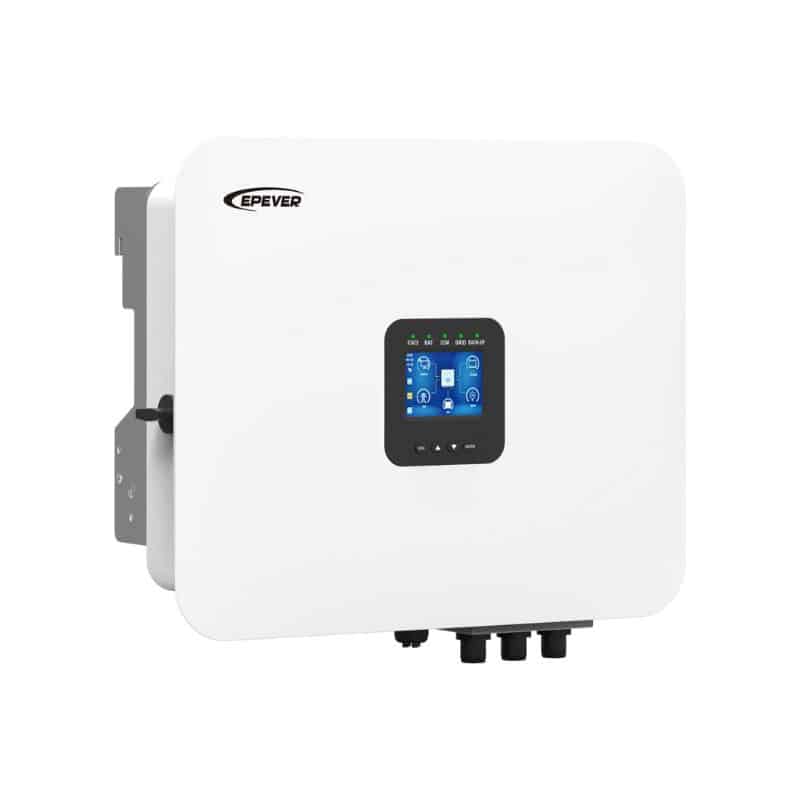

ELS LCD-1

Configure your model

Grid Type
Max Output Apparent Power (on-Grid)
Max PV Input Voltage
Max PV Input Power
Number Of Mppts
Inverter Output Voltage
Max PV Input Current Per MPPT
Battery Voltage Range
Max Continuous Charging And Discharging Current
Rated Output Power (off-Grid)
Output Voltage

Select every option to reveal the matching model.

Specifications

Model: ELS6K
Battery Input Parameters
Rated Battery Voltage (V)
48
Battery Type
Lithium / Lead-acid
Max Charging and Discharge Current (A)
120
Battery Charging Mode
3-stage charging or BMS
Battery Voltage Range (V)
42-63
PV Input Parameters
Max Input Power (W)
9000
Rated Input Voltage (V)
360
MPPT Voltage Range (V)
100-550
Max Short Circuit Current per MPPT (A)
19.2
Max Input Voltage (V)
580
Max Input Current per MPPT (A)
16
Start-up Voltage (V)
100
Number of MPPTs / Strings per MPPT
1/2
AC Output Parameters (On-grid)
Max Output Current (A)
28.6
Rated Output Voltage (V)
230
Load Power Factor
0.99 (Adjustable from 0.8 leading to 0.8 lagging)
Max Output Power (On-grid) (VA)
6600
Max Input Current (A)
55
Rated Output Frequency (Hz)
50
THDi (Total Harmonic Distortion) @ Rated Output Power
<3%
AC Output Parameters (Off-grid)
Switch Time
<10ms
THDv (Total Harmonic Voltage Distortion) @Linear loads
<3%
Peak Power (VA), Time (s)
1.5* Rated, 60s
Rated Output Voltage (V)
230
Rated Output Power (Off-grid) (VA)
6000
Rated Output Current (A)
26.1
Overload Power (VA), Time (s)
1.25* Rated, 300s
Rated Output Frequency (Hz)
50/60 (±0.5%)
General parameters
SPD Protections
DC Type II / AC Type III
Maximum Working Altitude
4,000m (> 2,000m derating)
Cooling Method
Natural
Monitoring Method
WiFi / Bluetooth
Standby Losses (W)
<10
Ingress Protection Rating
IP65 (Dustproof and Waterproof)
Protections
PV reverse polarity protection PV insulation detection Grid monitoring protection AC Overcurrent Protection Over temperature protection Anti-islanding Protection Residual Current Monitoring
Generator Auto Start-up
2 Wire Start
Communication with BMS
RS485/CAN
Dimension (W × H × D) (mm)
558.1 × 455.1 × 222.5

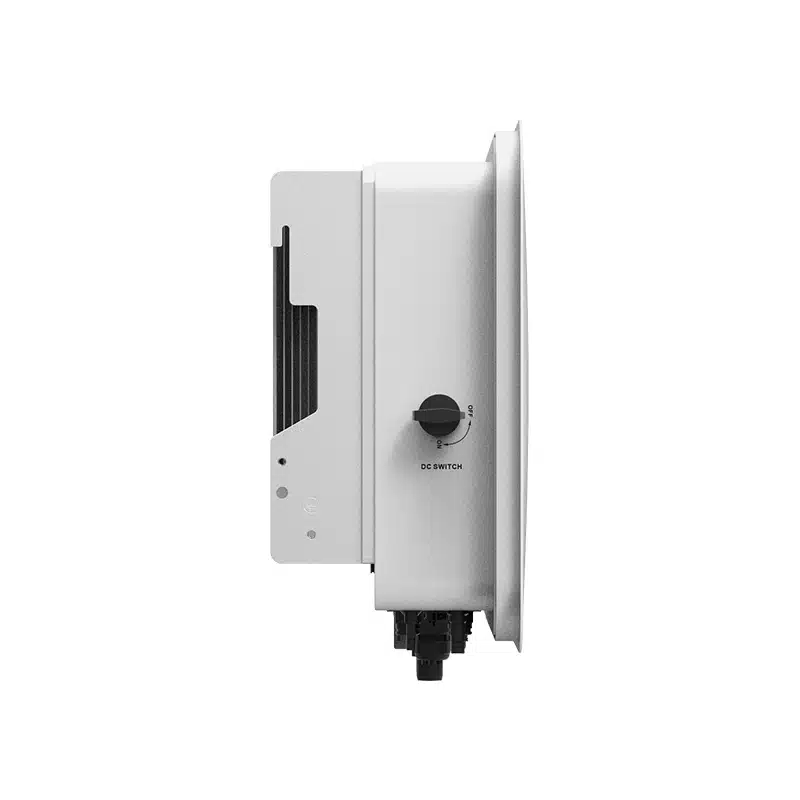

DC Switch
Included
AFCI
Optional
Working Temperature Range
-30℃ ~ +60℃ (> 45℃ derating)
Relative Humidity
0%~95% (N.C)
Communication with Meter
RS485
Noise Emission (dB)
< 25
Topology
High-Frequency Isolation (Battery)
RSD Rapid Shutdown
Optional
User Interface
LED & APP
Net Weight (kg)
28.1
Mounting Method
Wall Mounted
Efficiency
Maximum Efficiency
98%
European Efficiency
97.5%
Max. Battery to AC Efficiency
94.6%
MPPT Efficiency
99.9%

Highlights

  • Optimized Operation: Natural Cooling, Maintenance-free, Ultra-quiet
  • Superior Efficiency: Max. MPPT Tracking Efficiency: 99.9%; Max. PV Conversion Efficiency: 97.6%; Battery Charge/Discharge Efficiency: 94.6%
  • Protection and Durability: IP65; Overload Capability: Tested 1.5x rated power overload for 60 seconds; Continuous Max. Charge/Discharge Current: 120A
  • Flexibility and Connectivity: PV Power Oversize: Max. input up to 1.5x rated power; Dedicated Port: For generator connection, smart load management, or AC coupling; Single-Phase Parallel Connections: Supports up to 6 pcs
  • User Experience: Smart APP: User-friendly operation and monitoring; UPS-level Switching <10ms ; Optional Modules: RSD, AFCI
