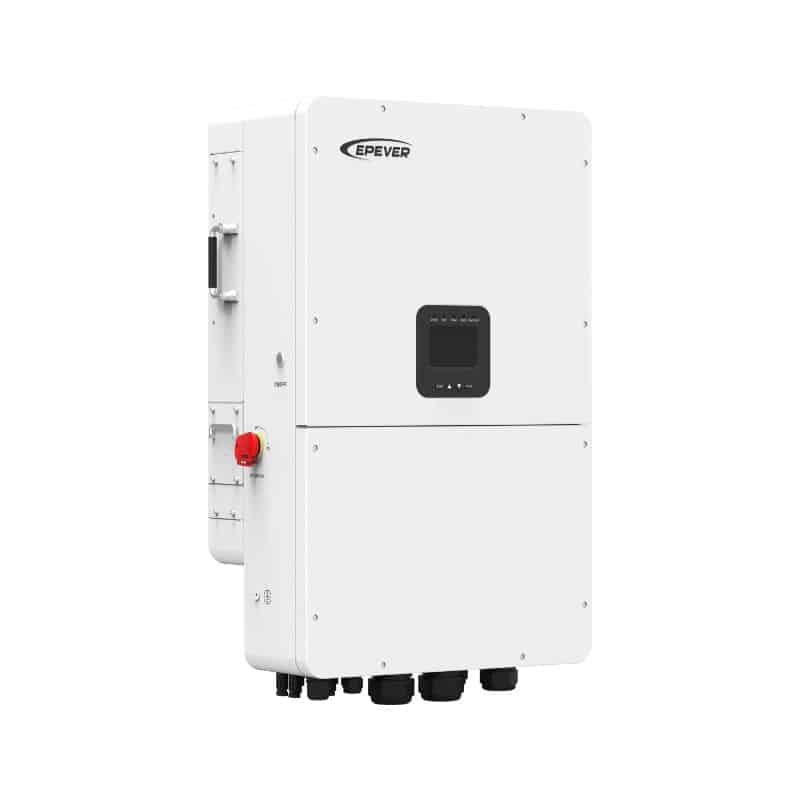

ELS Series (220/230/240VAC) 7.5K-15K Residential Hybrid Inverter
The ELS Series 7.5–15kW Solar Hybrid Inverter is designed for residential energy storage systems that require higher power capacity and flexible solar integration. It combines solar generation, battery storage, and grid connection in one intelligent solution for home energy management. With support for large photovoltaic arrays and high battery charging capability, the inverter enables efficient solar utilization and reliable household power supply. The ELS Series 7.5–15kW is suitable for homes with larger solar installations and higher electricity demand.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Grid Type
Max Output Apparent Power (on-Grid)
Max PV Input Voltage
Max PV Input Power
Number Of Mppts
Inverter Output Voltage
Max PV Input Current Per MPPT
Battery Voltage Range
Max Continuous Charging And Discharging Current
Rated Output Power (off-Grid)
Output Voltage
Select every option to reveal the matching model.
Specifications
Model: ELS15K
Battery (DC)
- Battery Type
- Lithium battery/Lead-acid battery
- Max. Charging and Discharging Current
- 275A
- Voltage Range
- 40V-60V
- Charging Rule
- 3-stage charging or BMS command
- Rated Voltage
- 48V/51.2V
PV Input(DC)
- Max. Input Power
- 22,500W
- Max. Input Voltage
- 500V
- Start-up Voltage
- 100V
- Rated Input Voltage
- 300V
- Max. Input Current per MPPT
- 20A
- MPPT Voltage Range
- 90V-450V
- Max. Short-Circuit Current per MPPT
- 27A
- Number of MPPTs/Number of Strings per MPPT
- 4/1
AC Output (On-grid)
- Max. Input Power From Grid
- 17,600VA
- Rated Grid Voltage
- 220/230/240V
- Max. Output Apparent Power
- 15,000VA
- Max. Input Current From Grid
- 80A
- Rated Output Power
- 15,000W
- Max. Output Current
- 68.2A
- THDi
- < 3%
- Power Factor
- 0.99 (Adjustable from ± 0.8 leading to 0.8 lagging)
- Rated Output Current From Grid
- 68.2A/65.2A/62.5A
- Rated Grid Frequency
- 50/60Hz
AC Output (Off-grid)
- Overload Power, Time
- 1.5* Rated Power, 10s
- THDu (@Linear Loads)
- < 3%
- Rated Output Power
- 15,000W
- Rated Output Frequency
- 50/60 (±0.5%)Hz
- Rated Output Voltage
- 220/230/240V
- Rated Output Current
- 68.2A/65.2A/62.5A
- Switch Time
- 10ms
Environmental Parameters
- Noise Emission
- < 60dB
- Operating Temperature
- -25℃ to +60℃ (> 45℃ Derating)
- Relative Humidity
- 0% to 95% (N.C.)
- Altitude
- 4,000m (> 2,000m Derating)
- Ingress Protection
- IP65
Mechanical Parameters
- Dimensions (L × W × H)(mm)
- 840 × 513 × 283
- Weight(kg)
- 52
Others
- Mounting Method
- Wall mounted
- Warranty
- 5 years
- Standby Losses
- < 30W
- Topology
- High-Frequency Isolation (Battery)
- Cooling Method
- Intelligent air cooling
- Communication with Portal
- WiFi/Bluetooth (External)
- Display
- LCD & APP
- Generator Auto Start-up
- 2 Wire start
- Communication with Meter
- RS485
- Communication with BMS
- RS485/CAN
Generator Input (AC)
- Rated Input Power
- 15,000W
- Rated Input Current
- 68.2A/65.2A/62.5A
- Rated Input Voltage
- 220/230/240V
- Rated Input Frequency
- 50/60Hz
Protection
- Rapid Shutdown (RSD)
- Optional
- Basic Protection
- PV Insulation Resistance Detection, Anti-islanding Protection, AC Over voltage Protection Residual Current Detection, AC Over current Protection, Over temperature protection PV Reverse Polarity Protection, AC Short Circuit Protection
- AFCI
- Optional
- DC Switch
- Yes
- SPD
- DC Type II/AC Type III
Efficiency
- Max. Discharging Efficiency
- 94.6%
- Max. Efficiency
- 97.6%
- European Efficiency
- 96.6%
Highlights
- Reliable Outdoor Operation: IP65 protection; Built-in Type II surge protection; Optional function: RSD, AFCI..
- High Performance: 150% PV oversizing capability; Max. PV input power: 22500W 4 MPPTs; 20A per string
- High-power output and rapid energy storage; Max. charge/discharge current: 275A Overload capability: 200% for 10s
- Smart Power Management: Smart interface: ① Generator connection; ② Load connection; ③ AC coupling with grid-tied PV inverters UPS-level switching <10 ms
- Parallel Capability: ① Up to 6 units in parallel (On-grid & Off-grid); ② Multi-battery parallel support: Independent or shared battery bank; Zero export function; Feed-in power limit
- User-Friendly Monitoring: Standard color LCD display; Optional WiFi/GPRS for local and remote operation
