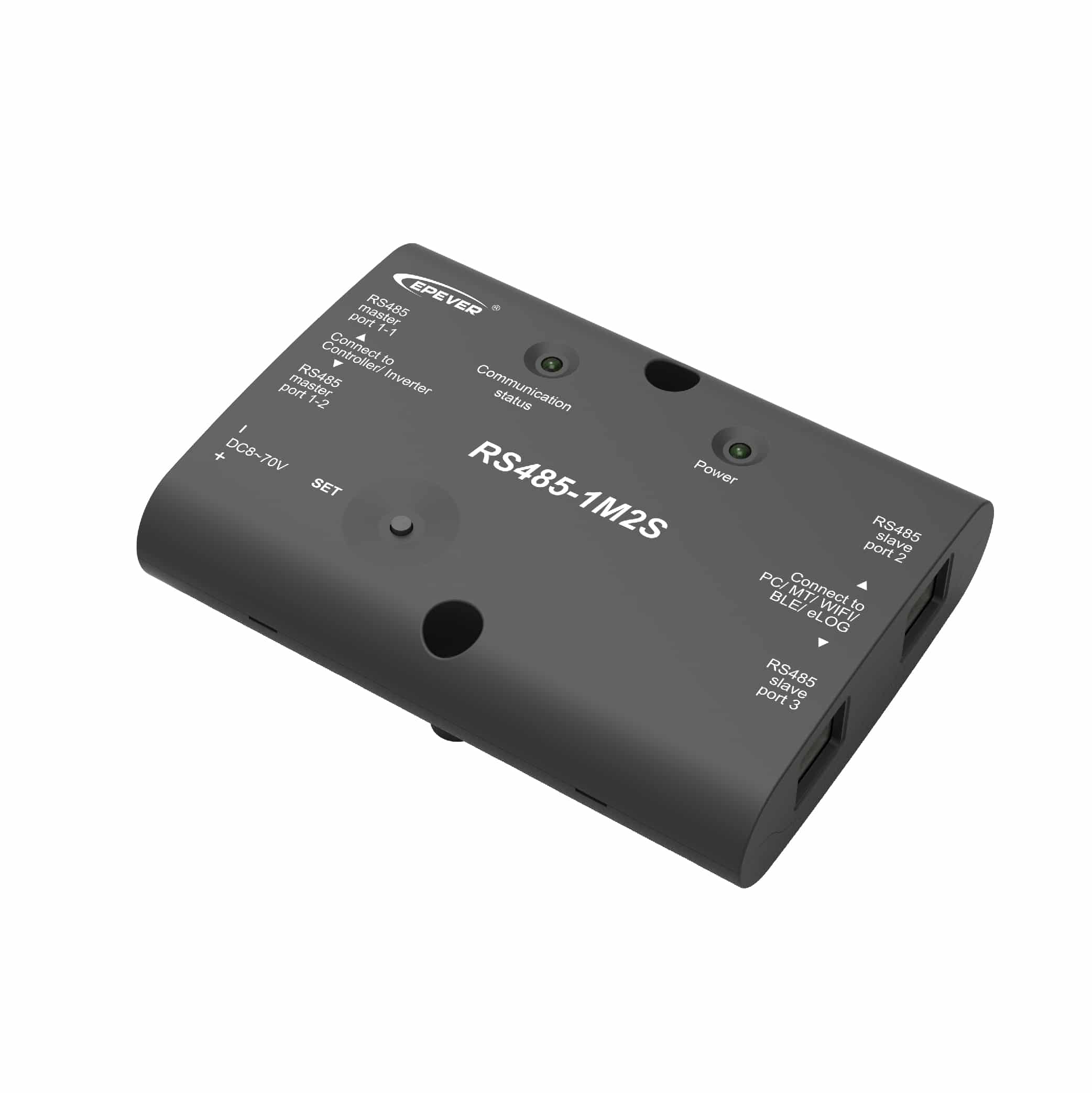

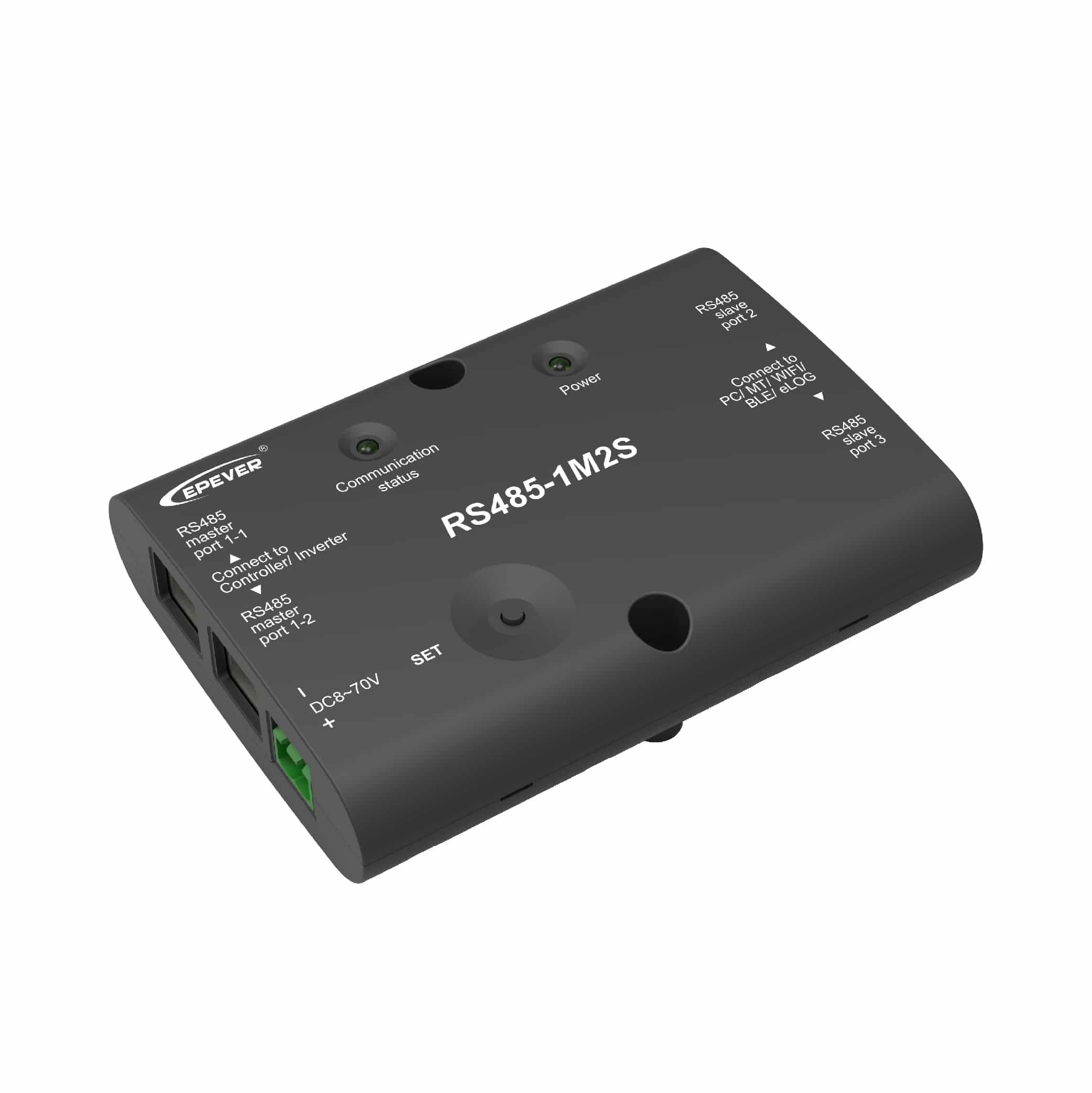

RS485-1M2S Extension Module
The RS485-1M2S is an optional accessory that can extend the RS485 communication port of the EPEVER solar controller, inverter, and inverter/charger. This modular adopting standard Modbus protocol helps users monitor the working status and program parameters for multi devices simultaneously.
- 2-year warranty
- Worldwide support
- Certified & compliant

Configure your model
Enclosure
Power Supply
Communication Type
Select every option to reveal the matching model.
Quantity
Delivery will be calculated at checkout
Frequently Bought Together
Recommended combinations will appear here.
Specifications
- Compatible Products
- Solar controller/inverter
- Communication Baud Rate
- 115200 (Default) 9600
- Power Supply
- 5VDC(Power supply by the communication port of solar controller/inverter)
- Working Environment Temperature
- -30℃~50℃
- Auxiliary Power Supply
- 8~70VDC(Auxiliary power supply by the battery)
- Storage Temperature
- -30℃~80℃
- Enclosure
- IP30
- Power Consumption
- 0.3W
- Dimension
- 121* 88* 27.5mm
- Mounting Dimension
- 69mm
- Mounting Hole Size
- Φ4.8
- Net Weight
- 121.8g
Highlights
- Data interaction between the solar controller, inverter, inverter/charger, and monitoring devices
- Standard Modbus communication protocol
- One key to set the communication baud rate 9600/115200
- LED indicating working status
