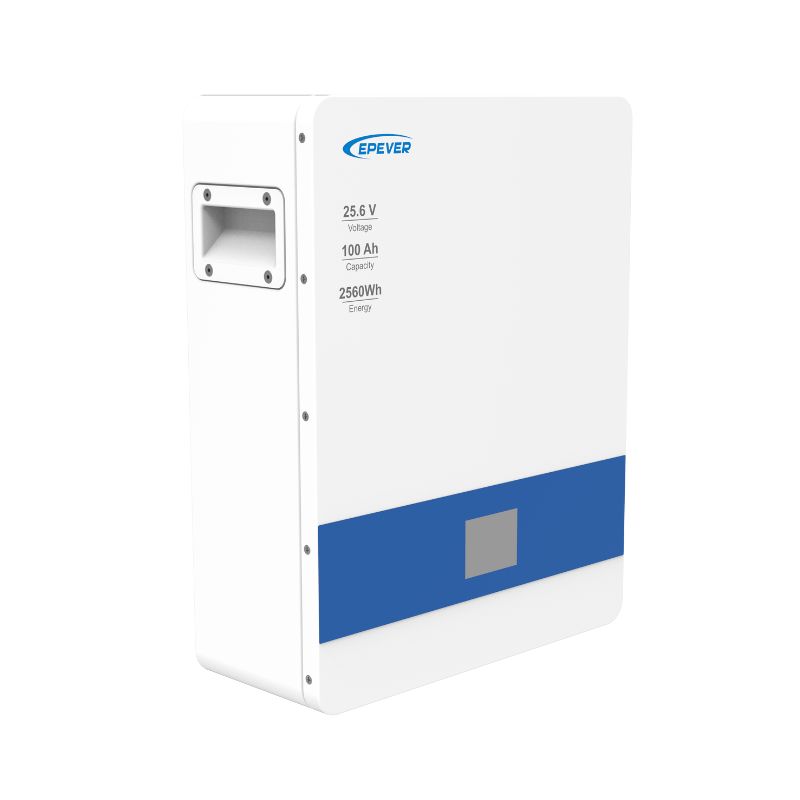

25.6V 100Ah Lithium Battery
The 25.6V 100Ah LiFePO4 battery is designed for reliable, maintenance-free energy storage in solar, backup, and off-grid systems. Built with A-grade prismatic LiFePO4 cells, it delivers over 6000 cycles at 80% DOD (25°C) for long service life. Its IP65-rated metal enclosure provides excellent heat dissipation and protection against dust and water, making it suitable for harsh environments. The integrated BMS (Battery Management System) offers comprehensive protection against over-charge, over-discharge, over-temperature, over-current, and short circuits, ensuring safety and stable performance. With RS485 and CAN communication ports, the battery enables real-time monitoring and seamless integration with compatible inverters. The clear LCD display shows SOC, voltage, current, and temperature data at a glance. Installation is easy thanks to the wall-mounted design and modular scalability, allowing up to 2 batteries in series or 4 in parallel to meet larger capacity needs.
- 2-year warranty
- Worldwide support
- Certified & compliant
LFP2.56KWH25.6V-P65H2
Specifications
- Nominal Capacity
- 100Ah
- Cycle Life
- ＞6000 cycles (25°C, 0.5C ) 80% DOD
- Ingress Protection
- IP65
- Product Certifications
- UN38.3, MSDS, IEC62619

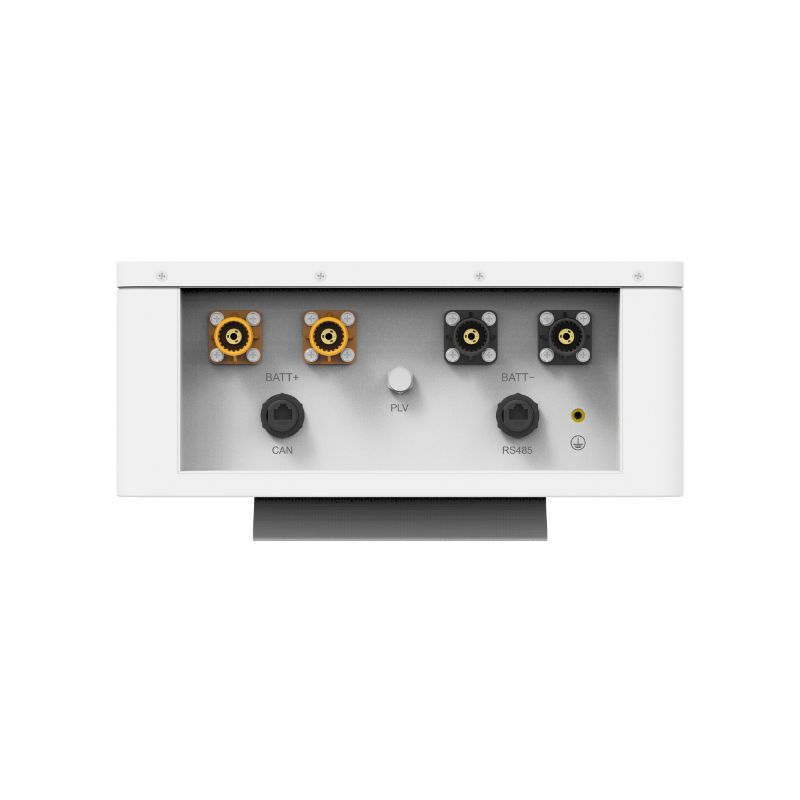

- Communication
- RS485 CAN
- Nominal Voltage
- 25.6V
- Display
- LCD
- Battery Technology Type
- Lithium
- Terminal
- M8
Highlights
- A grade brand new prismatic LiFePO4 cells
- Cell balance function
- ＞6000 cycles @80% DOD(25℃, 0.5C )
- Metal Case, excellent heat dissipation, more safety
- Over charge, over discharge, over temperature, low temperature, over current, and short circuit protection
- Certificate: UN38.3, MSDS IEC62619
- Easy installation and maintenance-free
- Max 2 battery packs in series/Max 4 battery packs in parallel
