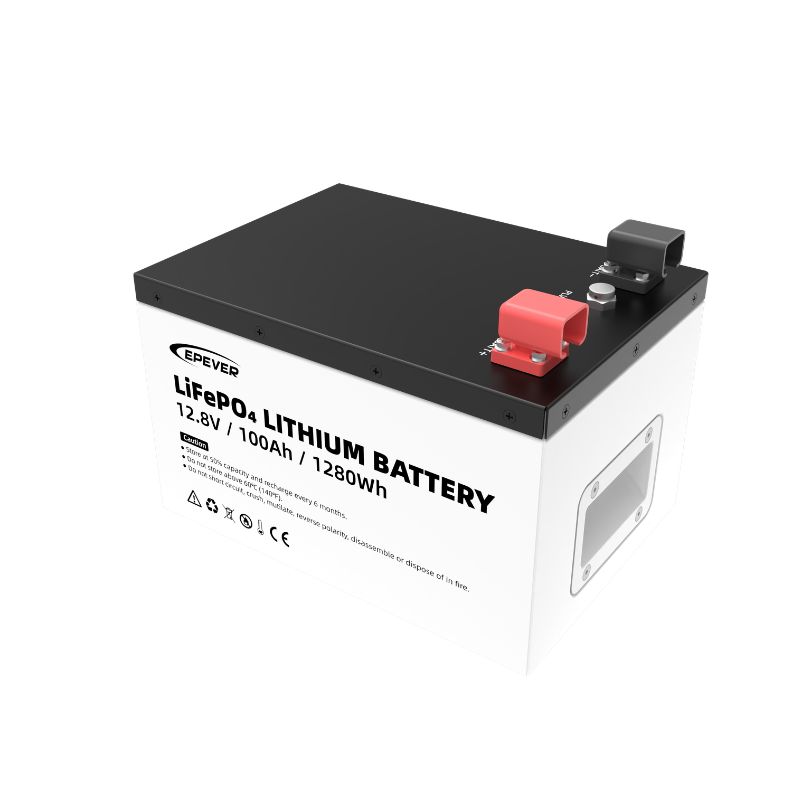

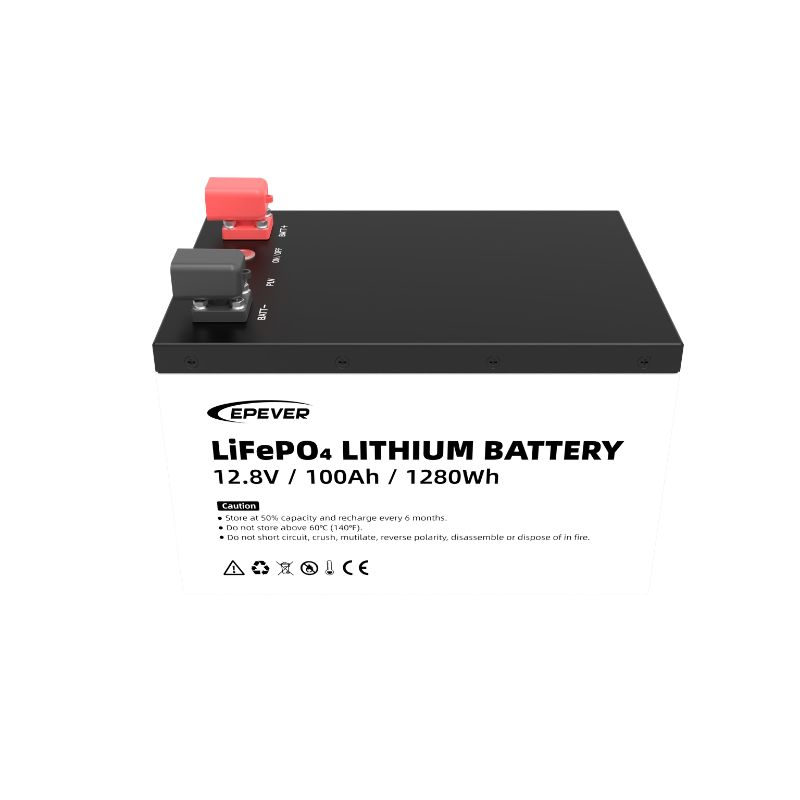

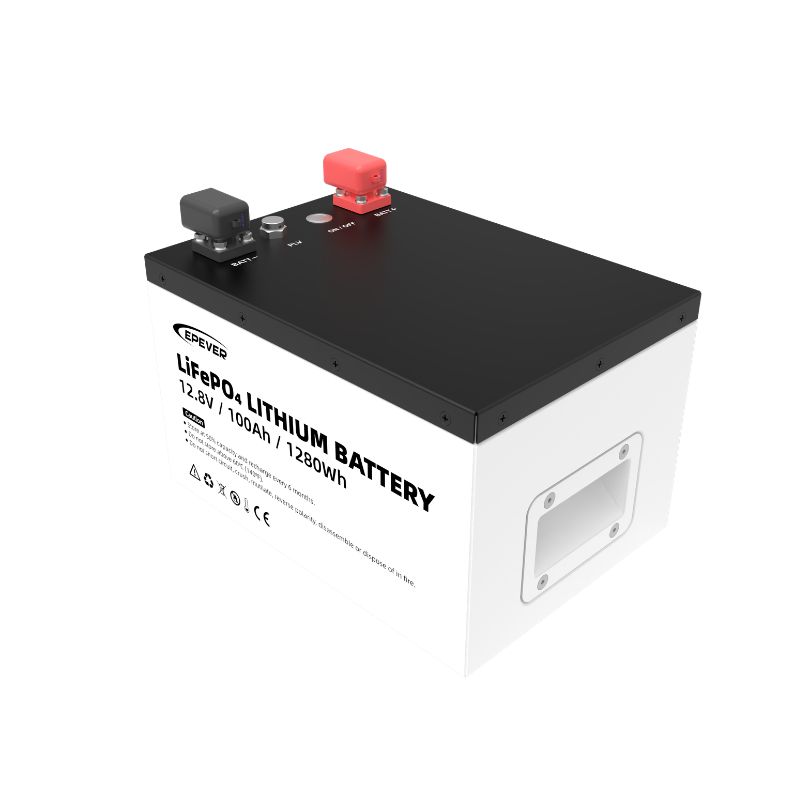

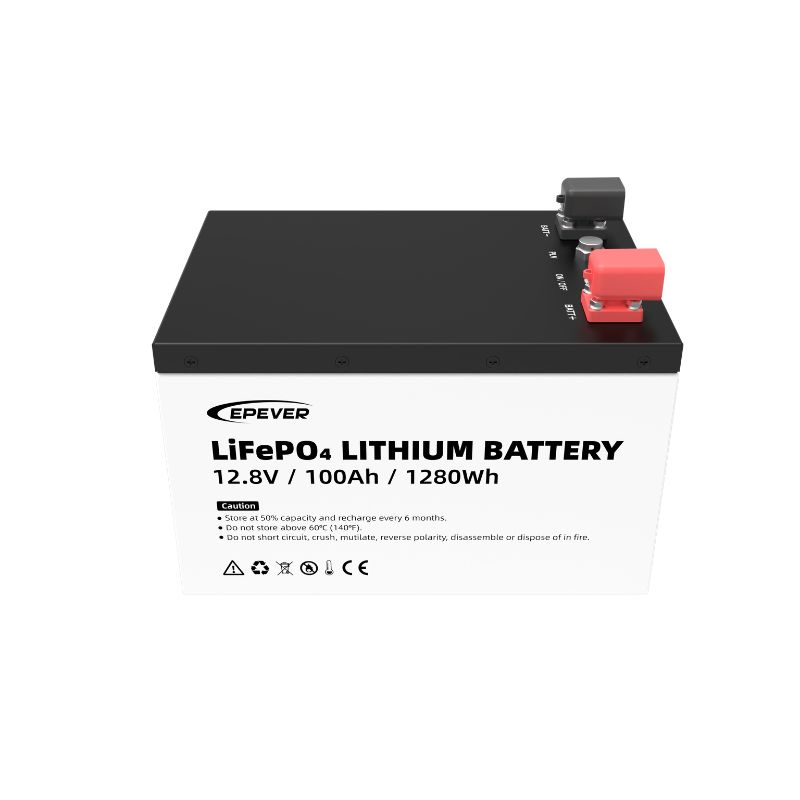

12.8V 100Ah Lithium Battery (Standard)
The EPEVER LiM12100 is a 12.8V 100Ah LiFePO4 battery designed for reliable energy storage applications. Featuring a durable metal case with IP65 protection and a built-in hardware BMS, it provides enhanced safety, heat dissipation, and stable performance in various installation environments. Built with high-quality LiFePO4 cells, the LiM12100 supports up to 100A charge and discharge current, over 6000 cycles at 80% DOD, and flexible system expansion with up to 4 batteries connected in series or parallel. The integrated BMS provides protection against overcharge, over-discharge, over-current, short circuit, and temperature-related risks. Certifications including UN38.3, MSDS, and IEC62619 ensure safe and dependable operation.
- 2-year warranty
- Worldwide support
- Certified & compliant
LiM12100
Specifications
- Nominal Capacity
- 100Ah
- Recommend Discharge Current
- 50A
- Cycle Life
- ＞6000 cycles (25°C, 0.5C ) 80% DOD
- Ingress Protection
- IP65
- Product Certifications
- UN38.3, MSDS, IEC62619
- Communication
- No Communication
- Nominal Voltage
- 12.8V
- Display
- No Display
- Battery Technology Type
- Lithium
- Terminal
- M6
Highlights
- A-grade brand-new prismatic LiFePO4 cells
- Cell balance function
- >6000 cycles @ 80% DOD(25℃, 0.5C )
- Metal Case, excellent heat dissipation, more safety
- Overcharge, overdischarge, overtemperature, low temperature, overcurrent, and short circuit protection
- Certificate: UN38.3, MSDS IEC62619
- Max 4 battery packs can be connected in series/parallel
